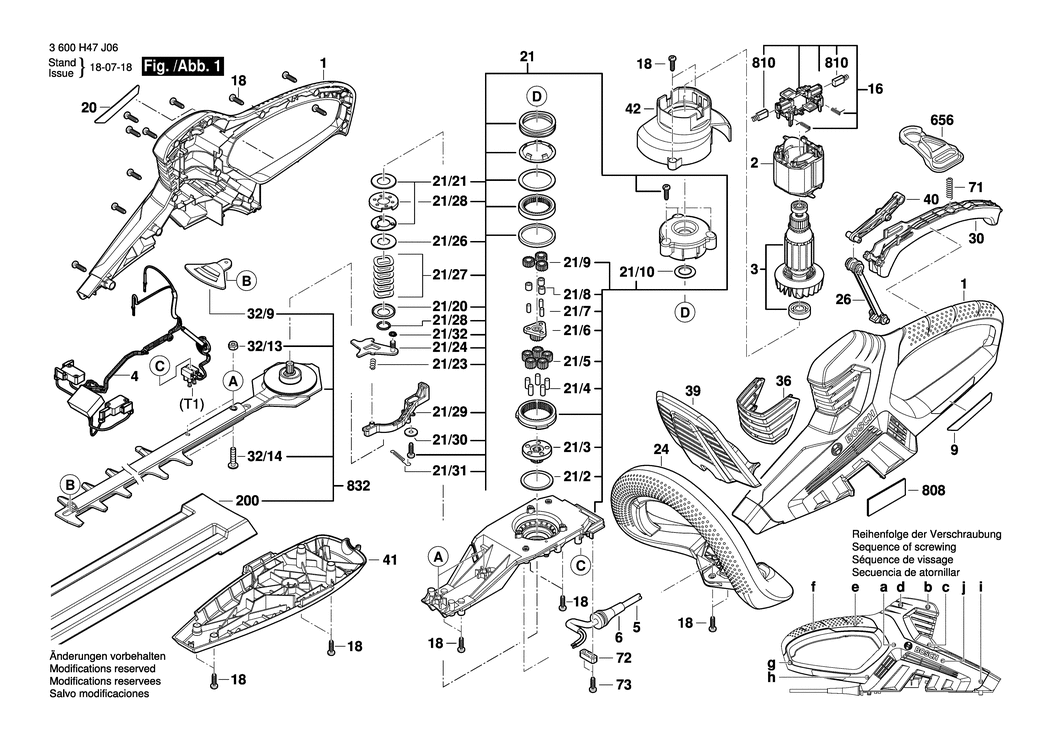

1 - HOUSING SECTION
BSD-2609007530.A7
2609007530
|
£31.64
|
£37.97
|
|
|
2 - FIELD 220-240V
BSD-2609005073.A50
2609005073
|
£18.96
|
£22.75
|
|
|
3 - ARMATURE 220-240V
BSD-2609007254.A27
2609007254
|
£37.27
|
£44.72
|
|
|
4 - ELECTRONIC MODULE
BSD-1600A014RW.A9
1600A014RW
|
-
|
|
|
|
5 - POWER SUPPLY CORD CH 0.4m 2 x 1.0mm H05 VV-F
BSD-1604460437.A36
1604460437
|
£7.36
|
£8.83
|
|
|
6 - GROMMET
BSD-2609002019.A23
2609002019
|
£2.61
|
£3.13
|
|
|
9 - MANUFACTURER'S NAMEPLATE AHS 65-34
BSD-2609005478.A5
2609005478
|
£2.61
|
£3.13
|
|
|
16 - BRUSH PLATE
BSD-1600A012AZ.A113
1600A012AZ
|
£11.30
|
£13.56
|
|
|
18 - SCREW 4x16
BSD-2603490022.A2859
2603490022
|
£1.75
|
£2.10
|
|
|
20 - WARNING LABEL
BSD-2609005883.A12
2609005883
|
£2.61
|
£3.13
|
|
|
21 - GEAR BOX
BSD-1600A00P4P.A19
1600A00P4P
|
£63.50
|
£76.20
|
|
|
21/2 - SHIM
BSD-2609007448.A36
2609007448
|
£1.75
|
£2.10
|
|
|
21/3 - PLANETARY-GEAR CARRIER
BSD-2609007449.A2
2609007449
|
£4.26
|
£5.11
|
|
|
21/4 - BOLT
BSD-2609005020.A45
2609005020
|
£1.75
|
£2.10
|
|
|
21/5 - CYLINDRICAL GEAR
BSD-2609005012.A14
2609005012
|
£1.75
|
£2.10
|
|
|
21/6 - PLANETARY-GEAR CARRIER
BSD-2609005016.A45
2609005016
|
£1.95
|
£2.34
|
|
|
21/7 - BOLT
BSD-2609005017.A14
2609005017
|
£1.32
|
£1.58
|
|
|
21/8 - NEEDLE-ROLLER BEARING
BSD-2609005318.A56
2609005318
|
£1.75
|
£2.10
|
|
|
21/9 - CYLINDRICAL GEAR
BSD-2609005011.A45
2609005011
|
£1.32
|
£1.58
|
|
|
21/10 - SHIM
BSD-2609005021.A14
2609005021
|
£1.75
|
£2.10
|
|
|
21/20 - WASHER
BSD-2609007450.A36
2609007450
|
£1.75
|
£2.10
|
|
|
21/21 - BRAKE DISC
BSD-2609007451.A2
2609007451
|
£2.80
|
£3.36
|
|
|
21/23 - COMPRESSION SPRING
BSD-2609007216.A28
2609007216
|
£1.75
|
£2.10
|
|
|
21/24 - PAWL
BSD-1600A00P30.A19
1600A00P30
|
-
|
|
|
|
21/26 - FRICTION WASHER
BSD-2609007453.A36
2609007453
|
£1.75
|
£2.10
|
|
|
21/27 - BRAKE SPRING
BSD-2609007454.A2
2609007454
|
£1.75
|
£2.10
|
|
|
21/28 - RETAINING SNAP RING
BSD-2609007455.A36
2609007455
|
£1.75
|
£2.10
|
|
|
21/29 - LEVER
BSD-2609007141.A0
2609007141
|
£1.75
|
£2.10
|
|
|
21/30 - WASHER
BSD-2609007460.A2
2609007460
|
£1.75
|
£2.10
|
|
|
21/31 - EXTENSION SPRING
BSD-2609007531.A2
2609007531
|
£1.75
|
£2.10
|
|
|
21/32 - SPRING RETAINING RING
BSD-2609007572.A36
2609007572
|
£1.75
|
£2.10
|
|
|
24 - HANDLE
BSD-2609007139.A38
2609007139
|
£31.64
|
£37.97
|
|
|
26 - LEVER
BSD-2609007159.A38
2609007159
|
£1.75
|
£2.10
|
|
|
30 - SWITCH SEGMENT
BSD-2609007413.A9
2609007413
|
£2.61
|
£3.13
|
|
|
32/9 - PROTECTOR
BSD-2609005045.A44
2609005045
|
£2.80
|
£3.36
|
|
|
32/13 - BUSHING
BSD-160030010N.A4
160030010N
|
£1.75
|
£2.10
|
|
|
32/14 - TORX OVAL-HEAD SCREW
BSD-2609005695.A11
2609005695
|
£1.75
|
£2.10
|
|
|
36 - TRIM PLATE
BSD-2609004997.A2
2609004997
|
£1.66
|
£1.99
|
|
|
39 - GUARD SEGMENT
BSD-2609005047.A14
2609005047
|
£5.30
|
£6.36
|
|
|
40 - LEVER
BSD-2609007234.A10
2609007234
|
£1.75
|
£2.10
|
|
|
41 - COVER
BSD-2609004994.A45
2609004994
|
£5.58
|
£6.70
|
|
|
42 - BAFFLE
BSD-2609004996.A14
2609004996
|
£1.75
|
£2.10
|
|
|
71 - COMPRESSION SPRING
BSD-1604612015.A16
1604612015
|
£2.61
|
£3.13
|
|
|
72 - CABLE CLIP
BSD-2601035001.A3040
2601035001
|
£1.75
|
£2.10
|
|
|
73 - SCREW 4x16
BSD-2603490022.A2860
2603490022
|
£1.75
|
£2.10
|
|
|
200 - KNIFE GUARD
BSD-2609005517.A3
2609005517
|
£16.41
|
£19.69
|
|
|
656 - STRAIN-RELIEF CLAMP
BSD-3601398000.A31
3601398000
|
£5.30
|
£6.36
|
|
|
808 - NAMEPLATE
BSD-160111A6GN.A0
160111A6GN
|
-
|
|
|
|
810 - CARBON-BRUSH SET
BSD-2604321925.A152
2604321925
|
£8.67
|
£10.41
|
|
|
832 - BLADE 65 cm
BSD-2609005915.A3
2609005915
|
£81.81
|
£98.17
|
|
