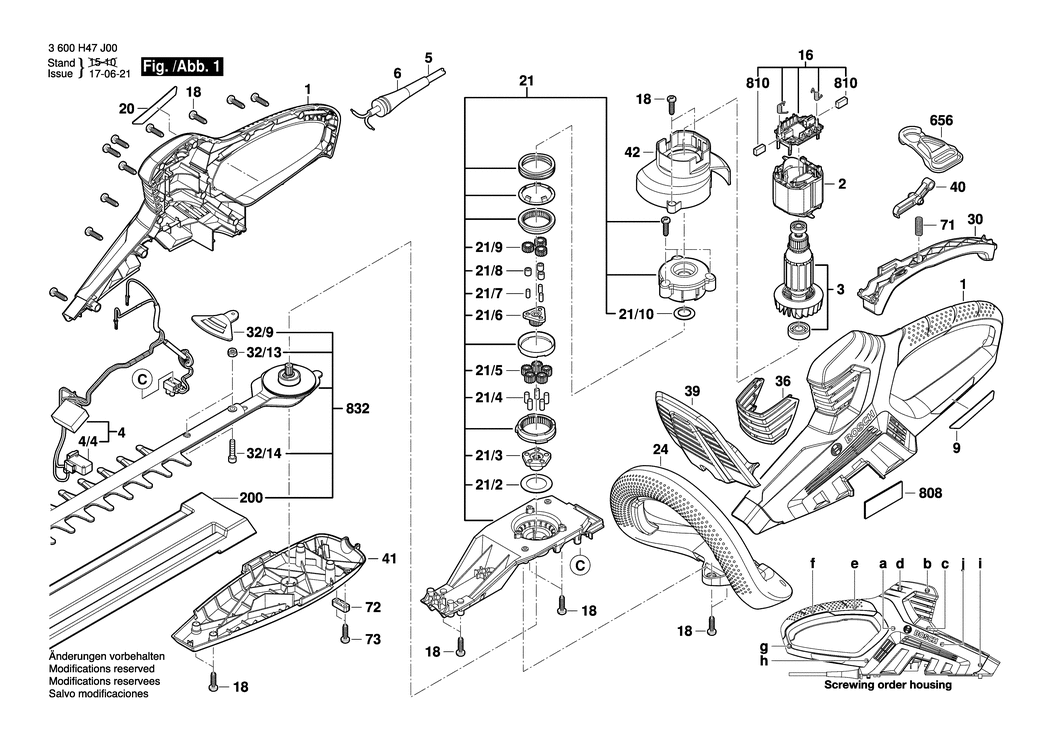

1 - HOUSING SECTION
BSD-2609004992.A5
2609004992
|
£28.59
|
£34.31
|
|
|
2 - FIELD 220-240V
BSD-2609005073.A48
2609005073
|
£18.96
|
£22.75
|
|
|
3 - ARMATURE 220-240V
BSD-2609005074.A5
2609005074
|
£37.27
|
£44.72
|
|
|
4 - ELECTRONIC MODULE
BSD-2609005076.A15
2609005076
|
£57.05
|
£68.46
|
|
|
4/4 - SWITCH
BSD-2609006801.A4
2609006801
|
-
|
|
|
|
5 - POWER SUPPLY CORD CH 0.4m 2 x 1.0mm H05 VV-F
BSD-1604460437.A37
1604460437
|
£7.72
|
£9.27
|
|
|
6 - GROMMET dia6.4-dia7.2x76 MM
BSD-2600703017.A308
2600703017
|
£2.74
|
£3.29
|
|
|
9 - MANUFACTURER'S NAMEPLATE AHS 65-34
BSD-2609005478.A7
2609005478
|
£2.74
|
£3.29
|
|
|
16 - BRUSH HOLDER
BSD-2609005884.A1
2609005884
|
£11.30
|
£13.56
|
|
|
18 - SCREW 4x16
BSD-2603490022.A2863
2603490022
|
£1.84
|
£2.21
|
|
|
20 - WARNING LABEL
BSD-2609005883.A10
2609005883
|
£2.74
|
£3.29
|
|
|
21 - GEAR BOX
BSD-2609005008.A5
2609005008
|
£47.95
|
£57.54
|
|
|
21/2 - SHIM
BSD-2609005018.A15
2609005018
|
£1.75
|
£2.10
|
|
|
21/3 - PLANETARY-GEAR CARRIER
BSD-2609005019.A5
2609005019
|
£4.48
|
£5.37
|
|
|
21/4 - BOLT
BSD-2609005020.A43
2609005020
|
£1.75
|
£2.10
|
|
|
21/5 - CYLINDRICAL GEAR
BSD-2609005012.A16
2609005012
|
£1.75
|
£2.10
|
|
|
21/6 - PLANETARY-GEAR CARRIER
BSD-2609005016.A43
2609005016
|
£2.05
|
£2.46
|
|
|
21/7 - BOLT
BSD-2609005017.A16
2609005017
|
£1.38
|
£1.66
|
|
|
21/8 - NEEDLE-ROLLER BEARING
BSD-2609005318.A54
2609005318
|
£1.84
|
£2.21
|
|
|
21/9 - CYLINDRICAL GEAR
BSD-2609005011.A43
2609005011
|
£1.38
|
£1.66
|
|
|
21/10 - SHIM
BSD-2609005021.A16
2609005021
|
£1.84
|
£2.21
|
|
|
24 - HANDLE
BSD-2609005132.A5
2609005132
|
£31.64
|
£37.97
|
|
|
30 - SWITCH SEGMENT
BSD-2609005006.A5
2609005006
|
£2.74
|
£3.29
|
|
|
32/9 - PROTECTOR
BSD-2609005045.A42
2609005045
|
£2.94
|
£3.53
|
|
|
32/13 - BUSHING
BSD-160030010N.A3
160030010N
|
£1.75
|
£2.10
|
|
|
32/14 - TORX OVAL-HEAD SCREW
BSD-2609005695.A13
2609005695
|
£1.75
|
£2.10
|
|
|
36 - TRIM PLATE
BSD-2609004997.A0
2609004997
|
£1.66
|
£1.99
|
|
|
39 - GUARD SEGMENT
BSD-2609005047.A16
2609005047
|
£5.30
|
£6.36
|
|
|
40 - LEVER
BSD-2609005007.A15
2609005007
|
£1.84
|
£2.21
|
|
|
41 - COVER
BSD-2609004994.A44
2609004994
|
£5.87
|
£7.04
|
|
|
42 - BAFFLE
BSD-2609004996.A15
2609004996
|
£1.84
|
£2.21
|
|
|
71 - COMPRESSION SPRING
BSD-2604610028.A89
2604610028
|
£1.84
|
£2.21
|
|
|
72 - CABLE CLIP
BSD-2601035001.A3041
2601035001
|
£1.84
|
£2.21
|
|
|
73 - SCREW 4x16
BSD-2603490022.A2858
2603490022
|
£1.84
|
£2.21
|
|
|
200 - KNIFE GUARD
BSD-2609005517.A4
2609005517
|
£16.41
|
£19.69
|
|
|
656 - STRAIN-RELIEF CLAMP
BSD-3601398000.A32
3601398000
|
£5.57
|
£6.68
|
|
|
808 - NAMEPLATE
BSD-160111A4DW.A0
160111A4DW
|
£2.74
|
£3.29
|
|
|
810 - CARBON-BRUSH SET
BSD-1607000CE3.A11
1607000CE3
|
-
|
|
|
|
832 - BLADE 65 cm
BSD-2609005915.A4
2609005915
|
£85.90
|
£103.08
|
|
