Bosch AHS 45-16 / 3600H47A01 / EU 230 Volt Spare Parts

Home Details Reviews Delivery

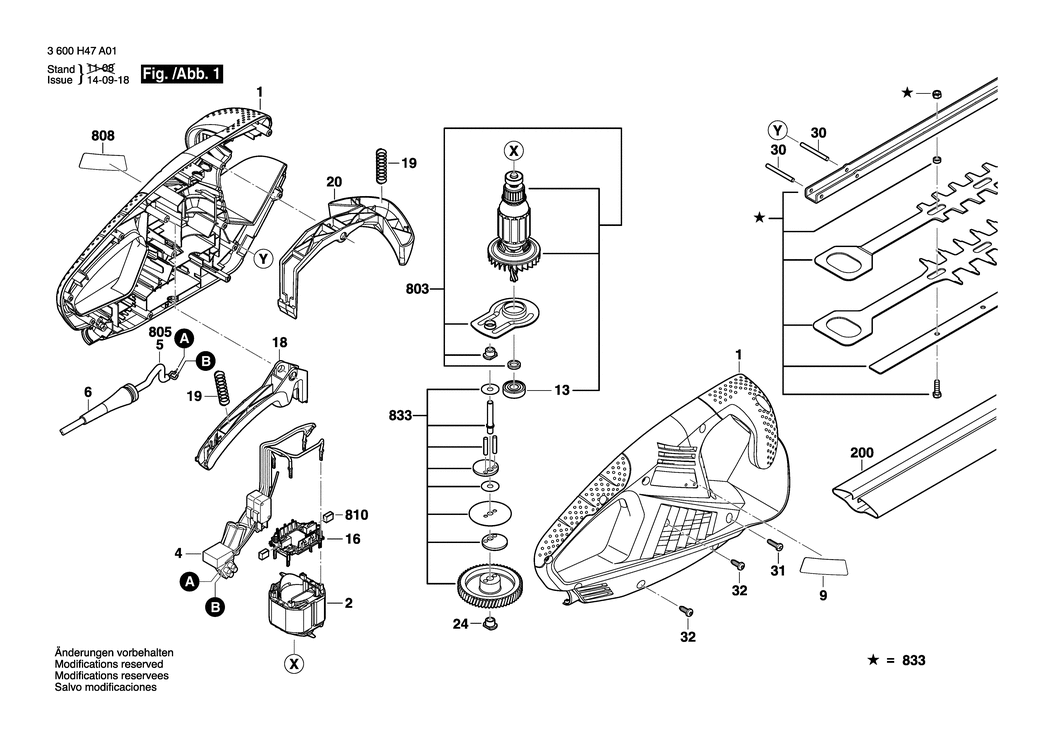

An exploded drawing and listing for the Bosch AHS 45-16 / 3600H47A01 / EU 230 Volt

	Ex VAT	Inc VAT
1 - HOUSING BSD-1619X06326.A0 1619X06326	-
2 - FIELD 220-240V BSD-1619X06317.A0 1619X06317	£14.72	£17.67
13 - GROOVE BALL BEARING 9x24x7 BSD-2600905021.A148 2600905021	£8.67	£10.41
4 - CABLE WIRING SET BSD-2609005219.A0 2609005219	£17.22	£20.67
6 - GROMMET dia6.4-dia7.2x76 MM BSD-2600703017.A323 2600703017	£2.74	£3.29
9 - MANUFACTURER'S NAMEPLATE AHS 45-16 BSD-2609004547.A0 2609004547	£2.74	£3.29
16 - BRUSH HOLDER BSD-1619X06331.A0 1619X06331	£11.87	£14.24
18 - SWITCH SEGMENT BSD-1619X06327.A0 1619X06327	£1.75	£2.10
19 - COMPRESSION SPRING BSD-2604610028.A121 2604610028	£1.84	£2.21
20 - SWITCH SEGMENT BSD-1619X06328.A0 1619X06328	£2.16	£2.59
24 - BUSHING BSD-2609004018.A10 2609004018	£1.84	£2.21
30 - STRAIGHT PIN BSD-1619X06392.A0 1619X06392	£1.84	£2.21
31 - SCREW 4x16 BSD-2603490022.A2778 2603490022	£1.84	£2.21
32 - SELF-CUTTING SCREW 4x19 MM BSD-F016T49429.A867 F016T49429	£1.84	£2.21
200 - KNIFE GUARD 45 cm BSD-2609004759.A1 2609004759	£14.91	£17.89
803 - ARMATURE 220-240V BSD-1619X06475.A0 1619X06475	-
805 - POWER SUPPLY CORD EU 0.46m 2 x 1.0mm H05 VV-F BSD-2604460255.A0 2604460255	£8.67	£10.41
808 - NAMEPLATE BSD-1619X06479.A0 1619X06479	-
810 - CARBON-BRUSH SET BSD-2609005200.A10 2609005200	£6.85	£8.22
833 - BLADE 45 cm BSD-2609004700.A2 2609004700	£52.15	£62.58

Attribute Name	Value
Brand	Bosch
