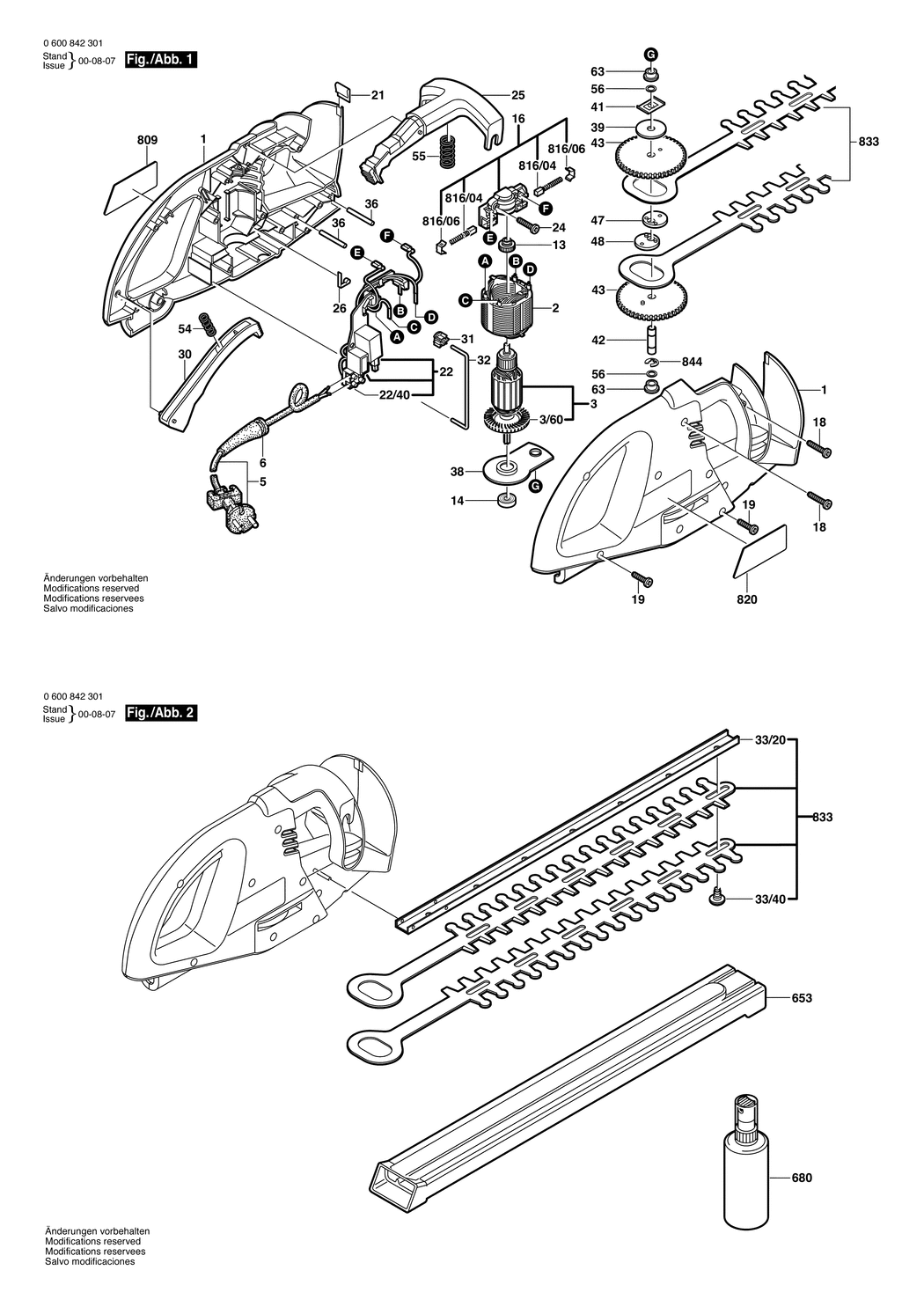

1 - HOUSING SECTION
BSD-2605104719.A8
2605104719
|
£37.27
|
£44.72
|
|
|
2 - FIELD 230-240V
BSD-2604220694.A2
2604220694
|
-
|
|
|
|
3 - ARMATURE 230-240V
BSD-2604011248.A2
2604011248
|
-
|
|
|
|
3/60 - FAN
BSD-2606610027.A78
2606610027
|
£2.80
|
£3.36
|
|
|
5 - POWER SUPPLY CORD EU 0.46m 2 x 1.0mm H05 VV-F
BSD-2604460255.A34
2604460255
|
£8.67
|
£10.41
|
|
|
6 - GROMMET dia6.4-dia7.2x76 MM
BSD-2600703017.A458
2600703017
|
£2.33
|
£2.80
|
|
|
13 - FLANGED BEARING
BSD-2605805004.A20
2605805004
|
£8.67
|
£10.41
|
|
|
14 - GROOVE BALL BEARING 9x24x7
BSD-2600905021.A41
2600905021
|
£8.67
|
£10.41
|
|
|
16 - BRUSH PLATE
BSD-2609992620.A15
2609992620
|
-
|
|
|
|
18 - TORX OVAL-HEAD SCREW 4x25
BSD-2603490024.A877
2603490024
|
£1.66
|
£1.99
|
|
|
19 - SCREW 4x16
BSD-2603490022.A2354
2603490022
|
£1.66
|
£1.99
|
|
|
21 - SPRING CLIP
BSD-2601310010.A17
2601310010
|
-
|
|
|
|
22 - CIRCUIT UNIT
BSD-2607235007.A7
2607235007
|
-
|
|
|
|
22/40 - CLAMPING STRIP
BSD-2604490012.A26
2604490012
|
-
|
|
|
|
24 - TORX OVAL-HEAD SCREW 4x20
BSD-2603490023.A381
2603490023
|
£1.66
|
£1.99
|
|
|
25 - SWITCH SEGMENT
BSD-2605190219.A13
2605190219
|
-
|
|
|
|
26 - CONTACT SPRING
BSD-2601329057.A106
2601329057
|
-
|
|
|
|
30 - SWITCH SEGMENT
BSD-1605190091.A13
1605190091
|
-
|
|
|
|
31 - SWITCH WHEEL
BSD-1606330021.A15
1606330021
|
£1.66
|
£1.99
|
|
|
32 - SHIFTER ROD
BSD-2608040108.A15
2608040108
|
-
|
|
|
|
33/20 - GUIDE
BSD-2601038071.A6
2601038071
|
-
|
|
|
|
33/40 - THREAD-FORMING TAP. SCREW
BSD-2603413026.A54
2603413026
|
-
|
|
|
|
36 - STRAIGHT PIN
BSD-2609002714.A88
2609002714
|
£1.66
|
£1.99
|
|
|
38 - BEARING BRACKET
BSD-2605807080.A14
2605807080
|
-
|
|
|
|
39 - SHIM WASHER
BSD-2600100083.A13
2600100083
|
-
|
|
|
|
41 - SPRING NUT
BSD-2601310011.A12
2601310011
|
-
|
|
|
|
42 - BEARING BOLT
BSD-2603105054.A17
2603105054
|
£1.95
|
£2.34
|
|
|
43 - CYLINDRICAL GEAR Z=86
BSD-2606316163.A14
2606316163
|
-
|
|
|
|
47 - ECCENTRIC DISC
BSD-2600030010.A23
2600030010
|
£2.52
|
£3.02
|
|
|
48 - ECCENTRIC DISC
BSD-2600030011.A3
2600030011
|
£2.52
|
£3.02
|
|
|
54 - COMPRESSION SPRING
BSD-2604610028.A9
2604610028
|
£1.66
|
£1.99
|
|
|
55 - COMPRESSION SPRING
BSD-2604610045.A17
2604610045
|
£1.66
|
£1.99
|
|
|
56 - SHIM
BSD-2600101676.A17
2600101676
|
£1.66
|
£1.99
|
|
|
63 - BUSHING 8 x 12 x 8MM
BSD-1900322018.A7
1900322018
|
£1.66
|
£1.99
|
|
|
653 - OIL RESERVOIR
BSD-2605411122.A14
2605411122
|
-
|
|
|
|
680 - OIL SPRAY TIN
BSD-1609200399.A99
1609200399
|
£8.74
|
£10.49
|
|
|
809 - MANUFACTURER'S NAMEPLATE
BSD-2601117635.A0
2601117635
|
-
|
|
|
|
816/04 - CARBON-BRUSH SET
BSD-2604321920.A7
2604321920
|
-
|
|
|
|
816/06 - RATCHET CAP
BSD-2601322017.A81
2601322017
|
£1.66
|
£1.99
|
|
|
820 - REFERENCE PLATE
BSD-2601117356.A0
2601117356
|
-
|
|
|
|
833 - SET OF KNIVES 360 MM
BSD-2607001272.A7
2607001272
|
-
|
|
|
|
844 - LOCKING WASHER DIN 6799-7-FSt
BSD-2916080910.A86
2916080910
|
£1.66
|
£1.99
|
|
