Bosch ASW 55-SET 1/2 / 0600801310 / --- Spare Parts

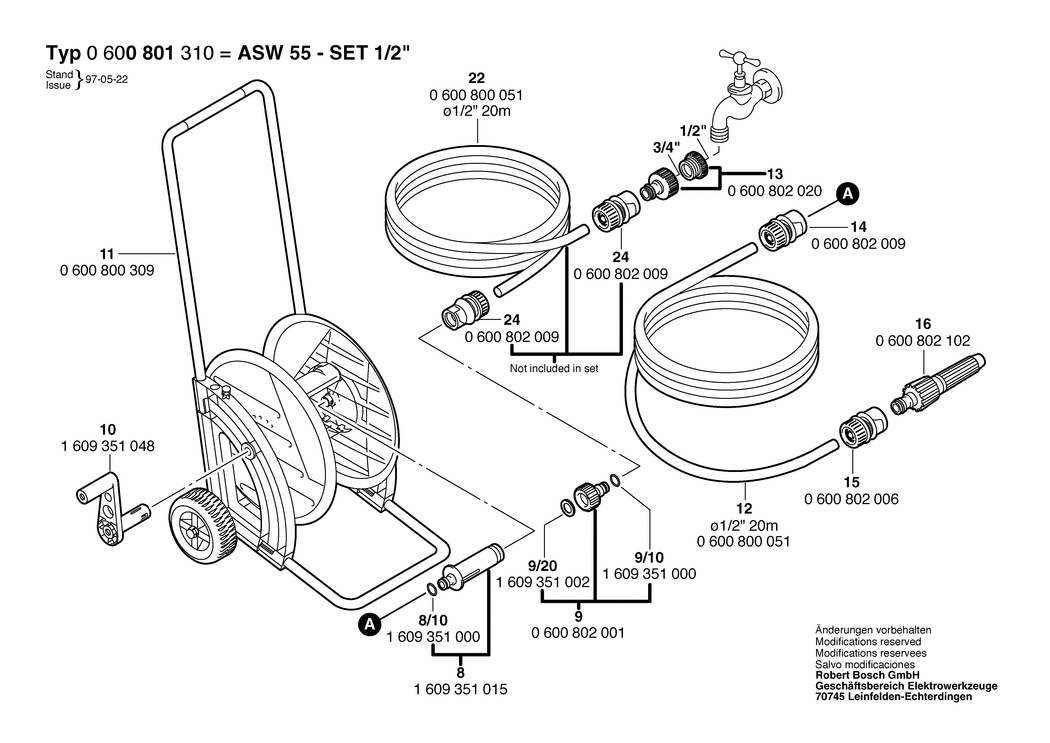

An exploded drawing and listing for the Bosch ASW 55-SET 1/2 / 0600801310 / ---

	Ex VAT	Inc VAT
8 - HOLLOW AXLE BSD-1609351015.A34 1609351015	£7.36	£8.83
8/10 - O-RING 11x2.5 MM BSD-1609351000.A76 1609351000	-
9 - TAP CONNECTION PIECE 3/4 BSD-0600802001.A13 0600802001	-
9/10 - O-RING 11x2.5 MM BSD-1609351000.A78 1609351000	-
9/20 - GASKET dia15xdia24x3=3/4 BSD-1609351002.A29 1609351002	-
10 - CRANK BSD-1609351048.A2 1609351048	-
11 - WHEELED HOSE REEL CART BSD-0600800309.A1 0600800309	-
12 - WOVEN-FABRIC FLEX. TUBING dia1/2 . L=20 M BSD-0600800051.A0 0600800051	-
13 - TAP CONNECTION PIECE 1/2 + 3/4 BSD-0600802020.A6 0600802020	-
14 - HOSE COUPLING 1/2 BSD-0600802009.A2 0600802009	-
15 - HOSE COUPLING 1/2 BSD-0600802006.A3 0600802006	-
16 - SPRAYING NOZZLE BSD-0600802102.A6 0600802102	-
22 - WOVEN-FABRIC FLEX. TUBING dia1/2 . L=20 M BSD-0600800051.A1 0600800051	-
24 - HOSE COUPLING 1/2 BSD-0600802009.A1 0600802009	-

Attribute Name	Value
Brand	Bosch
