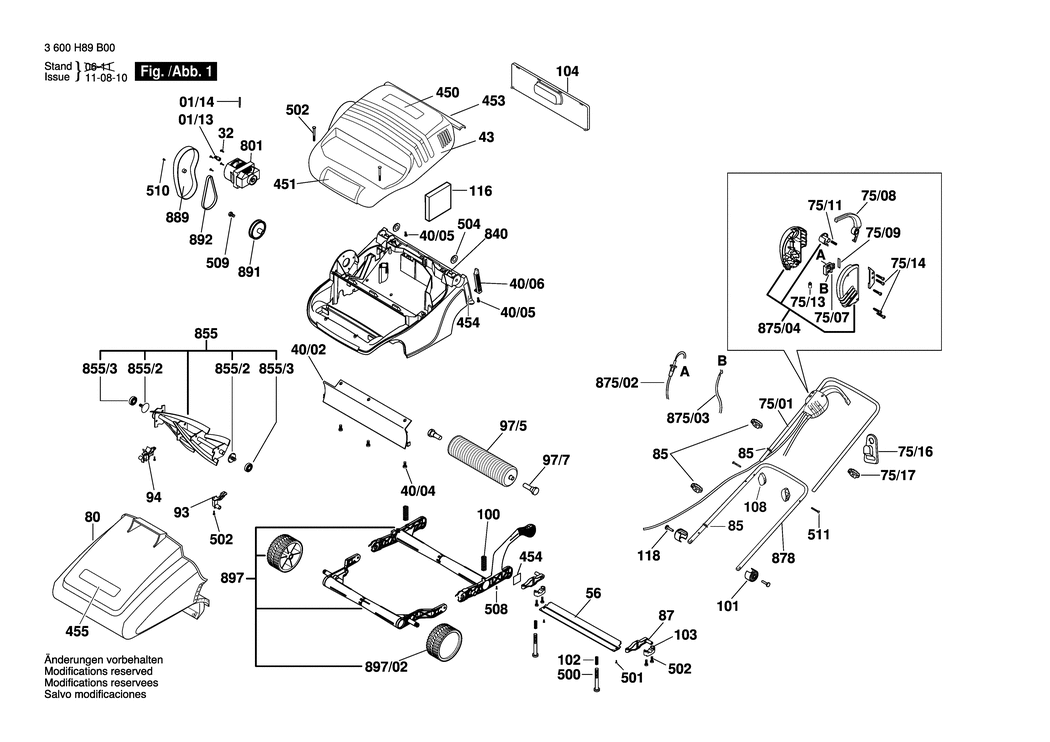

01/13 - PINION
BSD-F016L62280.A25
F016L62280
|
-
|
|
|
|
01/14 - COILED SPRING PIN
BSD-F016T44492.A7
F016T44492
|
£2.61
|
£3.13
|
|
|
32 - SELF-CUTTING SCREW
BSD-F016L37433.A63
F016L37433
|
£1.75
|
£2.10
|
|
|
40/02 - DEFLECTOR PLATE
BSD-F016L62866.A3
F016L62866
|
£5.87
|
£7.04
|
|
|
40/04 - SCREW
BSD-F016T48535.A4
F016T48535
|
£1.32
|
£1.58
|
|
|
40/05 - SELF-CUTTING SCREW 4x19 MM
BSD-F016T49429.A560
F016T49429
|
£1.75
|
£2.10
|
|
|
40/06 - INSERT
BSD-F016L63327.A6
F016L63327
|
-
|
|
|
|
43 - UPPER HOUSING
BSD-F016L64209.A0
F016L64209
|
£13.41
|
£16.09
|
|
|
56 - LOWER BLADE
BSD-F016L63318.A10
F016L63318
|
-
|
|
|
|
75/01 - HANDLE dia18 MM
BSD-F016L62472.A24
F016L62472
|
£10.10
|
£12.12
|
|
|
75/07 - ON-OFF SWITCH
BSD-F016F05717.A83
F016F05717
|
£14.91
|
£17.89
|
|
|
75/08 - POSITIONING LEVER
BSD-F016L66238.A110
F016L66238
|
£5.98
|
£7.18
|
|
|
75/09 - SPRING LEVER
BSD-F016T49845.A44
F016T49845
|
-
|
|
|
|
75/11 - COMPRESSION SPRING
BSD-F016T49226.A35
F016T49226
|
-
|
|
|
|
75/13 - CONDENSER
BSD-F016L36952.A76
F016L36952
|
£1.95
|
£2.34
|
|
|
75/14 - SELF-CUTTING SCREW 4x19 MM
BSD-F016T49429.A561
F016T49429
|
£1.75
|
£2.10
|
|
|
75/16 - STRAIN-RELIEF CLAMP
BSD-F016L65387.A11
F016L65387
|
£9.49
|
£11.39
|
|
|
75/17 - CABLE CLIP
BSD-F016T56393.A17
F016T56393
|
-
|
|
|
|
80 - COLLECTION BOX
BSD-F016L62945.A7
F016L62945
|
-
|
|
|
|
85 - CABLE CLEAT
BSD-F016L11580.A44
F016L11580
|
£1.75
|
£2.10
|
|
|
87 - BLADE HOLDER
BSD-F016L62272.A13
F016L62272
|
£4.75
|
£5.70
|
|
|
93 - BEARING HOLDER
BSD-F016L65830.A10
F016L65830
|
-
|
|
|
|
94 - BEARING HOLDER
BSD-F016L65831.A6
F016L65831
|
-
|
|
|
|
97/5 - ROLLER
BSD-F016L62282.A12
F016L62282
|
£8.49
|
£10.19
|
|
|
97/7 - STUB SHAFT
BSD-F016L63341.A5
F016L63341
|
£3.80
|
£4.56
|
|
|
100 - COMPRESSION SPRING
BSD-F016L62298.A13
F016L62298
|
-
|
|
|
|
101 - PIVOT
BSD-F016L62285.A4
F016L62285
|
-
|
|
|
|
102 - COMPRESSION SPRING
BSD-F016L62284.A18
F016L62284
|
-
|
|
|
|
103 - CLAMPING BLOCK
BSD-F016L62283.A4
F016L62283
|
£1.75
|
£2.10
|
|
|
104 - SEALING CAP
BSD-F016L62318.A4
F016L62318
|
£3.80
|
£4.56
|
|
|
108 - WING NUT
BSD-F016L66136.A63
F016L66136
|
£4.26
|
£5.11
|
|
|
116 - AIR FILTER
BSD-F016L62487.A15
F016L62487
|
-
|
|
|
|
118 - PIVOT PIN
BSD-F016L64240.A5
F016L64240
|
-
|
|
|
|
450 - STICKER
BSD-F016L62799.A7
F016L62799
|
£3.34
|
£4.01
|
|
|
451 - STICKER ASM 32 F
BSD-F016L62947.A0
F016L62947
|
£1.75
|
£2.10
|
|
|
453 - REFERENCE PLATE
BSD-F016L61033.A10
F016L61033
|
£2.52
|
£3.02
|
|
|
454 - STICKER
BSD-F016L64170.A9
F016L64170
|
£2.33
|
£2.80
|
|
|
455 - STICKER ASM 32 F
BSD-F016L63324.A0
F016L63324
|
£2.33
|
£2.80
|
|
|
500 - BOLT
BSD-F016L62288.A18
F016L62288
|
£1.95
|
£2.34
|
|
|
501 - SCREW M5x8 Csk Hd.
BSD-F016L36542.A41
F016L36542
|
£1.63
|
£1.96
|
|
|
502 - SELF-CUTTING SCREW 4x19 MM
BSD-F016T49429.A563
F016T49429
|
£1.75
|
£2.10
|
|
|
504 - SET RING 12 MM T40
BSD-F016T49100.A22
F016T49100
|
£1.95
|
£2.34
|
|
|
508 - SELF-CUTTING SCREW
BSD-F016L37433.A64
F016L37433
|
£1.75
|
£2.10
|
|
|
509 - NUT
BSD-F016L62388.A18
F016L62388
|
£3.34
|
£4.01
|
|
|
510 - SELF-CUTTING SCREW 4x19 MM
BSD-F016T49429.A562
F016T49429
|
£1.75
|
£2.10
|
|
|
511 - TRUNNION
BSD-F016L65389.A2
F016L65389
|
-
|
|
|
|
801 - MOTOR
BSD-F016L80980.A9
F016L80980
|
-
|
|
|
|
840 - PARTS SET
BSD-F016103636.A9
F016103636
|
-
|
|
|
|
855 - CUTTER CYLINDER
BSD-F016103681.A0
F016103681
|
-
|
|
|
|
855/2 - BEARING COVER
BSD-F016L65939.A9
F016L65939
|
£1.75
|
£2.10
|
|
|
855/3 - GROOVE BALL BEARING 6200-2Z DIN 625
BSD-1900905232.A166
1900905232
|
£21.68
|
£26.01
|
|
|
875/02 - POWER SUPPLY CORD GB 22m 2 x 0.75mm without plug
BSD-F016104085.A22
F016104085
|
£31.64
|
£37.97
|
|
|
875/03 - CONNECTING CABLE
BSD-F016102355.A16
F016102355
|
£5.58
|
£6.70
|
|
|
875/04 - ASSEMBLY KIT
BSD-F016103136.A11
F016103136
|
-
|
|
|
|
878 - HANDLE
BSD-F016102330.A18
F016102330
|
£14.72
|
£17.67
|
|
|
889 - BELT COVER
BSD-F016102356.A5
F016102356
|
£4.75
|
£5.70
|
|
|
891 - PULLEY
BSD-F016102357.A24
F016102357
|
£3.80
|
£4.56
|
|
|
892 - DRIVE BELT
BSD-F016102358.A5
F016102358
|
£7.78
|
£9.33
|
|
|
897 - PARTS SET
BSD-F016103640.A5
F016103640
|
-
|
|
|
|
897/02 - WHEEL
BSD-F016L62270.A9
F016L62270
|
£3.34
|
£4.01
|
|
