Bosch AHS 18 ACCU / 0600832503 / EU 7.2 Volt Spare Parts

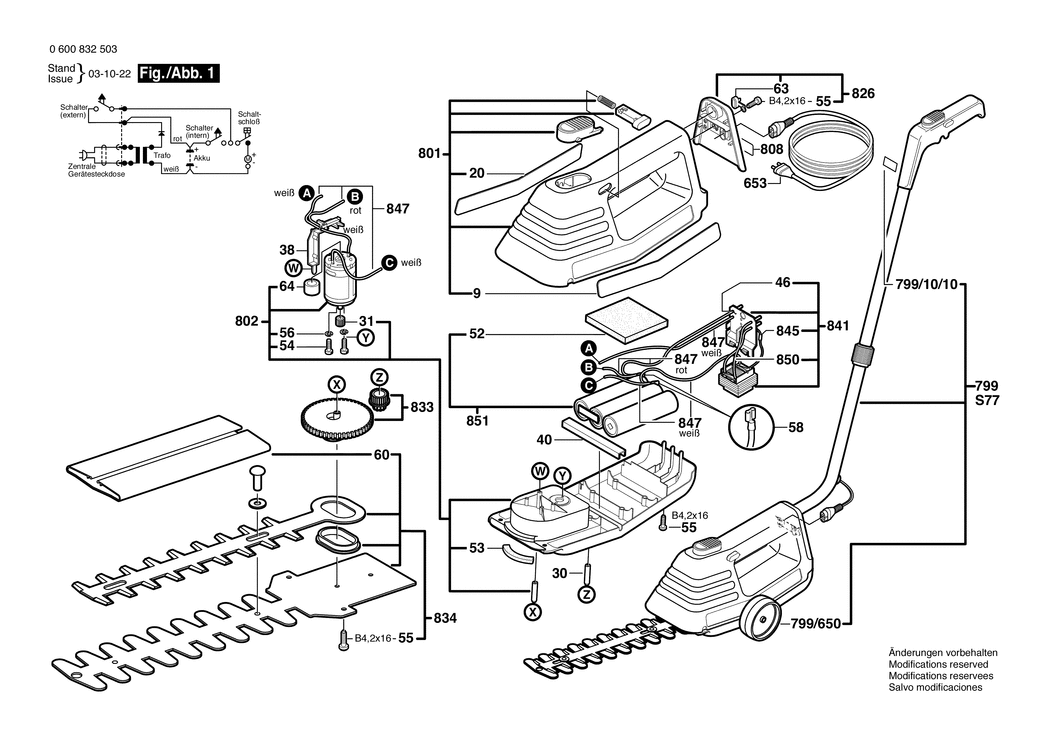

An exploded drawing and listing for the Bosch AHS 18 ACCU / 0600832503 / EU 7.2 Volt

	Ex VAT	Inc VAT
9 - MANUFACTURER'S NAMEPLATE BSD-2601116641.A0 2601116641	-
20 - REFERENCE PLATE BSD-2601116642.A0 2601116642	-
30 - AXLE BSD-2603120035.A0 2603120035	-
31 - PINION Z=10. dia2.3 MM BSD-2606316175.A15 2606316175	-
38 - CONTACT HOUSING BSD-2608018002.A7 2608018002	-
40 - COVER STRIP BSD-2602386000.A20 2602386000	-
46 - CONTACT SLEEVE BSD-2600422003.A13 2600422003	-
52 - DAMPING PLATE 60x80x2 MM BSD-2602388007.A0 2602388007	-
53 - WIPER BSD-2602391002.A13 2602391002	-
54 - SOCKET HEAD CAP SCREW AM 2.6x8 MM BSD-2603413030.A8 2603413030	-
55 - SCREW 4x16 BSD-2603490022.A2325 2603490022	£1.66	£1.99
56 - SPRING RETAINING RING BSD-2600116037.A1 2600116037	-
58 - RECEPTACLE BSD-1904478015.A7 1904478015	£1.32	£1.58
60 - KNIFE GUARD BSD-2605411209.A0 2605411209	-
63 - PROTECTIVE CAP BSD-2605500141.A7 2605500141	-
64 - ADAPTER BSD-2605719025.A13 2605719025	-
653 - POWER SUPPLY CORD 1.1m PVC BSD-2604460107.A12 2604460107	-
653 - POWER SUPPLY CORD GB 1.1m BSD-2604460111.A2 2604460111	-
799 - GUIDE BRACKET BSD-2607001181.A12 2607001181	-
799/10/10 - MANUFACTURER'S NAMEPLATE BSD-2601110601.A19 2601110601	-
799/650 - IMPELLER BSD-1609200927.A13 1609200927	-
801 - UPPER HOUSING BSD-2605105934.A0 2605105934	-
802 - DC MOTOR 18V BSD-2607022960.A33 2607022960	-
808 - NAMEPLATE BSD-160111A3H4.A7 160111A3H4	-
826 - HOUSING COVER BSD-2605500906.A13 2605500906	-
833 - ECCENTRIC COG WHEEL BSD-1609200910.A2 1609200910	-
834 - SET OF KNIVES BSD-2607009908.A0 2607009908	-
841 - CHARGING TRANSFORMER GB 240/7.2V. 1h BSD-2607224906.A3 2607224906	-
845 - PARTS SET BSD-2607010227.A0 2607010227	-
847 - CABLE BSD-2604412900.A5 2604412900	-
850 - CONNECTING CABLE L=63 MM BSD-2604412023.A15 2604412023	-
851 - BATTERY SET 7.2V. 1.5Ah. NiCd BSD-2607335811.A0 2607335811	-

Attribute Name	Value
Brand	Bosch
