Bosch Rotak 43 LI 2-Ergoflex / 3600HA4571 / GB 36 Volt Spare Parts

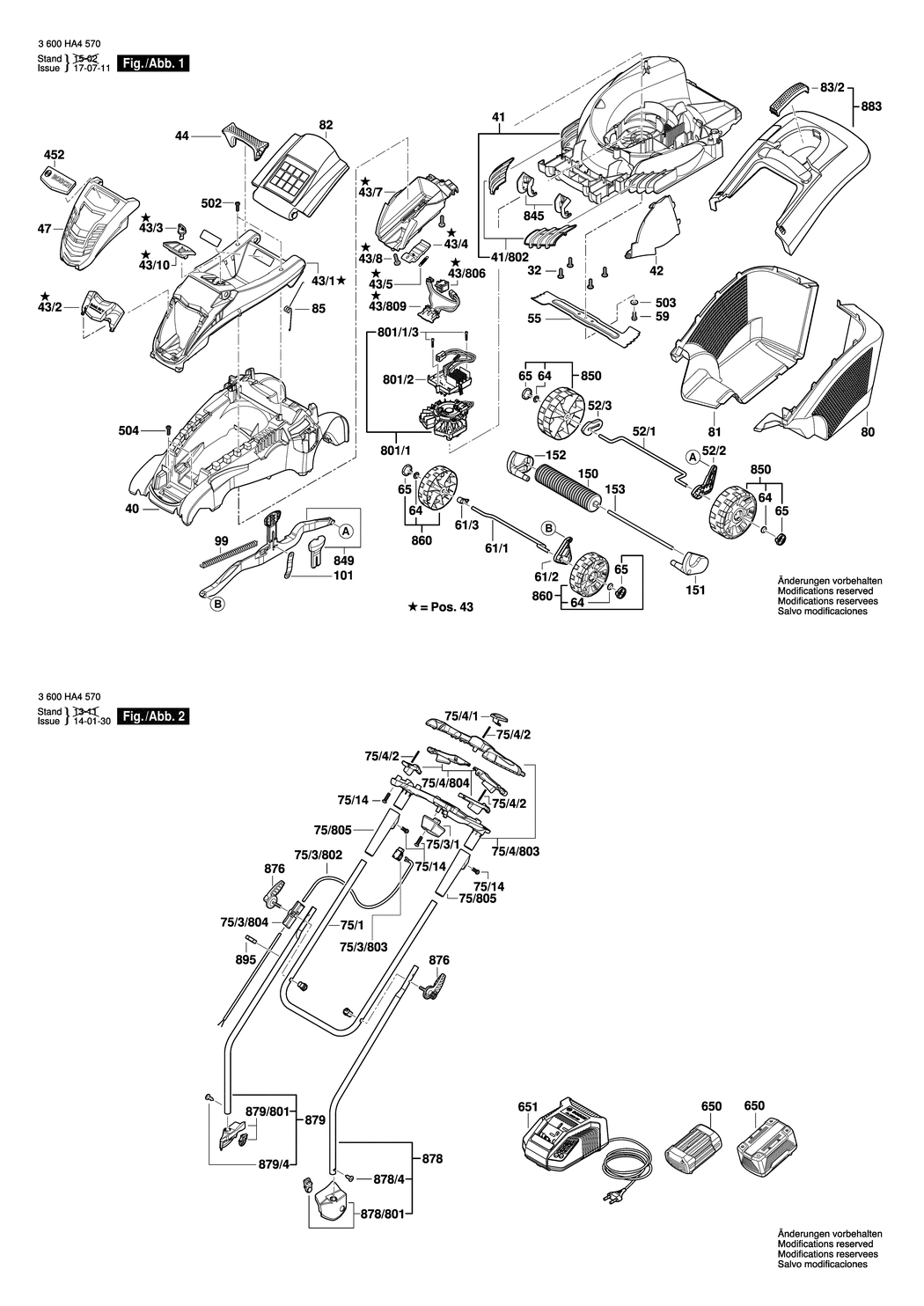

An exploded drawing and listing for the Bosch Rotak 43 LI 2-Ergoflex / 3600HA4571 / GB 36 Volt

	Ex VAT	Inc VAT
32 - SCREW BSD-F016L66162.A93 F016L66162	£1.75	£2.10
40 - MOWER DECK BSD- F016104925.A9 F016104925	£27.31	£32.77
41 - HOUSING BSD-F016L68166.A2 F016L68166	£37.72	£45.27
41/802 - COVER PANEL BSD-F016104304.A29 F016104304	£3.80	£4.56
42 - COVER PANEL BSD-F016L66041.A65 F016L66041	£5.01	£6.01
43 - MOTOR HOOD BSD-F016L68080.A27 F016L68080	£45.67	£54.80
43/1 - MOTOR HOOD BSD-F016L68081.A8 F016L68081	£13.41	£16.09
43/2 - COVER BSD-F016L68086.A28 F016L68086	£2.52	£3.02
43/3 - KEY BSD-F016L68003.A17 F016L68003	£2.49	£2.99
43/4 - RELEASE LEVER BSD-F016L68004.A28 F016L68004	£1.95	£2.34
43/5 - SPRING BSD-F016L66108.A64 F016L66108	£1.75	£2.10
43/7 - BATTERY TRAY BSD-F016L68082.A28 F016L68082	£6.61	£7.93
43/8 - SELF-CUTTING SCREW 4x19 MM BSD-F016T49429.A702 F016T49429	£1.75	£2.10
43/10 - COVER BSD-F016L68083.A7 F016L68083	£2.33	£2.80
43/806 - SWITCH BSD-F016104250.A28 F016104250	£8.67	£10.41
43/809 - WIRING HARNESS BSD-F016104654.A29 F016104654	-
44 - CARRYING HANDLE BSD-F016L68084.A28 F016L68084	£2.16	£2.59
47 - GRILLE BSD-F016L68085.A6 F016L68085	£6.61	£7.93
52/1 - AXLE BSD-F016L68529.A16 F016L68529	£4.75	£5.70
52/2 - LEVER BSD-F016L90582.A154 F016L90582	-
52/3 - SPACER BSD-F016L90583.A38 F016L90583	£2.33	£2.80
55 - CUTTER BLADE BSD-F016L68217.A1 F016L68217	£37.26	£44.71
59 - BOLT M10x30 BSD-F016L66141.A4 F016L66141	£2.61	£3.13
61/1 - AXLE BSD-F016L68528.A45 F016L68528	£5.01	£6.01
61/2 - LEVER BSD-F016L90581.A37 F016L90581	£7.78	£9.33
61/3 - SPACER BSD-F016L90585.A155 F016L90585	£1.75	£2.10
64 - RATCHET CAP BSD-F016L68095.A51 F016L68095	£1.75	£2.10
65 - COVER BSD-F016L68116.A63 F016L68116	£1.75	£2.10
75/1 - HANDLE BSD-F016L90608.A99 F016L90608	£16.41	£19.69
75/3/1 - CONNECTOR HOUSING BSD-F016L67218.A45 F016L67218	£5.30	£6.36
75/3/802 - CONNECTING CABLE BSD-F016104165.A47 F016104165	£13.41	£16.09
75/3/803 - SWITCH KIT BSD-F016104163.A56 F016104163	£14.91	£17.89
75/3/804 - CABLE GUIDE BSD-F016104213.A107 F016104213	£8.67	£10.41
75/4/1 - PUSH-BUTTON BSD-F016L67150.A77 F016L67150	£2.08	£2.50
75/4/2 - BUTTON SPRING BSD-F016L67151.A64 F016L67151	£1.75	£2.10
75/4/803 - HOUSING SET BSD-F016104360.A66 F016104360	£16.41	£19.69
75/4/804 - SWITCH SEGMENT BSD-F016104160.A30 F016104160	£10.82	£12.99
75/14 - SELF-CUTTING SCREW 4x19 MM BSD-F016T49429.A703 F016T49429	£1.75	£2.10
75/805 - SLEEVE BSD-F016104361.A31 F016104361	£4.26	£5.11
80 - COLLECTOR BOX BOTTOM L/H BSD-F016L64304.A56 F016L64304	£21.68	£26.01
81 - COLLECTOR BOX BOTTOM R/H BSD-F016L64338.A92 F016L64338	£16.41	£19.69
82 - GUARD FLAP BSD-F016L66137.A186 F016L66137	£13.32	£15.99
83/2 - HANDLE BSD-F016L66441.A203 F016L66441	£4.75	£5.70
85 - SPRING BSD-F016L66165.A12 F016L66165	£2.82	£3.39
99 - SPRING BSD-F016L59327.A208 F016L59327	£2.80	£3.36
101 - LEAF SPRING BSD-F016L68117.A28 F016L68117	£1.75	£2.10
150 - ROLLER DRUM BSD-F016L66175.A6 F016L66175	-
151 - BRACKET BSD-F016L64900.A73 F016L64900	£3.80	£4.56
152 - BRACKET BSD-F016L64901.A9 F016L64901	£3.80	£4.56
153 - SPINDLE BSD-F016L65870.A17 F016L65870	£6.61	£7.93
452 - COMPANY LOGO Rotak 43 LI 2-Ergoflex BSD-F016L69081.A1 F016L69081	£3.34	£4.01
502 - TORX HEAD SCREW BSD-F016L68124.A32 F016L68124	£1.75	£2.10
503 - SPRING WASHER 1/2 BSD-F016L66173.A90 F016L66173	£1.75	£2.10
504 - SELF-CUTTING SCREW 4x19 MM BSD-F016T49429.A735 F016T49429	£1.75	£2.10
650 - SLIDE-IN ACCU PACKAGE BBS 36V. 4.0Ah BSD-2607337047.A20 2607337047	£263.33	£316.00
651 - CHARGER GB 230/10.8-36V BSD-2607226275.A9 2607226275	£59.53	£71.44
801/1 - DC MOTOR BSD-F016104031.A73 F016104031	£218.41	£262.09
801/1/3 - PAN HEAD SCREW 4x35 BSD-F016L69251.A21 F016L69251	£1.75	£2.10
801/1/3 - SCREW M4x35 BSD-F016L66662.A56 F016L66662	£1.75	£2.10
801/2 - PRINTED-BOARD ASSEMBLY BSD-F016104888.A54 F016104888	£93.88	£112.65
845 - COVER PANEL BSD-F016104425.A10 F016104425	£3.34	£4.01
849 - LINKAGE PART BSD-F016104303.A25 F016104303	£8.49	£10.19
850 - WHEEL BSD-F016104306.A41 F016104306	£8.67	£10.41
860 - WHEEL BSD-F016104305.A20 F016104305	£10.10	£12.12
876 - CLAMPING LEVER BSD-F016L67530.A127 F016L67530	£11.30	£13.56
878 - BOTTOM HANDLE BSD-F016104579.A21 F016104579	-
878/4 - SCREW M5x8 Csk Hd. BSD-F016L36542.A282 F016L36542	£2.61	£3.13
878/801 - MOUNTING BRACKET BSD-F016104426.A24 F016104426	£5.87	£7.04
879 - BOTTOM HANDLE BSD-F016104580.A7 F016104580	£14.72	£17.67
879/4 - SCREW M5x8 Csk Hd. BSD-F016L36542.A283 F016L36542	£2.61	£3.13
879/801 - MOUNTING BRACKET BSD-F016104427.A9 F016104427	£5.87	£7.04
883 - COVER BSD-F016103608.A146 F016103608	£27.23	£32.68
895 - CABLE CLIP BSD-F016L66895.A183 F016L66895	£1.75	£2.10

Attribute Name	Value
Brand	Bosch
