Bosch ROTAK 34 LI / 3600H81E01 / --- 36 Volt Spare Parts

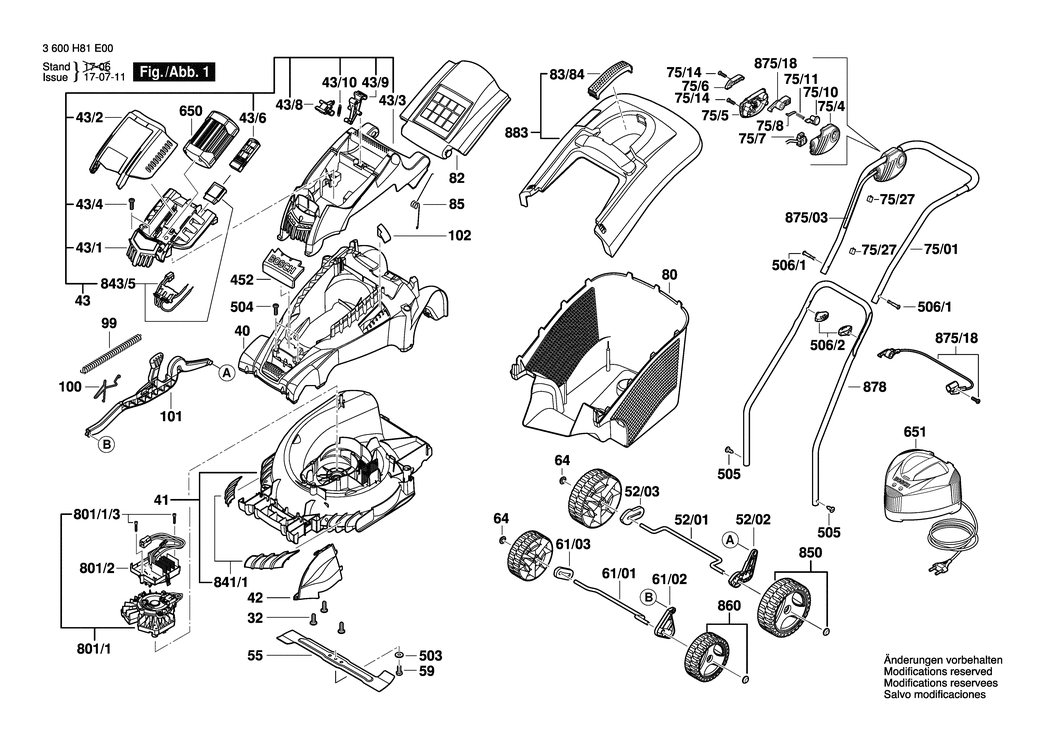

An exploded drawing and listing for the Bosch ROTAK 34 LI / 3600H81E01 / --- 36 Volt

	Ex VAT	Inc VAT
32 - SCREW BSD-F016L66162.A22 F016L66162	£1.75	£2.10
40 - MOWER DECK BSD-F016L66158.A27 F016L66158	£33.74	£40.49
41 - HOUSING BSD-F016L66002.A7 F016L66002	£31.64	£37.97
42 - COVER PANEL BSD-F016L66038.A25 F016L66038	£3.34	£4.01
43 - MOTOR HOOD BSD-F016L66461.A8 F016L66461	-
43/1 - BATTERY TRAY BSD-F016L66460.A1 F016L66460	£27.23	£32.68
43/2 - BATTERY COVER BSD-F016L66663.A20 F016L66663	£7.92	£9.50
43/3 - MOTOR HOOD BSD-F016L66779.A12 F016L66779	-
43/4 - SELF-CUTTING SCREW 4x19 MM BSD-F016T49429.A361 F016T49429	£1.75	£2.10
43/6 - INSULATOR BSD-F016L66669.A24 F016L66669	-
43/8 - RELEASE LEVER BSD-F016L66107.A34 F016L66107	£3.34	£4.01
43/9 - LOCKING DEVICE BSD-F016L65988.A34 F016L65988	£1.95	£2.34
43/10 - SPRING BSD-F016L66108.A16 F016L66108	£1.75	£2.10
52/01 - AXLE BSD-F016L66465.A1 F016L66465	£3.34	£4.01
52/02 - LEVER BSD-F016L90582.A106 F016L90582	-
52/03 - SPACER BSD-F016L90583.A86 F016L90583	£2.33	£2.80
55 - CUTTER BLADE BSD-F016L66004.A7 F016L66004	£31.64	£37.97
59 - BOLT M10x30 BSD-F016L66141.A55 F016L66141	£2.61	£3.13
61/01 - AXLE BSD-F016L66464.A52 F016L66464	£4.75	£5.70
61/02 - LEVER BSD-F016L90581.A86 F016L90581	£7.78	£9.33
61/03 - SPACER BSD-F016L90585.A106 F016L90585	£1.75	£2.10
64 - RATCHET CAP 9 MM BSD-F016F05700.A2 F016F05700	£1.95	£2.34
75/01 - HANDLE BSD-F016L66181.A11 F016L66181	£23.86	£28.63
75/4 - SWITCH HOUSING BSD-F016L66619.A13 F016L66619	£4.75	£5.70
75/5 - SWITCH HOUSING BSD-F016L66235.A65 F016L66235	£3.34	£4.01
75/6 - CLAMPING PIECE BSD-F016L66447.A11 F016L66447	£1.95	£2.34
75/7 - ON-OFF SWITCH BSD-F016F05717.A4 F016F05717	£14.91	£17.89
75/8 - LEAF SPRING BSD-F016L66416.A28 F016L66416	£1.66	£1.99
75/10 - PUSH-BUTTON BSD-F016F05705.A56 F016F05705	£3.75	£4.50
75/11 - COMPRESSION SPRING BSD-F016L66240.A37 F016L66240	£1.75	£2.10
75/14 - SELF-CUTTING SCREW 4x19 MM BSD-F016T49429.A360 F016T49429	£1.75	£2.10
75/27 - CABLE CLIP BSD-F016L90575.A21 F016L90575	£1.75	£2.10
80 - COLLECTOR BOX BOTTOM BSD-F016L65674.A20 F016L65674	£40.80	£48.96
82 - GUARD FLAP BSD-F016L66137.A121 F016L66137	£13.32	£15.99
83/84 - HANDLE BSD-F016L66441.A52 F016L66441	£4.75	£5.70
85 - SPRING BSD-F016L66165.A166 F016L66165	£2.82	£3.39
99 - SPRING BSD-F016L59327.A59 F016L59327	£2.80	£3.36
100 - SPRING BSD-F016L65790.A48 F016L65790	£1.95	£2.34
101 - LINKAGE PART BSD-F016L67260.A25 F016L67260	-
102 - RESTRICTOR BSD-F016L66111.A34 F016L66111	£3.80	£4.56
452 - COMPANY LOGO ROTAK 34 LI BSD-F016L66285.A1 F016L66285	£3.34	£4.01
503 - SPRING WASHER 1/2 BSD-F016L66173.A22 F016L66173	£1.75	£2.10
504 - SELF-CUTTING SCREW 4x19 MM BSD-F016T49429.A362 F016T49429	£1.75	£2.10
505 - SCREW BSD-F016L65803.A81 F016L65803	-
506/1 - BOLT M6x50 BSD-F016L59277.A66 F016L59277	£3.80	£4.56
506/2 - WING NUT BSD-F016L66136.A4 F016L66136	£4.26	£5.11
650 - SLIDE-IN ACCU PACKAGE PBA 36V 2.6Ah H-B Li BSD-2607336107.A29 2607336107	-
651 - FAST CHARGER EU 230/18-36V. 1h BSD-2607225099.A23 2607225099	£134.16	£160.99
801/1 - DC MOTOR BSD-F016104031.A13 F016104031	£218.41	£262.09
801/1/3 - PAN HEAD SCREW 4x35 BSD-F016L69251.A50 F016L69251	£1.75	£2.10
801/1/3 - SCREW M4x35 BSD-F016L66662.A18 F016L66662	£1.75	£2.10
801/2 - PRINTED-BOARD ASSEMBLY BSD-F016104888.A13 F016104888	£93.88	£112.65
841/1 - COVER BSD-F016104315.A3 F016104315	£6.52	£7.83
843/5 - WIRING HARNESS BSD-F016104244.A26 F016104244	-
850 - WHEEL BSD-F016103992.A4 F016103992	-
860 - WHEEL BSD-F016103994.A73 F016103994	-
875/03 - CONNECTING CABLE BSD-F016104140.A12 F016104140	£10.82	£12.99
875/18 - CONTROL BAR BSD-F016103601.A2 F016103601	-
878 - BOTTOM HANDLE BSD-F016L65166.A22 F016L65166	-
883 - COVER BSD-F016103608.A114 F016103608	£27.23	£32.68
