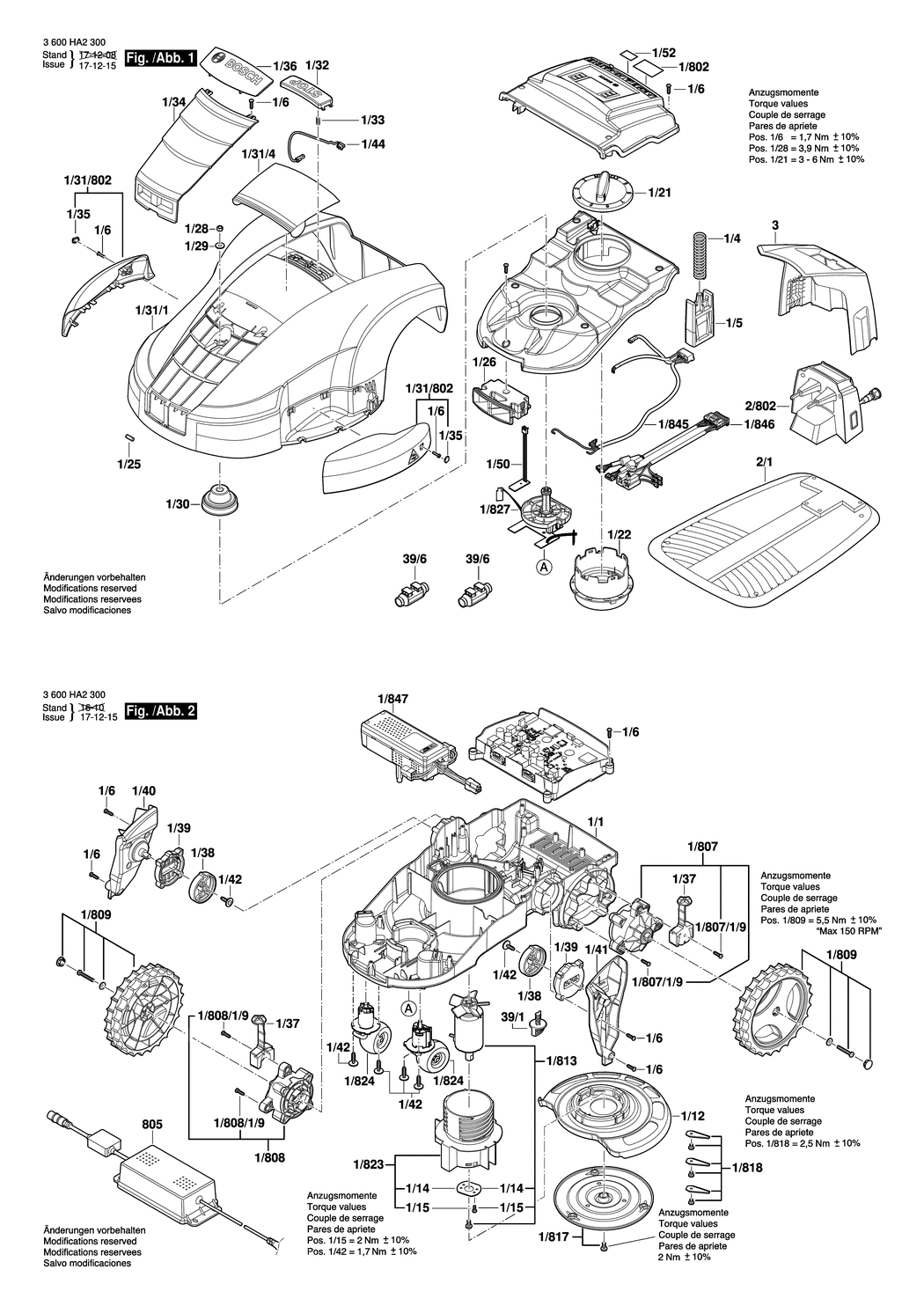

1/1 - CHASSIS
BSD-F016L68576.A0
F016L68576
|
£33.74
|
£40.49
|
|
|
1/4 - SPRING
BSD-F016L67704.A1
F016L67704
|
£1.95
|
£2.34
|
|
|
1/5 - PLUNGER
BSD-F016L67705.A13
F016L67705
|
£2.33
|
£2.80
|
|
|
1/6 - SCREW M4x20 PLASTIC
BSD-F016L67706.A3
F016L67706
|
£1.66
|
£1.99
|
|
|
1/12 - PIVOTING BLADE GUARD
BSD-F016L67729.A13
F016L67729
|
£23.86
|
£28.63
|
|
|
1/14 - BEARING PLATE
BSD-F016L67872.A13
F016L67872
|
£2.80
|
£3.36
|
|
|
1/15 - MOTOR FIXING SCREW
BSD-F016L67734.A1
F016L67734
|
£1.66
|
£1.99
|
|
|
1/21 - ROTARY KNOB
BSD-F016L67742.A13
F016L67742
|
£5.58
|
£6.70
|
|
|
1/22 - THREADED SLEEVE
BSD-F016L67743.A1
F016L67743
|
£10.10
|
£12.12
|
|
|
1/25 - CONTROL MAGNET
BSD-F016L67750.A13
F016L67750
|
£1.95
|
£2.34
|
|
|
1/26 - SOCKET
BSD-F016L68265.A2
F016L68265
|
£23.86
|
£28.63
|
|
|
1/28 - NUT
BSD-F016L18118.A12
F016L18118
|
£1.66
|
£1.99
|
|
|
1/29 - WASHER
BSD-F016L67862.A13
F016L67862
|
£1.66
|
£1.99
|
|
|
1/30 - SEALING BELLOWS
BSD-F016L67768.A2
F016L67768
|
-
|
|
|
|
1/31/1 - OUTER SHELL
BSD-F016L67770.A12
F016L67770
|
£70.24
|
£84.29
|
|
|
1/31/4 - HINGED LID
BSD-F016L69130.A0
F016L69130
|
£33.74
|
£40.49
|
|
|
1/31/802 - SIDE COVER
BSD-F016104257.A3
F016104257
|
£31.64
|
£37.97
|
|
|
1/32 - STOP COVER
BSD-F016L67771.A2
F016L67771
|
£3.72
|
£4.47
|
|
|
1/33 - BUTTON SPRING
BSD-F016L67772.A12
F016L67772
|
£2.33
|
£2.80
|
|
|
1/34 - COVER GUIDE
BSD-F016L67773.A2
F016L67773
|
£13.41
|
£16.09
|
|
|
1/35 - CAP PLATE
BSD-F016L67776.A3
F016L67776
|
£1.32
|
£1.58
|
|
|
1/36 - COMPANY LOGO Indego 13C
BSD-F016L69125.A0
F016L69125
|
£7.36
|
£8.83
|
|
|
1/37 - SUPPORT ELEMENT
BSD-F016L68494.A1
F016L68494
|
£13.12
|
£15.75
|
|
|
1/38 - MOUNTING RING
BSD-F016L67785.A13
F016L67785
|
£18.96
|
£22.75
|
|
|
1/39 - RETAINING PLATE
BSD-F016L67786.A1
F016L67786
|
£5.58
|
£6.70
|
|
|
1/40 - MOUNTING BRACKET
BSD-F016L67778.A13
F016L67778
|
£8.67
|
£10.41
|
|
|
1/41 - MOUNTING BRACKET
BSD-F016L67779.A1
F016L67779
|
£10.10
|
£12.12
|
|
|
1/42 - SCREW AND WASHER ASSEMBLY
BSD-F016L67951.A2
F016L67951
|
£1.66
|
£1.99
|
|
|
1/44 - WIRE HARNESS ASSEMBLY
BSD-F016L67867.A1
F016L67867
|
£5.58
|
£6.70
|
|
|
1/50 - ELECTRONIC ASSEMBLY
BSD-F016L68893.A1
F016L68893
|
£63.50
|
£76.20
|
|
|
1/52 - STICKER
BSD-F016L69304.A1
F016L69304
|
£2.80
|
£3.36
|
|
|
1/802 - NAMEPLATE
BSD-F016105061.A1
F016105061
|
£2.33
|
£2.80
|
|
|
1/807 - DRIVE UNIT
BSD-F016104253.A2
F016104253
|
£116.15
|
£139.38
|
|
|
1/808 - DRIVE UNIT
BSD-F016104251.A2
F016104251
|
£116.15
|
£139.38
|
|
|
1/809 - DRIVE WHEEL
BSD-F016104502.A14
F016104502
|
£23.86
|
£28.63
|
|
|
1/813 - MOTOR SPARE PARTS SET
BSD-F016104254.A12
F016104254
|
£271.18
|
£325.41
|
|
|
1/817 - CUTTING UNIT
BSD-F016104259.A14
F016104259
|
£40.80
|
£48.96
|
|
|
1/818 - CUTTER BLADE
BSD-F016104255.A2
F016104255
|
£27.23
|
£32.68
|
|
|
1/823 - MOTOR HOUSING
BSD-F016104252.A12
F016104252
|
£27.31
|
£32.77
|
|
|
1/824 - WHEEL LIFT UNIT
BSD-F016104876.A11
F016104876
|
-
|
|
|
|
1/827 - JOYSTICK
BSD-F016104601.A0
F016104601
|
-
|
|
|
|
1/845 - WIRE HARNESS ASSEMBLY
BSD-F016104258.A0
F016104258
|
£134.16
|
£160.99
|
|
|
1/846 - WIRE HARNESS ASSEMBLY
BSD-F016104682.A1
F016104682
|
-
|
|
|
|
1/847 - BATTERY PACK
BSD-F016104299.A0
F016104299
|
£271.18
|
£325.41
|
|
|
2/1 - BASE PLATE
BSD-F016L68409.A13
F016L68409
|
£33.74
|
£40.49
|
|
|
2/802 - SIGNAL TOWER
BSD-F016104662.A10
F016104662
|
£306.81
|
£368.17
|
|
|
3 - COVERING HOOD
BSD-F016L67822.A11
F016L67822
|
£13.12
|
£15.75
|
|
|
39/1 - STOPPER
BSD-F016L67841.A3
F016L67841
|
£4.26
|
£5.11
|
|
|
39/6 - CONNECTOR
BSD-F016L68737.A13
F016L68737
|
£7.36
|
£8.83
|
|
|
805 - POWER SUPPLY UNIT EU
BSD-F016L69116.A2
F016L69116
|
£167.68
|
£201.22
|
|
|
805 - POWER SUPPLY UNIT CH
BSD-F016L69117.A12
F016L69117
|
£186.77
|
£224.12
|
|
|
805 - POWER SUPPLY UNIT
BSD-F016L69118.A2
F016L69118
|
£154.03
|
£184.84
|
|
|
805 - POWER SUPPLY UNIT
BSD-F016L69119.A12
F016L69119
|
£154.03
|
£184.84
|
|
|
1/807/1/9 - SCREW M4x20 PLASTIC
BSD-F016L67706.A5
F016L67706
|
£1.66
|
£1.99
|
|
|
1/808/1/9 - SCREW M4x20 PLASTIC
BSD-F016L67706.A6
F016L67706
|
£1.66
|
£1.99
|
|
