Bosch AGS 70 / 0600832403 / EU 7.2 Volt Spare Parts

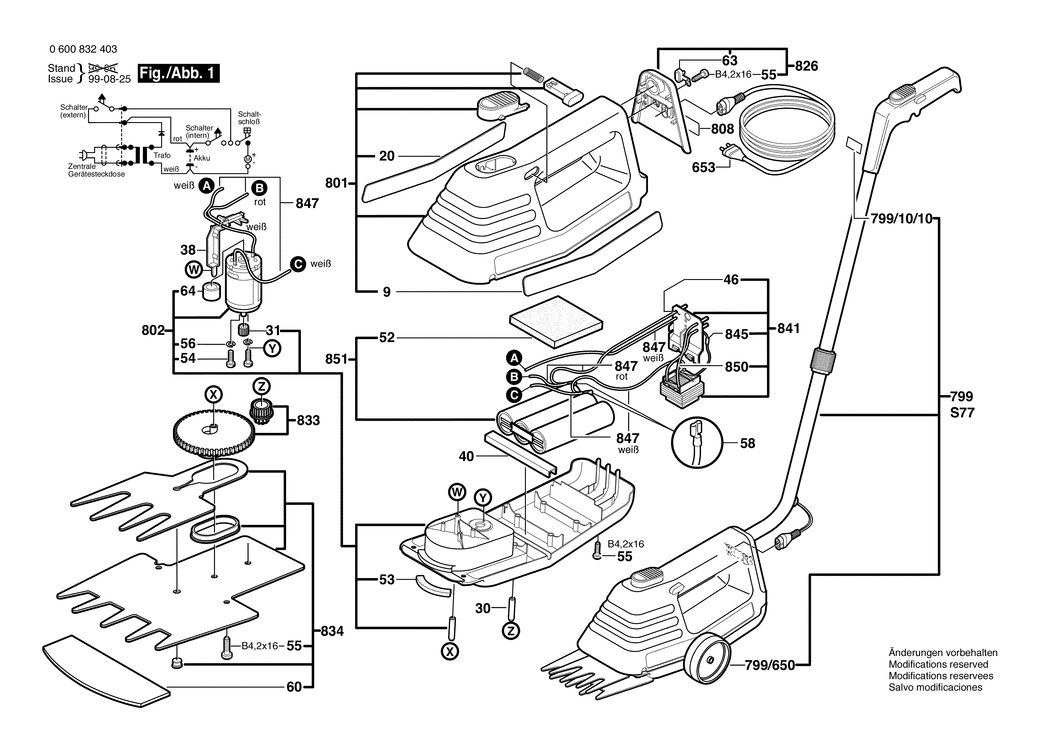

An exploded drawing and listing for the Bosch AGS 70 / 0600832403 / EU 7.2 Volt

	Ex VAT	Inc VAT
9 - MANUFACTURER'S NAMEPLATE BSD-2601119399.A2 2601119399	-
20 - REFERENCE PLATE BSD-2601119402.A1 2601119402	-
30 - AXLE BSD-2603120035.A2 2603120035	-
31 - PINION Z=10. dia2.3 MM BSD-2606316175.A20 2606316175	-
38 - CONTACT HOUSING BSD-2608018002.A9 2608018002	-
40 - COVER STRIP BSD-2602386000.A19 2602386000	-
46 - CONTACT SLEEVE BSD-2600422003.A11 2600422003	-
52 - DAMPING PLATE 60x80x2 MM BSD-2602388007.A3 2602388007	-
53 - WIPER BSD-2602391002.A10 2602391002	-
54 - SOCKET HEAD CAP SCREW AM 2.6x8 MM BSD-2603413030.A9 2603413030	-
55 - SCREW 4x16 BSD-2603490022.A2324 2603490022	£1.66	£1.99
56 - SPRING RETAINING RING BSD-2600116037.A4 2600116037	-
58 - RECEPTACLE BSD-1904478015.A11 1904478015	£1.32	£1.58
60 - PROTECTIVE CAP BSD-2605510018.A4 2605510018	-
63 - PROTECTIVE CAP BSD-2605500141.A12 2605500141	-
64 - ADAPTER BSD-2605719025.A8 2605719025	-
653 - POWER SUPPLY CORD 1.1m PVC BSD-2604460107.A13 2604460107	-
799 - GUIDE BRACKET BSD-2607001181.A11 2607001181	-
799/10/10 - MANUFACTURER'S NAMEPLATE BSD-2601110601.A22 2601110601	-
799/650 - IMPELLER BSD-1609200927.A8 1609200927	-
801 - UPPER HOUSING BSD-2605104831.A16 2605104831	-
802 - DC MOTOR 18V BSD-2607022960.A31 2607022960	-
808 - NAMEPLATE BSD-160111A3H4.A13 160111A3H4	-
826 - HOUSING COVER BSD-2605500906.A8 2605500906	-
833 - ECCENTRIC COG WHEEL BSD-1609200910.A3 1609200910	-
834 - SET OF KNIVES 100 MM BSD-1609200908.A5 1609200908	-
841 - CHARGING TRANSFORMER GB 240/7.2V. 1h BSD-2607224906.A5 2607224906	-
845 - PARTS SET BSD-2607010227.A2 2607010227	-
847 - CABLE BSD-2604412900.A4 2604412900	-
850 - CONNECTING CABLE L=63 MM BSD-2604412023.A17 2604412023	-
851 - BATTERY SET 7.2V BSD-1609200914.A1 1609200914	-

Attribute Name	Value
Brand	Bosch
