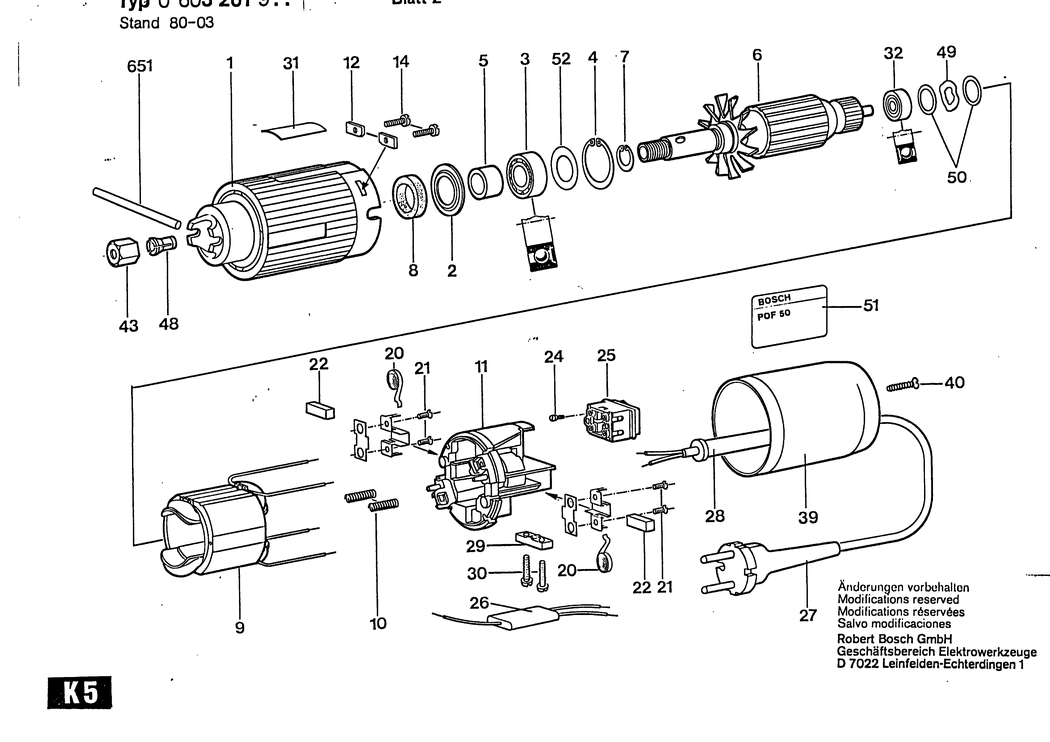

1 - MOTOR HOUSING
BSD-2605102014.A4
2605102014
|
-
|
|
|
|
2 - CUPPED WASHER
BSD-2600500033.A43
2600500033
|
£1.95
|
£2.34
|
|
|
3 - GROOVE BALL BEARING dia 8 MM
BSD-2600905005.A8
2600905005
|
-
|
|
|
|
4 - RETAINING CLIP DIN 472-32x1.2 MM
BSD-2916660013.A604
2916660013
|
£1.95
|
£2.34
|
|
|
5 - BUSHING
BSD-2600300062.A23
2600300062
|
-
|
|
|
|
6 - ARMATURE 220V
BSD-2604010355.A6
2604010355
|
-
|
|
|
|
7 - RETAINING CLIP DIN 471-15x1-FSt
BSD-2916650006.A188
2916650006
|
£1.66
|
£1.99
|
|
|
8 - FELT WASHER
BSD-2600108033.A100
2600108033
|
£1.66
|
£1.99
|
|
|
9 - FIELD 220V
BSD-2604220251.A2
2604220251
|
-
|
|
|
|
10 - COMPRESSION SPRING
BSD-2604611024.A45
2604611024
|
£1.95
|
£2.34
|
|
|
11 - COMMUTATOR END SHIELD
BSD-2605808900.A5
2605808900
|
-
|
|
|
|
12 - SQUARE NUT M4
BSD-2603320001.A180
2603320001
|
£1.66
|
£1.99
|
|
|
14 - SOCKET HEAD CAP SCREW DIN 84-AM4x12-8.8
BSD-2910021122.A355
2910021122
|
£1.66
|
£1.99
|
|
|
20 - SPIRAL SPRING
BSD-1604652004.A32
1604652004
|
£2.33
|
£2.80
|
|
|
21 - TAPPING SCREW DIN 7972-BZ2.9x6.5
BSD-2910601004.A106
2910601004
|
-
|
|
|
|
22 - CARBON BRUSH
BSD-1604321900.A128
1604321900
|
-
|
|
|
|
24 - SOCKET HEAD CAP SCREW M3x6.5-4.8
BSD-2603410001.A1663
2603410001
|
£1.66
|
£1.99
|
|
|
25 - ON-OFF SWITCH
BSD-2607200048.A64
2607200048
|
-
|
|
|
|
26 - SUPPRESSION CAPACITOR
BSD-2607329056.A53
2607329056
|
-
|
|
|
|
28 - GROMMET dia8.3-dia9.4x95 MM
BSD-2600703011.A735
2600703011
|
£2.80
|
£3.36
|
|
|
28 - GROMMET dia6.5-dia6.9x95 MM
BSD-2600703012.A454
2600703012
|
£2.80
|
£3.36
|
|
|
28 - GROMMET dia7.6-dia8.2x95 MM
BSD-2600703013.A691
2600703013
|
£2.33
|
£2.80
|
|
|
29 - CABLE CLIP
BSD-2601035001.A2174
2601035001
|
£1.66
|
£1.99
|
|
|
30 - TORX OVAL-HEAD SCREW 4x12
BSD-2603490021.A186
2603490021
|
£1.66
|
£1.99
|
|
|
31 - NAMEPLATE
BSD-2601100038.A68
2601100038
|
-
|
|
|
|
32 - GROOVE BALL BEARING 6x19x6
BSD-1900905019.A280
1900905019
|
£14.91
|
£17.89
|
|
|
39 - HOUSING COVER
BSD-2600508008.A4
2600508008
|
-
|
|
|
|
39 - HOUSING COVER
BSD-2600508028.A56
2600508028
|
-
|
|
|
|
40 - REC CT-SUNK TAPPING SCREW BZ 3.9x19 DIN 7972
BSD-2910601020.A6
2910601020
|
-
|
|
|
|
43 - UNION NUT SW 14
BSD-2603312001.A37
2603312001
|
-
|
|
|
|
48 - COLLET dia 6 MM / dia 8 MM
BSD-2608570065.A33
2608570065
|
-
|
|
|
|
48 - COLLET dia 6.4 MM=1/4/dia 8 MM
BSD-2608570066.A0
2608570066
|
£12.45
|
£14.94
|
|
|
49 - SHIM
BSD-2600150003.A67
2600150003
|
£1.95
|
£2.34
|
|
|
50 - SHIM 0.2 MM
BSD-2600101655.A71
2600101655
|
-
|
|
|
|
50 - SHIM 0.3 MM
BSD-2600101656.A110
2600101656
|
-
|
|
|
|
50 - SHIM 0.5 MM
BSD-2600101657.A71
2600101657
|
-
|
|
|
|
51 - STICKER
BSD-2601110238.A1
2601110238
|
-
|
|
|
|
52 - SHIM 0.1 MM
BSD-1600102626.A18
1600102626
|
£1.66
|
£1.99
|
|
|
100 - MILLING FIXTURE
BSD-2607030900.A4
2607030900
|
-
|
|
|
|
101 - BASE PLATE
BSD-2608000014.A7
2608000014
|
-
|
|
|
|
102 - COMPRESSION SPRING
BSD-2604617001.A14
2604617001
|
£1.32
|
£1.58
|
|
|
103 - DEPTH MEASURE
BSD-2601010052.A25
2601010052
|
-
|
|
|
|
104 - WING SCREW
BSD-1603480003.A50
1603480003
|
-
|
|
|
|
105 - GUIDE PLATE
BSD-2608005014.A19
2608005014
|
-
|
|
|
|
106 - KNURLED THUMBSCREW
BSD-1603501018.A8
1603501018
|
£2.52
|
£3.02
|
|
|
107 - ADJUSTING NUT
BSD-2603345015.A5
2603345015
|
-
|
|
|
|
108 - COMPRESSION SPRING
BSD-2604611008.A5
2604611008
|
-
|
|
|
|
109 - DETENT PIN
BSD-1603129014.A5
1603129014
|
£5.01
|
£6.01
|
|
|
110 - HEX SCREW DIN 931-M8x60-8.8
BSD-2911001258.A23
2911001258
|
-
|
|
|
|
111 - STAR KNOB
BSD-1603349014.A0
1603349014
|
£3.34
|
£4.01
|
|
|
112 - PRESSURE SPINDLE
BSD-2603200020.A25
2603200020
|
-
|
|
|
|
113 - HANDLE
BSD-1603481001.A2
1603481001
|
-
|
|
|
|
114 - MANUFACTURER'S NAMEPLATE
BSD-1601110013.A272
1601110013
|
-
|
|
|
|
115 - PLAIN WASHER DIN 9021-A6.4-ST
BSD-2916011884.A18
2916011884
|
-
|
|
|
|
116 - SOCKET HEAD CAP SCREW DIN 84-AM6x16-5.8
BSD-2910011191.A17
2910011191
|
-
|
|
|
|
117 - PLAIN WASHER 8.4 DIN 433-ST
BSD-2916011015.A8
2916011015
|
£1.66
|
£1.99
|
|
|
650 - SINGLE-HEAD ENG. WRENCH SW 14
BSD-1907950508.A5
1907950508
|
£14.91
|
£17.89
|
|
|
651 - STRAIGHT PIN 4x60 MM
BSD-2603101035.A11
2603101035
|
£2.80
|
£3.36
|
|
|
654 - TOOL GUIDE
BSD-2602053000.A20
2602053000
|
-
|
|
|
|
655 - GUIDE PLATE
BSD-2607000032.A3
2607000032
|
-
|
|
|
|
656 - COUNTERSUNK-HEAD SCREW M 6x16 DIN 963-4.8
BSD-2910761197.A0
2910761197
|
-
|
|
|
|
657 - SOCKET HEAD CAP SCREW DIN 84-AM6x16-5.8
BSD-2910011191.A16
2910011191
|
-
|
|
|
|
658 - GUIDING BOLT
BSD-2603102007.A17
2603102007
|
-
|
|
|
|
659 - EDGE GUIDE
BSD-2607000067.A4
2607000067
|
-
|
|
|
|
660 - WING SCREW
BSD-1603480003.A51
1603480003
|
-
|
|
|
|
661 - FLUID-LEVEL GAUGE
BSD-2607000033.A21
2607000033
|
-
|
|
|
|
662 - GUIDE ROLLER
BSD-2607000031.A21
2607000031
|
-
|
|
|
|
663 - HEX NUT DIN 934-M6-8-A
BSD-2915011007.A442
2915011007
|
-
|
|
|
|
665 - GUIDE-PLATE
BSD-2601332007.A8
2601332007
|
-
|
|
|
|
669 - WOOD CUTTER dia 6.0 MM
BSD-1608857615.A2
1608857615
|
-
|
|
|
|
669 - WOOD CUTTER dia 1/4 MM
BSD-1609200355.A3
1609200355
|
-
|
|
|
|
888 - NAMEPLATE
BSD-160111A3H3.A4439
160111A3H3
|
£2.33
|
£2.80
|
|
