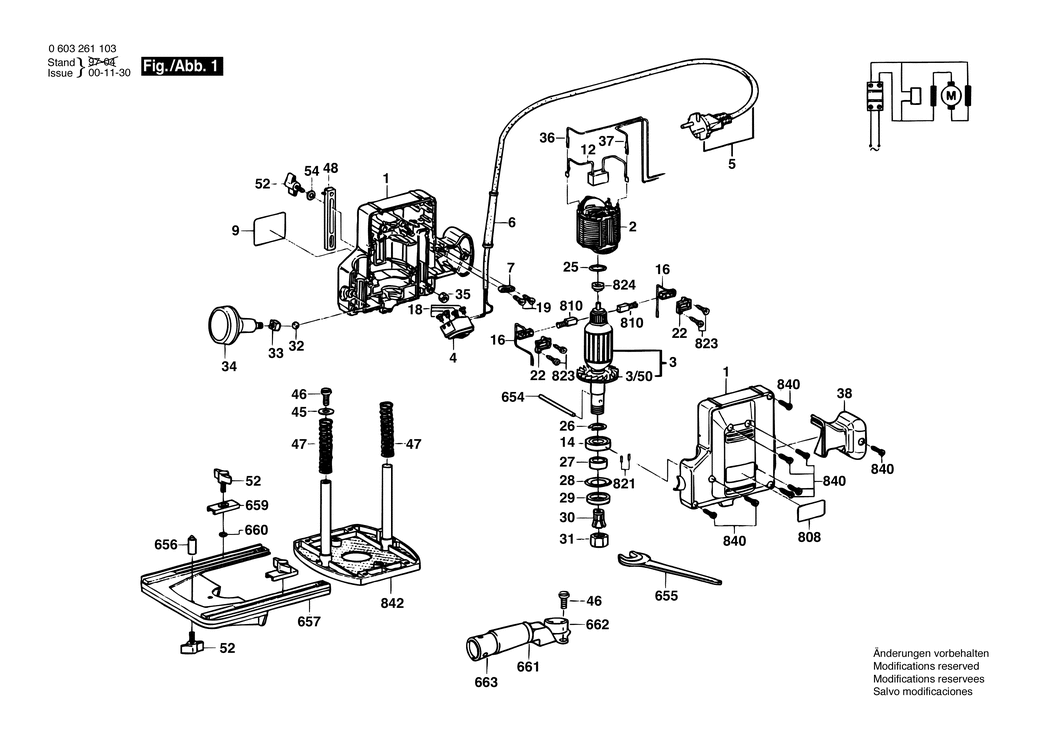

1 - HOUSING SECTION
BSD-2605104994.A4
2605104994
|
-
|
|
|
|
2 - FIELD 220-240V
BSD-2604220423.A98
2604220423
|
£24.45
|
£29.34
|
|
|
3 - ARMATURE 220V
BSD-2604010658.A7
2604010658
|
-
|
|
|
|
3/50 - FAN
BSD-2606610027.A171
2606610027
|
£2.80
|
£3.36
|
|
|
4 - SWITCH
BSD-2607200199.A10
2607200199
|
-
|
|
|
|
5 - POWER SUPPLY CORD I / BR 2.65m 2 x 1.0mm H05 VV-F
BSD-2604460282.A0
2604460282
|
£16.41
|
£19.69
|
|
|
6 - GROMMET dia6.5-dia6.9x95 MM
BSD-2600703012.A976
2600703012
|
£2.80
|
£3.36
|
|
|
9 - MANUFACTURER'S NAMEPLATE
BSD-2601118929.A2
2601118929
|
-
|
|
|
|
14 - GROOVE BALL BEARING 15x32x9
BSD-2600905017.A27
2600905017
|
£10.10
|
£12.12
|
|
|
16 - BRUSH HOLDER
BSD-2604449026.A77
2604449026
|
£1.75
|
£2.10
|
|
|
18 - SOCKET HEAD CAP SCREW M3x6.5-4.8
BSD-2603410001.A423
2603410001
|
£1.75
|
£2.10
|
|
|
22 - BRUSH PLATE
BSD-2601015054.A61
2601015054
|
-
|
|
|
|
25 - O-RING 15x2 MM
BSD-1900210012.A40
1900210012
|
£1.75
|
£2.10
|
|
|
26 - RETAINING CLIP DIN 471-15x1-FSt
BSD-2916650006.A494
2916650006
|
£1.75
|
£2.10
|
|
|
27 - BUSHING
BSD-2600300062.A7
2600300062
|
-
|
|
|
|
28 - CUPPED WASHER
BSD-2600500033.A96
2600500033
|
£2.61
|
£3.13
|
|
|
29 - FELT WASHER
BSD-2600108033.A72
2600108033
|
£1.75
|
£2.10
|
|
|
30 - COLLET
BSD-2608570005.A1
2608570005
|
£14.91
|
£17.89
|
|
|
31 - UNION NUT SW 17. dia 18.5 MM
BSD-2603312006.A9
2603312006
|
£6.52
|
£7.83
|
|
|
32 - BALL dia 6.5 MM
BSD-2603230000.A8
2603230000
|
-
|
|
|
|
33 - SQUARE NUT M8
BSD-2603320003.A74
2603320003
|
£1.75
|
£2.10
|
|
|
34 - HANDLE
BSD-1603481001.A45
1603481001
|
-
|
|
|
|
35 - HEX NUT DIN 934-M6-8-A
BSD-2915011007.A1277
2915011007
|
-
|
|
|
|
38 - HOUSING COVER
BSD-2605500083.A5
2605500083
|
-
|
|
|
|
45 - PLAIN WASHER
BSD-2600101109.A6
2600101109
|
-
|
|
|
|
46 - SOCKET HEAD CAP SCREW DIN 84-AM6x16-5.8
BSD-2910011191.A70
2910011191
|
-
|
|
|
|
47 - COMPRESSION SPRING
BSD-2604617001.A6
2604617001
|
£1.32
|
£1.58
|
|
|
48 - DEPTH-GAUGE
BSD-2602316006.A10
2602316006
|
-
|
|
|
|
52 - WING SCREW M 6x16 MM
BSD-2603480003.A94
2603480003
|
£2.61
|
£3.13
|
|
|
54 - PLAIN WASHER DIN 125-A 6.4-ST
BSD-2916011014.A116
2916011014
|
£1.75
|
£2.10
|
|
|
654 - STRAIGHT PIN 4x60 MM
BSD-2603101035.A150
2603101035
|
£2.80
|
£3.36
|
|
|
655 - SINGLE-HEAD ENG. WRENCH SW17
BSD-2607950511.A591
2607950511
|
£4.26
|
£5.11
|
|
|
656 - GUIDING BOLT
BSD-2603102004.A4
2603102004
|
-
|
|
|
|
657 - EDGE GUIDE
BSD-2608005016.A3
2608005016
|
-
|
|
|
|
659 - CLAMPING PIECE
BSD-2608040024.A9
2608040024
|
-
|
|
|
|
660 - O-RING 4.0x1.5 MM
BSD-1610210043.A121
1610210043
|
£1.75
|
£2.10
|
|
|
661 - SUCTION NOZZLE
BSD-2605730024.A4
2605730024
|
£8.67
|
£10.41
|
|
|
662 - PROTECTIVE RING
BSD-2605730034.A6
2605730034
|
-
|
|
|
|
663 - HOSE FITTING dia30xdia36x66 MM
BSD-1600306008.A13
1600306008
|
-
|
|
|
|
808 - NAMEPLATE
BSD-160111A3H3.A1399
160111A3H3
|
£2.61
|
£3.13
|
|
|
810 - CARBON-BRUSH SET
BSD-2604321905.A679
2604321905
|
£11.30
|
£13.56
|
|
|
821 - RUBBER PLUG
BSD-2603239010.A26
2603239010
|
-
|
|
|
|
823 - TAPPING SCREW DIN 7981-ST2.9x13-C-H
BSD-2910611006.A99
2910611006
|
£1.75
|
£2.10
|
|
|
824 - BUSHING
BSD-2600420900.A13
2600420900
|
-
|
|
|
|
840 - SCREW 4x16
BSD-2603490022.A1365
2603490022
|
£1.75
|
£2.10
|
|
|
842 - BASE PLATE
BSD-2608000902.A9
2608000902
|
-
|
|
|
