Bosch POF 1300 ACE / 3603B6C730 / CH 230 Volt Spare Parts

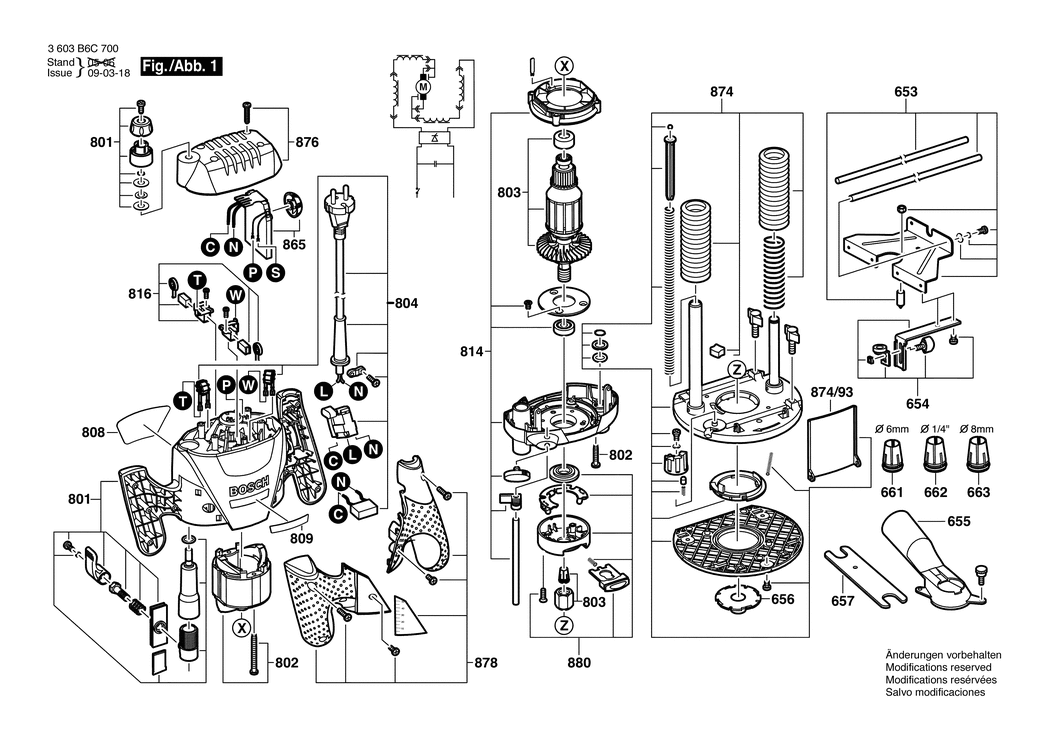

An exploded drawing and listing for the Bosch POF 1300 ACE / 3603B6C730 / CH 230 Volt

	Ex VAT	Inc VAT
653 - PARALLEL-GUIDE BSD-1609203M85.A0 1609203M85	-
654 - STUD-TYPE TRACK ROLLER BSD-1609203M86.A5 1609203M86	-
655 - SUCTION PIECE BSD-1609203M87.A0 1609203M87	-
656 - SLEEVE BSD-1609203N05.A1 1609203N05	-
657 - OPEN-END SPANNER BSD-1609203N06.A4 1609203N06	-
661 - UNION NUT BSD-1609203N08.A1 1609203N08	-
662 - UNION NUT 1/4 BSD-1609203N38.A5 1609203N38	-
663 - UNION NUT D 8 BSD-1609203N52.A4 1609203N52	-
801 - MOTOR HOUSING BSD-1609203M91.A2 1609203M91	-
802 - FIELD 230V BSD-1609203N03.A1 1609203N03	£33.74	£40.49
803 - ARMATURE 230V BSD-1609203R66.A0 1609203R66	-
804 - ON-OFF SWITCH BSD-1609203N15.A0 1609203N15	-
808 - NAMEPLATE BSD-1601118G22.A0 1601118G22	-
809 - MANUFACTURER'S NAMEPLATE POF 1300 ACE BSD-1601118F66.A1 1601118F66	-
814 - GUIDE COMPONENT BSD-1609203M95.A2 1609203M95	-
816 - BRUSH HOLDER BSD-1609203M96.A3 1609203M96	-
865 - SPEED GOVERNOR 230V BSD-1609203N09.A0 1609203N09	-
874 - BASE PLATE BSD-1609203N10.A2 1609203N10	-
874/93 - CHIP DEFLECTOR BSD-1609203P06.A4 1609203P06	£6.52	£7.83
876 - HOUSING COVER BSD-1609203N11.A0 1609203N11	£6.61	£7.93
878 - HANDLE COVER BSD-1609203N00.A4 1609203N00	£18.96	£22.75
880 - PUSHER HOUSING BSD-1609203R68.A1 1609203R68	£30.28	£36.33
