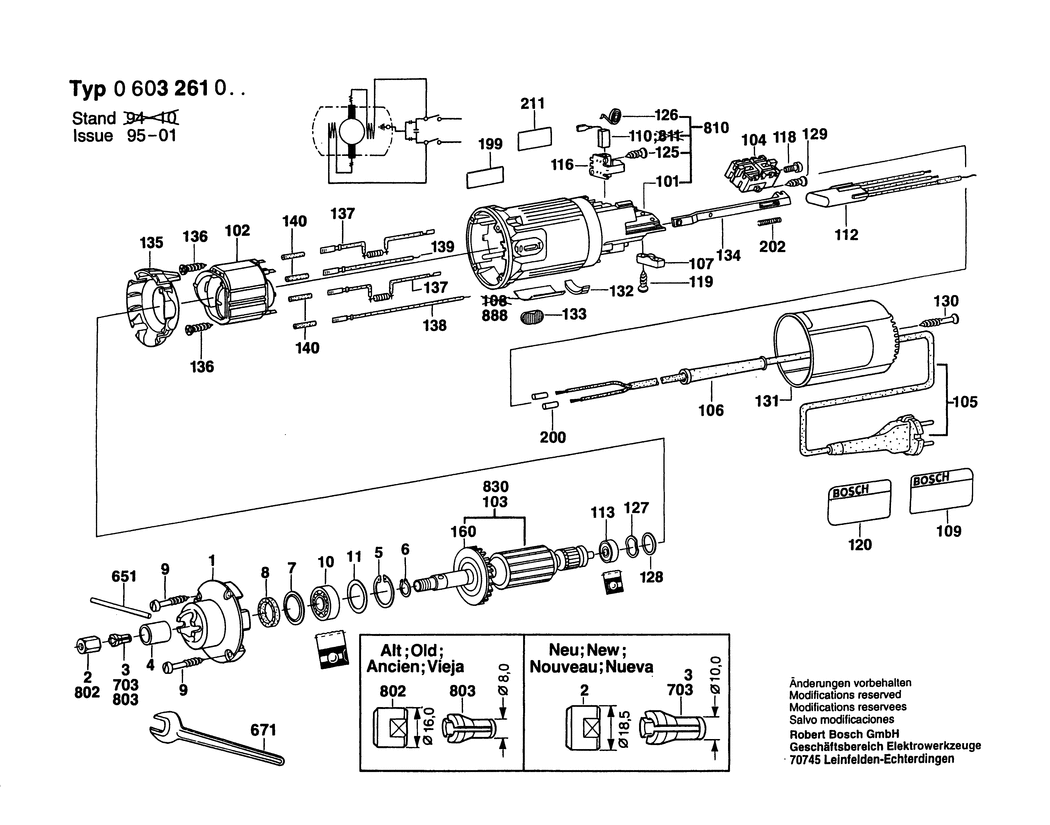

1 - SPINDLE HOUSING
BSD-2605806376.A27
2605806376
|
-
|
|
|
|
2 - ROUND NUT
BSD-3603342009.A58
3603342009
|
£14.91
|
£17.89
|
|
|
2 - UNION NUT SW 14
BSD-2603312001.A20
2603312001
|
-
|
|
|
|
3 - COLLET dia 6 MM / dia 10 MM
BSD-2608570047.A26
2608570047
|
£10.82
|
£12.99
|
|
|
3 - COLLET dia 6.4MM=1/4 / dia 10MM
BSD-2608570048.A19
2608570048
|
£12.49
|
£14.99
|
|
|
3 - COLLET dia 8 MM / dia 10 MM
BSD-2608570049.A26
2608570049
|
£12.49
|
£14.99
|
|
|
4 - SEAL BUSHING
BSD-2600300073.A22
2600300073
|
£6.52
|
£7.83
|
|
|
5 - RETAINING CLIP DIN 472-32x1.2 MM
BSD-2916660013.A267
2916660013
|
£1.95
|
£2.34
|
|
|
6 - RETAINING CLIP DIN 471-15x1-FSt
BSD-2916650006.A504
2916650006
|
£1.66
|
£1.99
|
|
|
7 - CUPPED WASHER
BSD-2600500033.A112
2600500033
|
£1.95
|
£2.34
|
|
|
8 - FELT WASHER
BSD-2600108033.A80
2600108033
|
£1.66
|
£1.99
|
|
|
9 - TAPPING SCREW DIN 7971-BZ3.9x19
BSD-2910211020.A142
2910211020
|
£1.66
|
£1.99
|
|
|
10 - GROOVE BALL BEARING 15x32x9
BSD-2600905017.A15
2600905017
|
£10.10
|
£12.12
|
|
|
11 - SHIM 0.1 MM
BSD-1600102626.A61
1600102626
|
£1.66
|
£1.99
|
|
|
101 - MOTOR HOUSING
BSD-2605108905.A6
2605108905
|
-
|
|
|
|
102 - FIELD 220-230V
BSD-2604220445.A70
2604220445
|
£27.23
|
£32.68
|
|
|
103 - ARMATURE 220-230V
BSD-2604010692.A2
2604010692
|
£81.81
|
£98.17
|
|
|
104 - SWITCH
BSD-2607200674.A1
2607200674
|
£16.41
|
£19.69
|
|
|
105 - POWER SUPPLY CORD EU 2.65m 2 x 1.0mm H05 RN-F
BSD-1607000388.A59
1607000388
|
£12.04
|
£14.45
|
|
|
106 - GROMMET dia6.5-dia6.9x95 MM
BSD-2600703012.A987
2600703012
|
£2.80
|
£3.36
|
|
|
107 - CABLE CLIP
BSD-2601035001.A494
2601035001
|
£1.66
|
£1.99
|
|
|
109 - STICKER
BSD-2601110640.A4
2601110640
|
-
|
|
|
|
110 - CARBON-BRUSH SET
BSD-2604320912.A24
2604320912
|
£10.10
|
£12.12
|
|
|
112 - SUPPRESSION FILTER
BSD-2607329104.A136
2607329104
|
£10.10
|
£12.12
|
|
|
113 - GROOVE BALL BEARING 7x22x7
BSD-2600905018.A30
2600905018
|
-
|
|
|
|
116 - BRUSH HOLDER
BSD-1600A003G4.A242
1600A003G4
|
£3.72
|
£4.47
|
|
|
118 - SOCKET HEAD CAP SCREW M3x6.5-4.8
BSD-2603410001.A431
2603410001
|
£1.66
|
£1.99
|
|
|
119 - TAPPING SCREW DIN 7981-ST3.9x19-C-H
BSD-2910611020.A339
2910611020
|
£1.66
|
£1.99
|
|
|
120 - REFERENCE PLATE
BSD-2601110695.A1
2601110695
|
-
|
|
|
|
125 - TAPPING SCREW DIN 7981-ST2.9x13-C-H
BSD-2910611006.A111
2910611006
|
£1.66
|
£1.99
|
|
|
126 - SPIRAL SPRING
BSD-1604652013.A601
1604652013
|
£1.66
|
£1.99
|
|
|
127 - SHIM
BSD-2600150004.A233
2600150004
|
£1.95
|
£2.34
|
|
|
128 - SHIM 0.3 MM
BSD-2600101023.A8
2600101023
|
£1.66
|
£1.99
|
|
|
128 - SHIM 0.2 MM
BSD-2600101022.A642
2600101022
|
£1.66
|
£1.99
|
|
|
128 - SHIM 0.5 MM
BSD-2600101020.A8
2600101020
|
£1.66
|
£1.99
|
|
|
129 - TAPPING SCREW DIN 7971-BZ2.9x16
BSD-2910211007.A70
2910211007
|
£1.66
|
£1.99
|
|
|
130 - TAPPING SCREW DIN 7982-BZ3.9x22
BSD-2910601421.A5
2910601421
|
-
|
|
|
|
131 - HOUSING COVER
BSD-2600508040.A7
2600508040
|
-
|
|
|
|
132 - INTERMEDIATE PIECE
BSD-2600026002.A9
2600026002
|
-
|
|
|
|
133 - SWITCH HANDLE
BSD-2602026015.A87
2602026015
|
£1.66
|
£1.99
|
|
|
133 - SWITCH HANDLE
BSD-2602206014.A4
2602206014
|
-
|
|
|
|
134 - ADJUSTING SLIDE
BSD-2602319005.A96
2602319005
|
£1.66
|
£1.99
|
|
|
135 - COVER DISC
BSD-2601328045.A102
2601328045
|
£1.95
|
£2.34
|
|
|
136 - TAPPING SCREW
BSD-2603435086.A250
2603435086
|
£1.66
|
£1.99
|
|
|
137 - SUPPRESSOR BOX
BSD-2604465106.A49
2604465106
|
£4.26
|
£5.11
|
|
|
137 - CONNECTING CABLE L=88 MM
BSD-2604448034.A207
2604448034
|
£1.66
|
£1.99
|
|
|
138 - CONNECTING CABLE L=125MM
BSD-2604448040.A6
2604448040
|
£2.33
|
£2.80
|
|
|
139 - CONNECTING CABLE L=68MM
BSD-2604448039.A35
2604448039
|
£1.95
|
£2.34
|
|
|
651 - STRAIGHT PIN 4x60 MM
BSD-2603101035.A134
2603101035
|
£2.80
|
£3.36
|
|
|
671 - SINGLE-HEAD ENG. WRENCH SW17
BSD-2607950511.A582
2607950511
|
£4.26
|
£5.11
|
|
|
700 - EDGE CUTTER ATTACHMENT
BSD-2607020301.A16
2607020301
|
-
|
|
|
|
701 - ROUTER ATTACHMENT
BSD-2607020300.A3
2607020300
|
-
|
|
|
|
830 - ARMATURE 220-230V
BSD-2604010915.A2
2604010915
|
£89.79
|
£107.75
|
|
|
888 - NAMEPLATE
BSD-160111A3H3.A1372
160111A3H3
|
£2.33
|
£2.80
|
|
