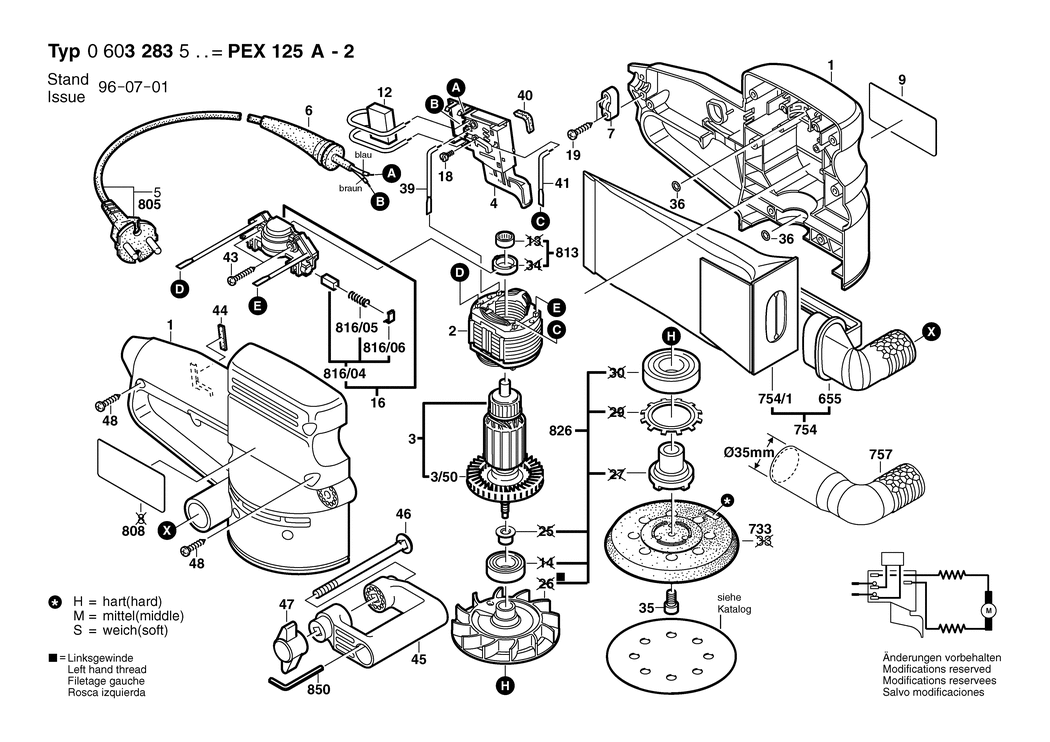

1 - HOUSING SECTION
BSD-2605104288.A15
2605104288
|
-
|
|
|
|
2 - FIELD 230V
BSD-2604220538.A14
2604220538
|
-
|
|
|
|
3 - ARMATURE 230-240V
BSD-2604011018.A15
2604011018
|
-
|
|
|
|
3/50 - FAN
BSD-2606610079.A16
2606610079
|
-
|
|
|
|
4 - ON-OFF SWITCH
BSD-2607200376.A11
2607200376
|
-
|
|
|
|
5 - POWER SUPPLY CORD GB 240V 2.65m 2 x 1.0mm H05 VV-F
BSD-2604460124.A35
2604460124
|
-
|
|
|
|
6 - GROMMET dia7 MM
BSD-2600703007.A220
2600703007
|
-
|
|
|
|
7 - CABLE CLIP
BSD-2601035004.A167
2601035004
|
£2.27
|
£2.72
|
|
|
9 - MANUFACTURER'S NAMEPLATE
BSD-2601119426.A1
2601119426
|
-
|
|
|
|
12 - SUPPRESSION FILTER
BSD-1607328028.A47
1607328028
|
£5.57
|
£6.68
|
|
|
16 - BRUSH PLATE
BSD-2604337118.A116
2604337118
|
£23.86
|
£28.63
|
|
|
18 - SOCKET HEAD CAP SCREW M3x6.5-4.8
BSD-2603410001.A2070
2603410001
|
£1.84
|
£2.21
|
|
|
19 - TORX OVAL-HEAD SCREW 4x12
BSD-2603490021.A86
2603490021
|
£1.84
|
£2.21
|
|
|
35 - HEX SOCKET HEAD CAP SCREW DIN 7984-M6x16-10.9
BSD-2910975197.A42
2910975197
|
-
|
|
|
|
36 - O-RING 5.0x1.75 MM
BSD-2600210036.A39
2600210036
|
-
|
|
|
|
39 - CONNECTING CABLE L=154 MM
BSD-2604448000.A170
2604448000
|
-
|
|
|
|
40 - DAMPING PLATE
BSD-2601022000.A104
2601022000
|
£1.75
|
£2.10
|
|
|
41 - CABLE L=233 MM
BSD-1614431010.A102
1614431010
|
£3.72
|
£4.47
|
|
|
43 - TORX OVAL-HEAD SCREW 4x20
BSD-2603490023.A315
2603490023
|
£1.84
|
£2.21
|
|
|
44 - SEAL STRIP
BSD-2602380003.A32
2602380003
|
£1.32
|
£1.58
|
|
|
45 - AUXILIARY HANDLE
BSD-2602025058.A6
2602025058
|
-
|
|
|
|
46 - ROUND-HEAD BOLT DIN 603-M6x110
BSD-2910285226.A6
2910285226
|
£1.84
|
£2.21
|
|
|
47 - WING NUT M6
BSD-1603339006.A303
1603339006
|
£2.64
|
£3.17
|
|
|
48 - SCREW 4x16
BSD-2603490022.A2558
2603490022
|
£1.84
|
£2.21
|
|
|
655 - FITTING
BSD-2605702029.A4
2605702029
|
-
|
|
|
|
733 - BACKING PAD dia 125 MM
BSD-2608601061.A14
2608601061
|
£11.02
|
£13.22
|
|
|
733 - BACKING PAD dia 125 MM
BSD-2608601062.A3
2608601062
|
£11.02
|
£13.22
|
|
|
733 - BACKING PAD dia 125 MM
BSD-2608601063.A14
2608601063
|
£10.82
|
£12.99
|
|
|
754 - DUST BAG
BSD-2605411025.A9
2605411025
|
-
|
|
|
|
754 - DUST BAG
BSD-2605411067.A6
2605411067
|
£6.12
|
£7.34
|
|
|
754 - DUST BAG
BSD-2605411068.A33
2605411068
|
£14.69
|
£17.63
|
|
|
754 - DUST BAG
BSD-2605411096.A3
2605411096
|
£19.28
|
£23.14
|
|
|
757 - FITTING dia 35 MM
BSD-2600499045.A1
2600499045
|
-
|
|
|
|
808 - NAMEPLATE
BSD-2601119429.A0
2601119429
|
-
|
|
|
|
813 - CARTRIDGE BEARING
BSD-2605805005.A39
2605805005
|
-
|
|
|
|
816/04 - CARBON-BRUSH SET
BSD-2604321905.A187
2604321905
|
£11.87
|
£14.24
|
|
|
816/05 - COMPRESSION SPRING
BSD-2604610026.A111
2604610026
|
£2.61
|
£3.13
|
|
|
816/06 - RATCHET CAP
BSD-2601322013.A394
2601322013
|
£1.84
|
£2.21
|
|
|
826 - FAN
BSD-2606610902.A8
2606610902
|
-
|
|
|
|
850 - OFFSET SCREWDRIVER DIN 911-4
BSD-2607950004.A424
2607950004
|
£1.84
|
£2.21
|
|
