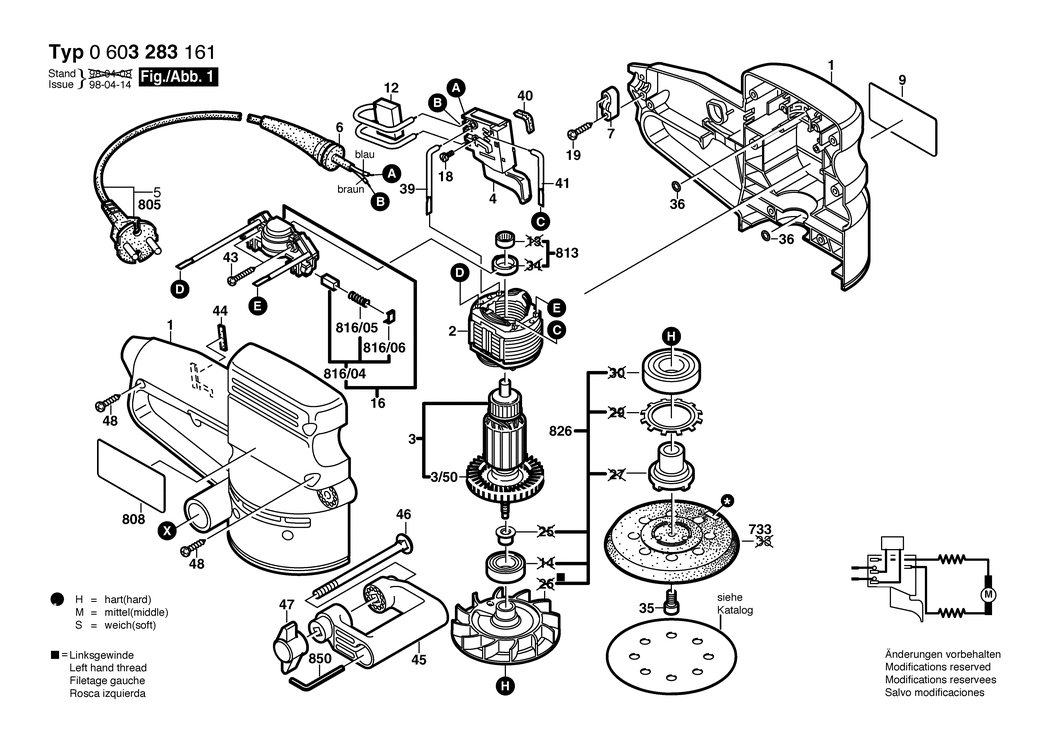

1 - HOUSING SECTION
BSD-2605104654.A0
2605104654
|
-
|
|
|
|
2 - FIELD 230V
BSD-2604220538.A4
2604220538
|
-
|
|
|
|
3 - ARMATURE 230-240V
BSD-2604011018.A4
2604011018
|
-
|
|
|
|
3/50 - FAN
BSD-2606610079.A9
2606610079
|
-
|
|
|
|
4 - SWITCH
BSD-2607200260.A320
2607200260
|
£11.87
|
£14.24
|
|
|
5 - POWER SUPPLY CORD CH 2.65m 2 x 1.0mm H05VV-F
BSD-2604460125.A16
2604460125
|
£8.49
|
£10.19
|
|
|
6 - GROMMET dia7 MM
BSD-2600703007.A225
2600703007
|
-
|
|
|
|
7 - CABLE CLIP
BSD-2601035004.A168
2601035004
|
£2.27
|
£2.72
|
|
|
9 - MANUFACTURER'S NAMEPLATE
BSD-2601119819.A0
2601119819
|
-
|
|
|
|
12 - SUPPRESSION FILTER
BSD-1607328028.A43
1607328028
|
£5.57
|
£6.68
|
|
|
16 - BRUSH PLATE
BSD-2604337118.A120
2604337118
|
£23.86
|
£28.63
|
|
|
18 - SOCKET HEAD CAP SCREW M3x6.5-4.8
BSD-2603410001.A2074
2603410001
|
£1.84
|
£2.21
|
|
|
19 - TORX OVAL-HEAD SCREW 4x12
BSD-2603490021.A90
2603490021
|
£1.84
|
£2.21
|
|
|
35 - HEX SOCKET HEAD CAP SCREW DIN 7984-M6x16-10.9
BSD-2910975197.A48
2910975197
|
-
|
|
|
|
36 - O-RING 5.0x1.75 MM
BSD-2600210036.A44
2600210036
|
-
|
|
|
|
39 - CONNECTING CABLE L=154 MM
BSD-2604448000.A166
2604448000
|
-
|
|
|
|
40 - DAMPING PLATE
BSD-2601022000.A111
2601022000
|
£1.75
|
£2.10
|
|
|
41 - CABLE L=233 MM
BSD-1614431010.A105
1614431010
|
£3.72
|
£4.47
|
|
|
43 - TORX OVAL-HEAD SCREW 4x20
BSD-2603490023.A319
2603490023
|
£1.84
|
£2.21
|
|
|
44 - SEAL STRIP
BSD-2602380003.A29
2602380003
|
£1.32
|
£1.58
|
|
|
45 - AUXILIARY HANDLE
BSD-2602025058.A10
2602025058
|
-
|
|
|
|
46 - ROUND-HEAD BOLT DIN 603-M6x110
BSD-2910285226.A1
2910285226
|
£1.84
|
£2.21
|
|
|
47 - WING NUT M6
BSD-1603339006.A296
1603339006
|
£2.64
|
£3.17
|
|
|
48 - SCREW 4x16
BSD-2603490022.A2554
2603490022
|
£1.84
|
£2.21
|
|
|
654 - DUST BAG
BSD-2605411085.A0
2605411085
|
£3.91
|
£4.69
|
|
|
655 - FITTING
BSD-2605702029.A5
2605702029
|
-
|
|
|
|
733 - BACKING PAD dia 125 MM
BSD-2608601061.A11
2608601061
|
£11.02
|
£13.22
|
|
|
733 - BACKING PAD dia 125 MM
BSD-2608601062.A6
2608601062
|
£11.02
|
£13.22
|
|
|
733 - BACKING PAD dia 125 MM
BSD-2608601063.A11
2608601063
|
£10.82
|
£12.99
|
|
|
808 - NAMEPLATE
BSD-2601119820.A0
2601119820
|
-
|
|
|
|
813 - CARTRIDGE BEARING
BSD-2605805005.A44
2605805005
|
-
|
|
|
|
816/04 - CARBON-BRUSH SET
BSD-2604321905.A181
2604321905
|
£11.87
|
£14.24
|
|
|
816/05 - COMPRESSION SPRING
BSD-2604610026.A115
2604610026
|
£2.61
|
£3.13
|
|
|
816/06 - RATCHET CAP
BSD-2601322013.A388
2601322013
|
£1.84
|
£2.21
|
|
|
826 - FAN
BSD-2606610902.A2
2606610902
|
-
|
|
|
|
850 - OFFSET SCREWDRIVER DIN 911-4
BSD-2607950004.A433
2607950004
|
£1.84
|
£2.21
|
|
