Bosch S 7 / 0603040201 / --- Spare Parts

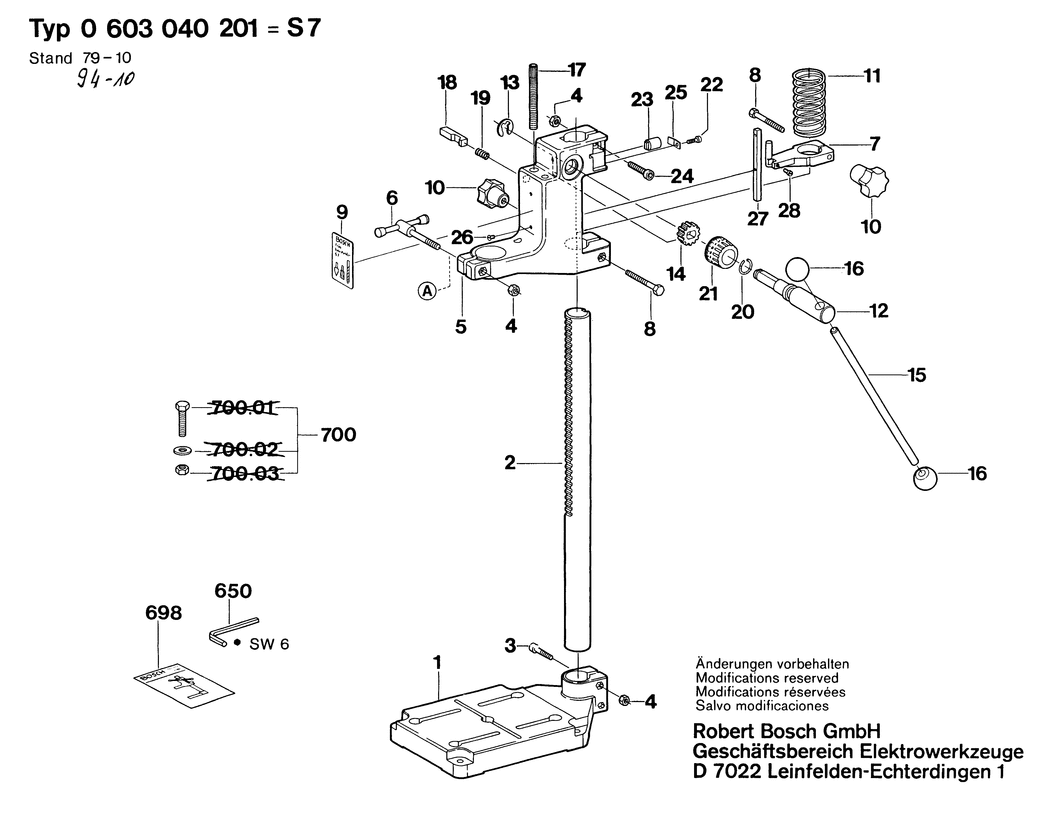

An exploded drawing and listing for the Bosch S 7 / 0603040201 / ---

	Ex VAT	Inc VAT
1 - BASE PLATE BSD-1608000068.A0 1608000068	-
2 - TOOTHED RACK BSD-1603070003.A0 1603070003	-
3 - HEX SOCKET HEAD CAP SCREW DIN 912-M8x35-8.8 BSD-2910141248.A0 2910141248	£1.75	£2.10
4 - HEX NUT DIN 934-M8-8-A BSD-2915011009.A176 2915011009	£2.61	£3.13
5 - GEAR HOUSING BSD-1605190021.A0 1605190021	-
6 - TOMMY SCREW BSD-1603480016.A0 1603480016	-
7 - SUPPORT CLAMP BSD-1608040106.A0 1608040106	-
8 - HEX SCREW DIN 931-M8x60-8.8 BSD-2911001258.A17 2911001258	-
9 - STICKER BSD-1601110090.A0 1601110090	-
10 - STAR KNOB BSD-1603349014.A6 1603349014	£3.34	£4.01
11 - COMPRESSION SPRING BSD-1604616020.A0 1604616020	-
12 - ADJUSTING BOLT BSD-1603123028.A0 1603123028	-
13 - LOCKING WASHER DIN 6799-12-FST BSD-2916080014.A73 2916080014	£1.75	£2.10
14 - CYLINDRICAL GEAR Z=18 BSD-1606317083.A0 1606317083	£2.33	£2.80
15 - LEVER SHAFT BSD-1603101019.A0 1603101019	-
16 - BALL KNOB BSD-1603231007.A0 1603231007	-
17 - KNURLED THUMBSCREW BSD-1603501018.A1 1603501018	£2.52	£3.02
18 - DETENT PIN BSD-1603129014.A7 1603129014	£5.01	£6.01
19 - COMPRESSION SPRING BSD-2604611008.A9 2604611008	-
21 - SCALE RING BSD-1600591005.A0 1600591005	-
22 - SOCKET HEAD CAP SCREW DIN 84-AM5x8-5.8 BSD-2910011150.A5 2910011150	-
23 - GUIDING BOLT BSD-1603123029.A0 1603123029	-
24 - HEX SOCKET HEAD CAP SCREW DIN 912-M8x30-8.8 BSD-2910141246.A21 2910141246	-
25 - LEAF SPRING BSD-1601230005.A0 1601230005	-
26 - COUNTERSUNK-HEAD SCREW M5x10 DIN 963-8.8 BSD-2910781152.A22 2910781152	-
27 - GUIDE BSD-1602300019.A0 1602300019	-
28 - SOCKET HEAD CAP SCREW DIN 84-AM6x10 BSD-1603410011.A0 1603410011	-
29 - PLAIN WASHER DIN 125-A 8.4-ST BSD-2916011016.A90 2916011016	£1.75	£2.10
650 - OFFSET SCREWDRIVER DIN 911;SW6 BSD-1907950007.A93 1907950007	£5.30	£6.36
700 - FASTENING PARTS KIT BSD-1607000095.A0 1607000095	-

Attribute Name	Value
Brand	Bosch
