Bosch S 2 / 0603040301 / --- Spare Parts

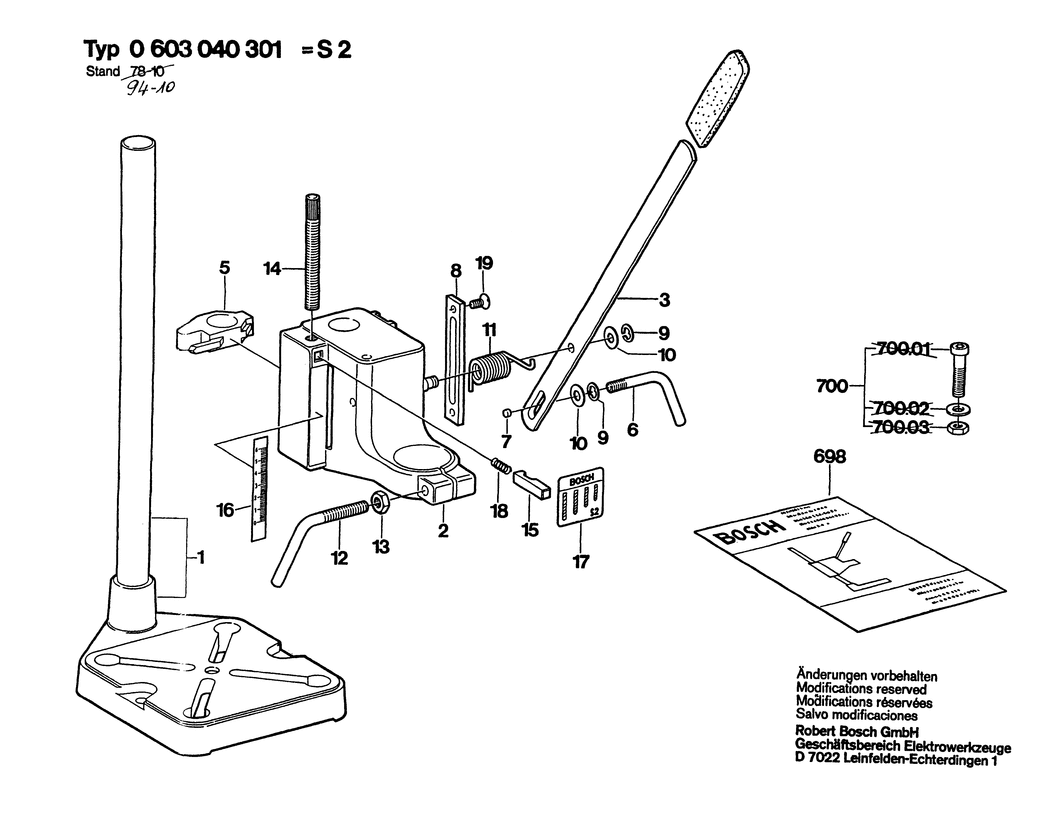

An exploded drawing and listing for the Bosch S 2 / 0603040301 / ---

	Ex VAT	Inc VAT
1 - BASE PLATE BSD-2608000001.A0 2608000001	-
1 - GUIDE COLUMN BSD-2603000011.A0 2603000011	-
2 - DRIVE-MACHINE HOLDER BSD-1605190023.A0 1605190023	-
3 - FEED LEVER BSD-1609390469.A1 1609390469	-
5 - SUPPORT CLAMP BSD-1608040108.A1 1608040108	-
6 - CLAMPING LEVER BSD-2603501015.A0 2603501015	-
7 - PRESSURE SPINDLE BSD-2603200003.A1 2603200003	£2.45	£2.94
8 - GUIDE PLATE BSD-3601015002.A1 3601015002	-
9 - LOCKING WASHER DIN 6799-7-FSt BSD-2916080910.A275 2916080910	£2.16	£2.59
10 - SHIM 0.2 MM BSD-2600100606.A0 2600100606	£1.32	£1.58
11 - COILED SPRING BSD-1604651005.A0 1604651005	-
12 - TOMMY SCREW BSD-2602027038.A1 2602027038	-
13 - HEX NUT DIN 934-M8-8-A BSD-2915011009.A177 2915011009	£2.74	£3.29
14 - KNURLED THUMBSCREW BSD-1603501018.A2 1603501018	£2.52	£3.02
15 - DETENT PIN BSD-1603129014.A8 1603129014	£5.01	£6.01
16 - STICKER BSD-1601110104.A0 1601110104	-
17 - MANUFACTURER'S NAMEPLATE BSD-1601110105.A0 1601110105	-
18 - COMPRESSION SPRING BSD-1234611000.A0 1234611000	-
19 - COUNTERSUNK-HEAD SCREW M5x10 DIN 963-8.8 BSD-2910781152.A23 2910781152	-
650 - REDUCTION SLEEVE dia43.8xdia32.5 MM BSD-1609202560.A0 1609202560	-
700 - FASTENING PARTS KIT BSD-1607000095.A1 1607000095	-
