Bosch PTL 1 / 0603315132 / CH 230 Volt Spare Parts

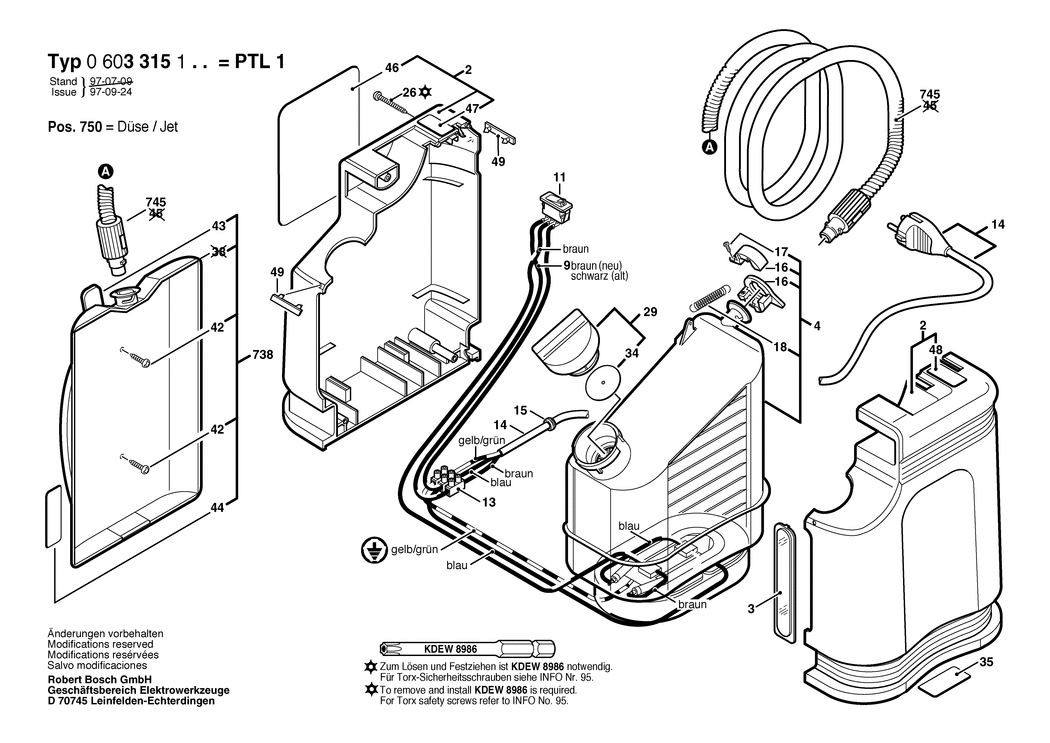

An exploded drawing and listing for the Bosch PTL 1 / 0603315132 / CH 230 Volt

	Ex VAT	Inc VAT
2 - HOUSING SECTION BSD-1609203781.A1 1609203781	-
3 - SIGHT GLASS BSD-1609203336.A5 1609203336	£2.16	£2.59
4 - PLASTIC CONTAINER BSD-1609203782.A0 1609203782	£58.76	£70.51
9 - CONNECTING CABLE BSD-1609203924.A4 1609203924	£3.51	£4.21
9 - CONNECTING CABLE BSD-1609203924.A5 1609203924	£3.51	£4.21
11 - TIP SWITCH BSD-1609203340.A3 1609203340	£11.87	£14.24
13 - SOCKET-TERMINAL STRIP 3x6 MM BSD-1901091013.A35 1901091013	-
14 - POWER SUPPLY CORD BSD-1609203488.A0 1609203488	£14.72	£17.67
15 - GROMMET BSD-1609203342.A5 1609203342	-
16 - BLOCKING BUSH BSD-1609203785.A1 1609203785	£2.74	£3.29
17 - OVAL-HEAD SCREW BSD-1609203786.A2 1609203786	-
18 - EXTENSION SPRING BSD-1609203787.A1 1609203787	-
26 - TORX OVAL-HEAD SCREW dia 4x40 MM BSD-1609203351.A2 1609203351	£1.84	£2.21
29 - RESERVOIR CAP BSD-1609203343.A2 1609203343	-
34 - SEAL BSD-1609203339.A4 1609203339	£1.84	£2.21
35 - NAMEPLATE BSD-1601118785.A0 1601118785	-
42 - OVAL-HEAD SCREW dia 4x16 MM BSD-1609203352.A5 1609203352	£1.75	£2.10
43 - HANDLE BSD-1609203470.A2 1609203470	£3.72	£4.47
44 - REFERENCE PLATE BSD-1601118513.A4 1601118513	-
46 - REFERENCE PLATE BSD-1601118514.A3 1601118514	-
47 - REFERENCE PLATE BSD-1601118516.A3 1601118516	-
48 - REFERENCE PLATE BSD-1601118515.A4 1601118515	-
49 - PICKUP CLIP BSD-1609203477.A5 1609203477	£1.84	£2.21
738 - STEAM DISTRIBUTOR BSD-2609390282.A4 2609390282	£13.74	£16.49
745 - HOSE L= 3.5 M BSD-2609390283.A3 2609390283	-
750 - SPRAYING NOZZLE BSD-2609390284.A4 2609390284	£6.50	£7.80

Attribute Name	Value
Brand	Bosch
