Bosch PTL 1 / 0603315032 / CH 230 Volt Spare Parts

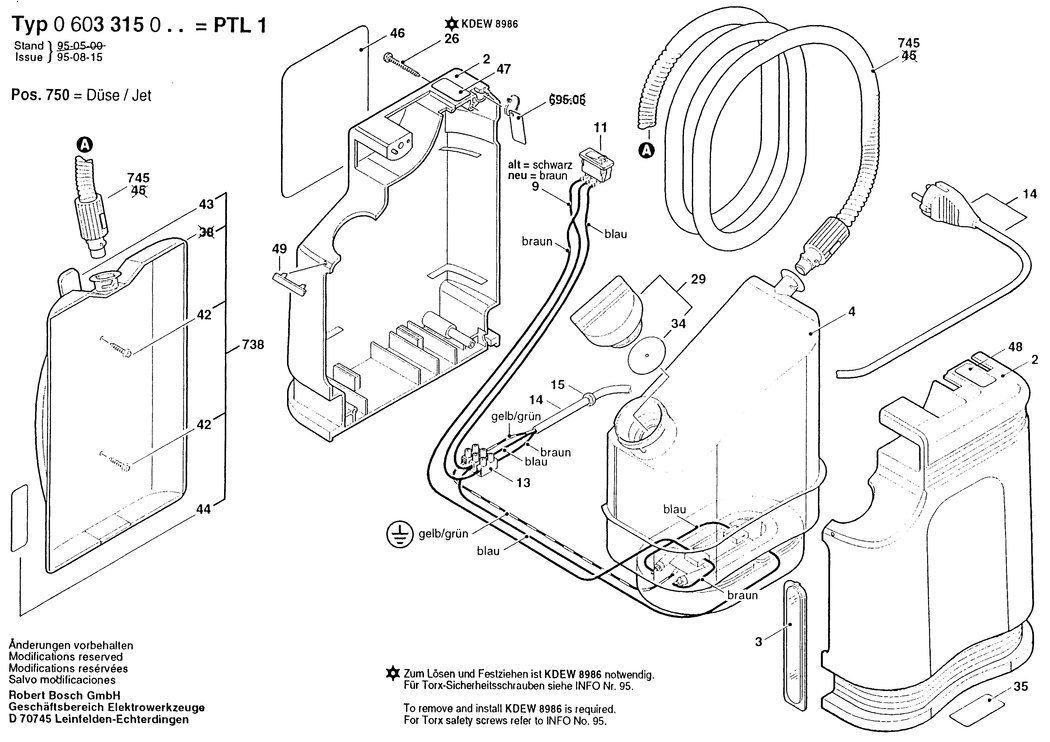

An exploded drawing and listing for the Bosch PTL 1 / 0603315032 / CH 230 Volt

	Ex VAT	Inc VAT
2 - HOUSING SECTION BSD-1609203335.A0 1609203335	-
3 - SIGHT GLASS BSD-1609203336.A7 1609203336	£2.16	£2.59
4 - PLASTIC CONTAINER BSD-1609203337.A0 1609203337	-
9 - CONNECTING CABLE BSD-1609203924.A10 1609203924	£3.34	£4.01
11 - TIP SWITCH BSD-1609203340.A5 1609203340	£11.30	£13.56
13 - SOCKET-TERMINAL STRIP 3x6 MM BSD-1901091013.A36 1901091013	-
14 - POWER SUPPLY CORD BSD-1609203488.A1 1609203488	£14.72	£17.67
15 - GROMMET BSD-1609203342.A3 1609203342	-
26 - TORX OVAL-HEAD SCREW dia 4x40 MM BSD-1609203351.A4 1609203351	£1.75	£2.10
29 - RESERVOIR CAP BSD-1609203343.A5 1609203343	-
34 - SEAL BSD-1609203339.A1 1609203339	£1.75	£2.10
35 - NAMEPLATE BSD-1601118532.A0 1601118532	-
42 - OVAL-HEAD SCREW dia 4x16 MM BSD-1609203352.A3 1609203352	£1.75	£2.10
43 - HANDLE BSD-1609203470.A4 1609203470	£3.72	£4.47
44 - REFERENCE PLATE BSD-1601118513.A0 1601118513	-
46 - REFERENCE PLATE BSD-1601118514.A7 1601118514	-
47 - REFERENCE PLATE BSD-1601118516.A7 1601118516	-
48 - REFERENCE PLATE BSD-1601118515.A1 1601118515	-
49 - PICKUP CLIP BSD-1609203477.A3 1609203477	£1.75	£2.10
738 - STEAM DISTRIBUTOR BSD-2609390282.A3 2609390282	£13.74	£16.49
745 - HOSE L= 3.5 M BSD-2609390283.A4 2609390283	-
750 - SPRAYING NOZZLE BSD-2609390284.A3 2609390284	£6.19	£7.43

Attribute Name	Value
Brand	Bosch
