Bosch PSP 70 / 0603266048 / F 220 Volt Spare Parts

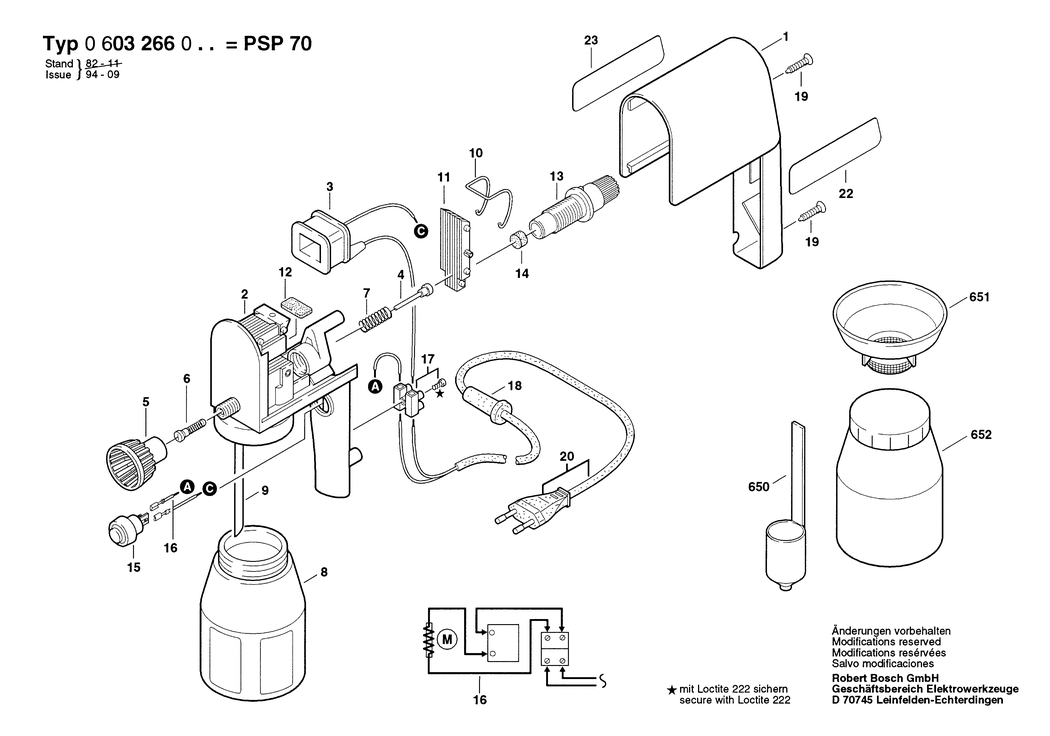

An exploded drawing and listing for the Bosch PSP 70 / 0603266048 / F 220 Volt

	Ex VAT	Inc VAT
1 - HOUSING COVER BSD-1609390362.A0 1609390362	-
2 - PUMP HOUSING BSD-1609390361.A2 1609390361	-
3 - CURRENT COIL 230V BSD-1609390363.A1 1609390363	-
4 - PUMP PISTON BSD-1609390364.A0 1609390364	-
5 - CYLINDRICAL-SPRAY NOZZLE BSD-1609390365.A4 1609390365	-
6 - VACUUM/PRESSURE VALVE BSD-1609390366.A0 1609390366	-
7 - COMPRESSION SPRING BSD-1609390367.A4 1609390367	-
8 - PAINT BEAKER BSD-1609390368.A0 1609390368	£7.78	£9.33
9 - SUCTION PIPE BSD-1609390369.A4 1609390369	-
10 - HOLDING SPRING BSD-1609390370.A0 1609390370	-
11 - OSCILLATING ARMATURE BSD-1609390371.A4 1609390371	-
12 - RUBBER BUFFER BSD-1609390372.A0 1609390372	-
13 - ADJUSTING SCREW BSD-1609390373.A3 1609390373	-
14 - RUBBER BUFFER BSD-1609390044.A9 1609390044	-
15 - ON-OFF SWITCH BSD-1609390374.A0 1609390374	-
16 - CABLE BSD-1609390360.A12 1609390360	£3.80	£4.56
17 - CONNECTING TERMINAL BSD-1609390042.A24 1609390042	£3.34	£4.01
18 - GROMMET BSD-1609390048.A15 1609390048	£3.34	£4.01
19 - TAPPING SCREW DIN 7972-BZ3.9x16 BSD-2910601119.A0 2910601119	-
20 - POWER SUPPLY CORD BSD-1609390043.A1 1609390043	£14.75	£17.70
22 - REFERENCE PLATE BSD-1601110237.A1 1601110237	-
650 - PAINT CONTAINER BSD-1609390375.A1 1609390375	-
651 - STRAINER BSD-1609390376.A1 1609390376	-
652 - PAINT BEAKER BSD-1609390378.A1 1609390378	-
888 - NAMEPLATE BSD-160111A3H3.A2498 160111A3H3	£2.61	£3.13

Attribute Name	Value
Brand	Bosch
