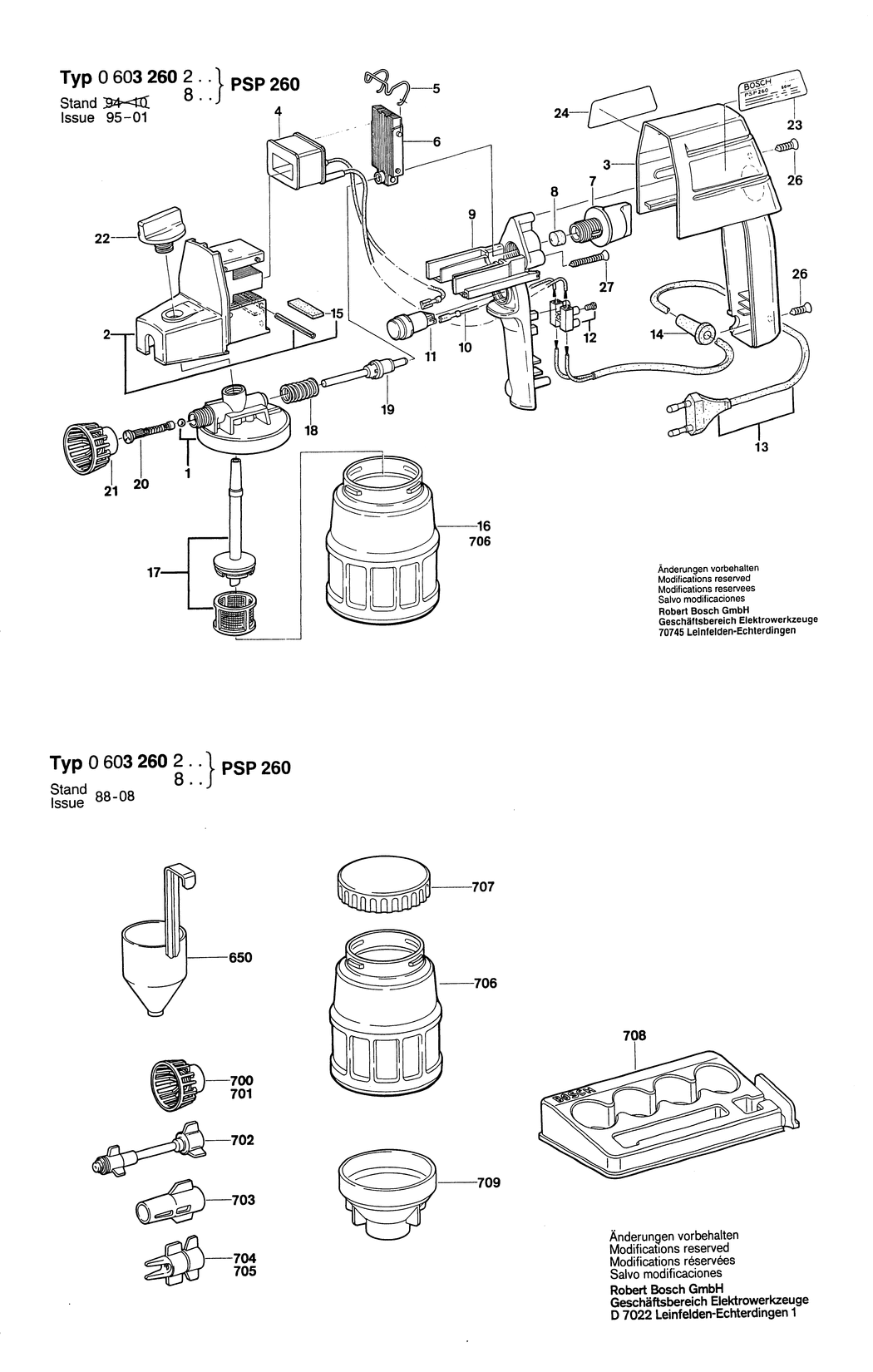

1 - PUMP HOUSING
BSD-1609390543.A0
1609390543
|
£70.24
|
£84.29
|
|
|
1 - COMPRESSION SPRING
BSD-1609390348.A5
1609390348
|
£8.17
|
£9.80
|
|
|
2 - MOTOR CRADLE
BSD-1609390462.A3
1609390462
|
£22.60
|
£27.12
|
|
|
3 - HOUSING COVER
BSD-1609390551.A3
1609390551
|
£22.76
|
£27.31
|
|
|
4 - CURRENT COIL 230V
BSD-1609390463.A1
1609390463
|
£31.64
|
£37.97
|
|
|
5 - HOLDING SPRING
BSD-1609390032.A9
1609390032
|
-
|
|
|
|
6 - OSCILLATING ARMATURE
BSD-1609390344.A3
1609390344
|
£28.68
|
£34.41
|
|
|
7 - ADJUSTING SCREW
BSD-1609390345.A3
1609390345
|
£9.97
|
£11.96
|
|
|
8 - RUBBER BUFFER
BSD-1609390346.A3
1609390346
|
£2.80
|
£3.36
|
|
|
9 - HANDLE
BSD-1609390347.A3
1609390347
|
£17.22
|
£20.67
|
|
|
10 - CABLE
BSD-1609390360.A3
1609390360
|
£3.80
|
£4.56
|
|
|
11 - ON-OFF SWITCH
BSD-1609390544.A6
1609390544
|
£19.45
|
£23.34
|
|
|
12 - CONNECTING TERMINAL
BSD-1609390042.A2
1609390042
|
£3.51
|
£4.21
|
|
|
13 - POWER SUPPLY CORD
BSD-1609390043.A9
1609390043
|
£14.75
|
£17.70
|
|
|
14 - GROMMET
BSD-1609390048.A11
1609390048
|
£3.34
|
£4.01
|
|
|
15 - RUBBER BUFFER
BSD-1609390353.A3
1609390353
|
-
|
|
|
|
16 - PAINT BEAKER
BSD-1609390460.A3
1609390460
|
£14.08
|
£16.89
|
|
|
16 - PAINT BEAKER
BSD-1609390040.A10
1609390040
|
-
|
|
|
|
17 - SUCTION PIPE
BSD-1609390209.A6
1609390209
|
£14.08
|
£16.89
|
|
|
18 - COMPRESSION SPRING
BSD-1609390348.A6
1609390348
|
£8.17
|
£9.80
|
|
|
19 - PUMP PISTON
BSD-1609390464.A3
1609390464
|
£14.72
|
£17.67
|
|
|
20 - VACUUM/PRESSURE VALVE
BSD-1609390465.A3
1609390465
|
-
|
|
|
|
20 - VACUUM/PRESSURE VALVE
BSD-1609390035.A4
1609390035
|
-
|
|
|
|
21 - CYLINDRICAL-SPRAY NOZZLE dia 0.6 MM
BSD-1609390541.A0
1609390541
|
-
|
|
|
|
22 - WING SCREW
BSD-1609390350.A5
1609390350
|
£11.30
|
£13.56
|
|
|
23 - STICKER
BSD-1601110233.A4
1601110233
|
£2.45
|
£2.94
|
|
|
24 - NAMEPLATE
BSD-1601110232.A1
1601110232
|
-
|
|
|
|
25 - COILED SPRING PIN 3x36 DIN 1481
BSD-2917760089.A6
2917760089
|
-
|
|
|
|
26 - TAPPING SCREW DIN 7972-BZ3.9x16
BSD-2910601119.A3
2910601119
|
-
|
|
|
|
27 - SOCKET HEAD CAP SCREW
BSD-1609390351.A1
1609390351
|
£1.38
|
£1.66
|
|
|
30 - PARTS SET
BSD-1609390468.A1
1609390468
|
-
|
|
|
|
650 - PAINT CONTAINER
BSD-1609200248.A10
1609200248
|
-
|
|
|
|
700 - CYLINDRICAL-SPRAY NOZZLE dia 0.4 MM
BSD-1609390540.A6
1609390540
|
-
|
|
|
|
701 - CYLINDRICAL-SPRAY NOZZLE dia 0.8 MM
BSD-1609390542.A11
1609390542
|
-
|
|
|
|
702 - NOZZLE EXTENSION
BSD-1609390021.A3
1609390021
|
-
|
|
|
|
703 - PENCIL-SPRAY NOZZLE
BSD-1609390357.A1
1609390357
|
-
|
|
|
|
704 - FLAT-SPRAY NOZZLE FD 5
BSD-1609390358.A5
1609390358
|
-
|
|
|
|
705 - FLAT-SPRAY NOZZLE FD 7
BSD-1609390359.A7
1609390359
|
-
|
|
|
|
706 - PAINT BEAKER
BSD-1609390458.A1
1609390458
|
-
|
|
|
|
707 - RESERVOIR CAP
BSD-1609390459.A5
1609390459
|
-
|
|
|
|
708 - MOUNTING PIECE
BSD-1607000167.A7
1607000167
|
-
|
|
|
|
709 - STRAINER
BSD-1609390045.A13
1609390045
|
-
|
|
|
|
888 - NAMEPLATE
BSD-160111A3H3.A1367
160111A3H3
|
£2.74
|
£3.29
|
|
