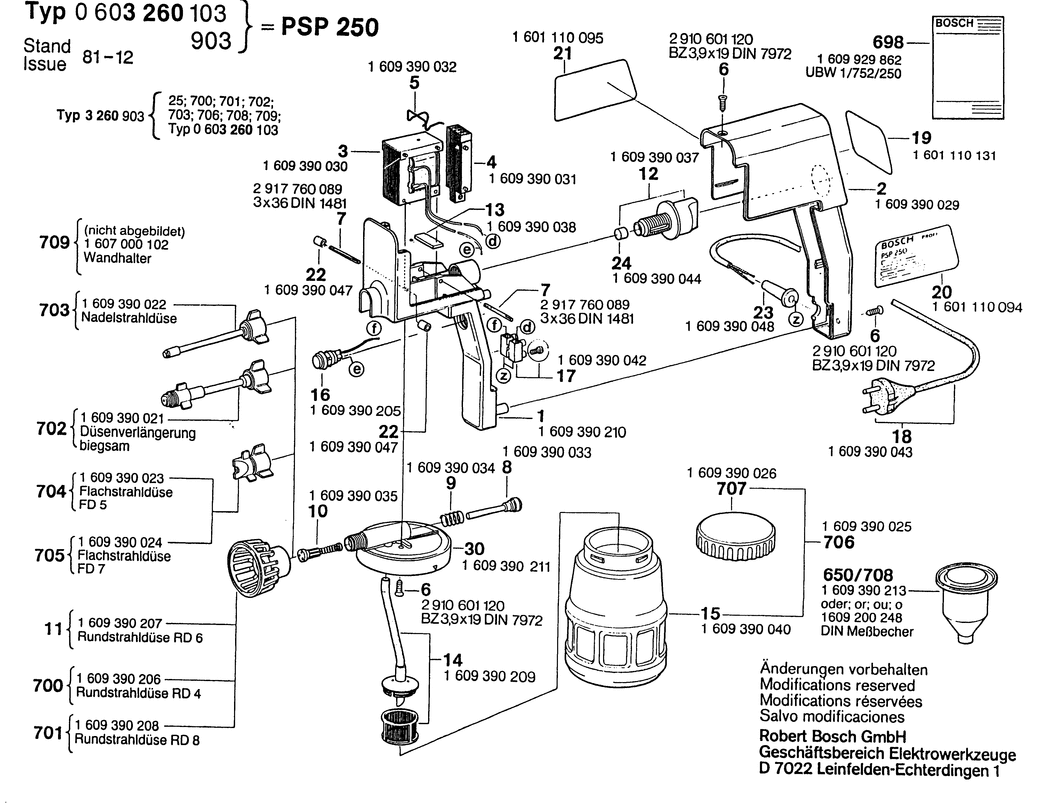

1 - HANDLE
BSD-1609390210.A0
1609390210
|
-
|
|
|
|
2 - HOUSING COVER
BSD-1609390029.A1
1609390029
|
-
|
|
|
|
2 - HOUSING COVER
BSD-1609390204.A1
1609390204
|
-
|
|
|
|
3 - OSCILL. ARMATURE MAGNET
BSD-1609390030.A1
1609390030
|
-
|
|
|
|
4 - OSCILLATING ARMATURE
BSD-1609390031.A1
1609390031
|
-
|
|
|
|
5 - HOLDING SPRING
BSD-1609390032.A4
1609390032
|
-
|
|
|
|
6 - TAPPING SCREW BZ 3.9x19 DIN 7972
BSD-2910601120.A42
2910601120
|
-
|
|
|
|
7 - COILED SPRING PIN 3x36 DIN 1481
BSD-2917760089.A2
2917760089
|
-
|
|
|
|
8 - PUMP PISTON
BSD-1609390033.A1
1609390033
|
-
|
|
|
|
9 - COMPRESSION SPRING
BSD-1609390034.A4
1609390034
|
-
|
|
|
|
10 - VACUUM/PRESSURE VALVE
BSD-1609390035.A1
1609390035
|
-
|
|
|
|
11 - CYLINDRICAL-SPRAY NOZZLE dia 0.6 MM
BSD-1609390541.A7
1609390541
|
-
|
|
|
|
12 - ADJUSTING SCREW
BSD-1609390037.A4
1609390037
|
-
|
|
|
|
13 - RUBBER BUFFER
BSD-1609390038.A1
1609390038
|
-
|
|
|
|
14 - SUCTION PIPE
BSD-1609390209.A8
1609390209
|
£14.08
|
£16.89
|
|
|
15 - PAINT BEAKER
BSD-1609390040.A5
1609390040
|
-
|
|
|
|
16 - ON-OFF SWITCH
BSD-1609390205.A4
1609390205
|
-
|
|
|
|
17 - CONNECTING TERMINAL
BSD-1609390042.A9
1609390042
|
£3.51
|
£4.21
|
|
|
18 - POWER SUPPLY CORD
BSD-1609390043.A4
1609390043
|
£14.75
|
£17.70
|
|
|
18 - POWER SUPPLY CORD
BSD-1609390562.A2
1609390562
|
£24.45
|
£29.34
|
|
|
19 - NAMEPLATE
BSD-1601110131.A0
1601110131
|
-
|
|
|
|
19 - NAMEPLATE
BSD-1601110132.A3
1601110132
|
-
|
|
|
|
20 - REFERENCE PLATE
BSD-1601110094.A1
1601110094
|
-
|
|
|
|
21 - REFERENCE PLATE
BSD-1601110095.A4
1601110095
|
-
|
|
|
|
22 - PROTECTIVE CAP
BSD-1609390047.A1
1609390047
|
-
|
|
|
|
23 - GROMMET
BSD-1609390048.A5
1609390048
|
£3.34
|
£4.01
|
|
|
24 - RUBBER BUFFER
BSD-1609390044.A4
1609390044
|
-
|
|
|
|
30 - PUMP HOUSING
BSD-1609390211.A2
1609390211
|
-
|
|
|
|
650 - PAINT CONTAINER
BSD-1609200248.A4
1609200248
|
-
|
|
|
|
700 - CYLINDRICAL-SPRAY NOZZLE dia 0.4 MM
BSD-1609390206.A1
1609390206
|
-
|
|
|
|
701 - CYLINDRICAL-SPRAY NOZZLE dia 0.8 MM
BSD-1609390542.A3
1609390542
|
-
|
|
|
|
702 - NOZZLE EXTENSION
BSD-1609390021.A9
1609390021
|
-
|
|
|
|
703 - PENCIL-SPRAY NOZZLE
BSD-1609390022.A3
1609390022
|
-
|
|
|
|
704 - FLAT-SPRAY NOZZLE FD 5
BSD-1609390358.A8
1609390358
|
-
|
|
|
|
705 - FLAT-SPRAY NOZZLE FD 7
BSD-1609390359.A4
1609390359
|
-
|
|
|
|
706 - PAINT BEAKER
BSD-1609390025.A1
1609390025
|
-
|
|
|
|
707 - RESERVOIR CAP
BSD-1609390026.A4
1609390026
|
-
|
|
|
|
708 - STRAINER
BSD-1609390045.A8
1609390045
|
-
|
|
|
|
709 - MOUNTING PIECE
BSD-1607000167.A3
1607000167
|
-
|
|
|
