Bosch PSP 250 / 0603260103 / EU 220 Volt Spare Parts

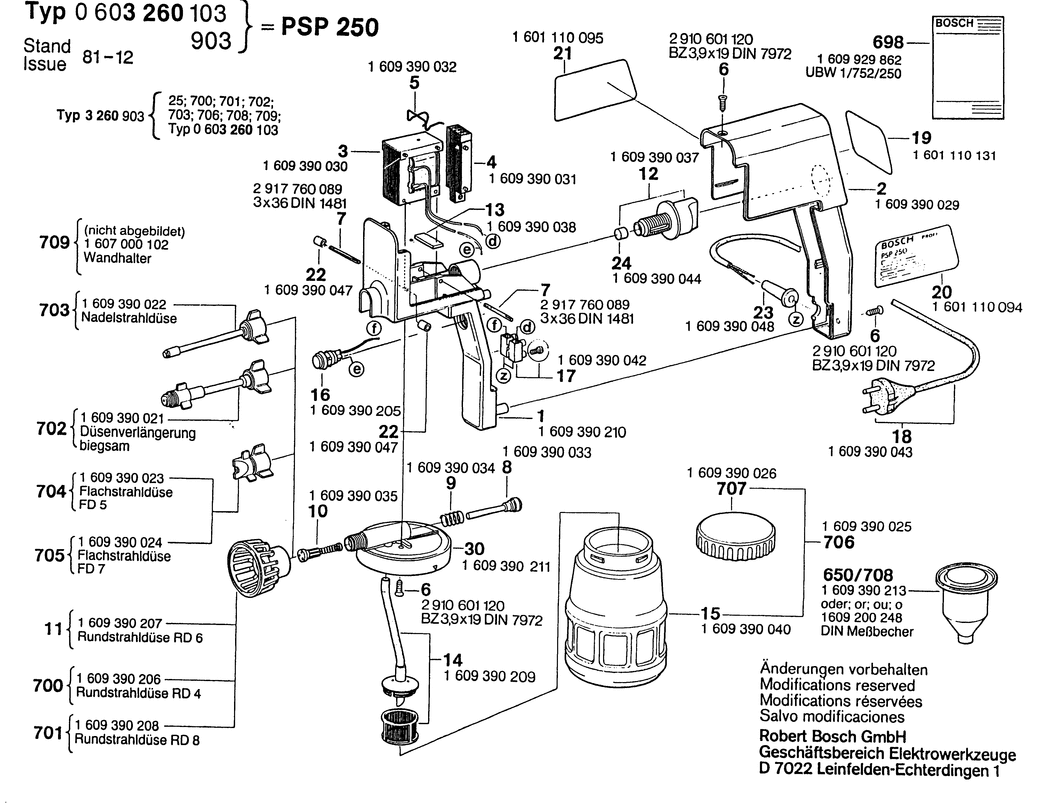

An exploded drawing and listing for the Bosch PSP 250 / 0603260103 / EU 220 Volt

	Ex VAT	Inc VAT
1 - HANDLE BSD-1609390210.A2 1609390210	-
2 - HOUSING COVER BSD-1609390029.A4 1609390029	-
2 - HOUSING COVER BSD-1609390204.A3 1609390204	-
3 - OSCILL. ARMATURE MAGNET BSD-1609390030.A0 1609390030	-
4 - OSCILLATING ARMATURE BSD-1609390031.A3 1609390031	-
5 - HOLDING SPRING BSD-1609390032.A2 1609390032	-
6 - TAPPING SCREW BZ 3.9x19 DIN 7972 BSD-2910601120.A46 2910601120	-
7 - COILED SPRING PIN 3x36 DIN 1481 BSD-2917760089.A9 2917760089	-
8 - PUMP PISTON BSD-1609390033.A3 1609390033	-
9 - COMPRESSION SPRING BSD-1609390034.A2 1609390034	-
10 - VACUUM/PRESSURE VALVE BSD-1609390035.A8 1609390035	-
11 - CYLINDRICAL-SPRAY NOZZLE dia 0.6 MM BSD-1609390541.A11 1609390541	-
12 - ADJUSTING SCREW BSD-1609390037.A2 1609390037	-
13 - RUBBER BUFFER BSD-1609390038.A3 1609390038	-
14 - SUCTION PIPE BSD-1609390209.A2 1609390209	£14.08	£16.89
15 - PAINT BEAKER BSD-1609390040.A3 1609390040	-
16 - ON-OFF SWITCH BSD-1609390205.A2 1609390205	-
17 - CONNECTING TERMINAL BSD-1609390042.A11 1609390042	£3.51	£4.21
18 - POWER SUPPLY CORD BSD-1609390043.A2 1609390043	£14.75	£17.70
19 - NAMEPLATE BSD-1601110131.A3 1601110131	-
19 - NAMEPLATE BSD-1601110132.A0 1601110132	-
20 - REFERENCE PLATE BSD-1601110094.A4 1601110094	-
21 - REFERENCE PLATE BSD-1601110095.A1 1601110095	-
22 - PROTECTIVE CAP BSD-1609390047.A2 1609390047	-
23 - GROMMET BSD-1609390048.A4 1609390048	£3.34	£4.01
24 - RUBBER BUFFER BSD-1609390044.A5 1609390044	-
30 - PUMP HOUSING BSD-1609390211.A1 1609390211	-
650 - PAINT CONTAINER BSD-1609200248.A1 1609200248	-
700 - CYLINDRICAL-SPRAY NOZZLE dia 0.4 MM BSD-1609390206.A3 1609390206	-
701 - CYLINDRICAL-SPRAY NOZZLE dia 0.8 MM BSD-1609390542.A1 1609390542	-
702 - NOZZLE EXTENSION BSD-1609390021.A11 1609390021	-
703 - PENCIL-SPRAY NOZZLE BSD-1609390022.A1 1609390022	-
704 - FLAT-SPRAY NOZZLE FD 5 BSD-1609390358.A10 1609390358	-
705 - FLAT-SPRAY NOZZLE FD 7 BSD-1609390359.A1 1609390359	-
706 - PAINT BEAKER BSD-1609390025.A3 1609390025	-
707 - RESERVOIR CAP BSD-1609390026.A2 1609390026	-
708 - STRAINER BSD-1609390045.A6 1609390045	-
709 - MOUNTING PIECE BSD-1607000167.A2 1607000167	-

Attribute Name	Value
Brand	Bosch
