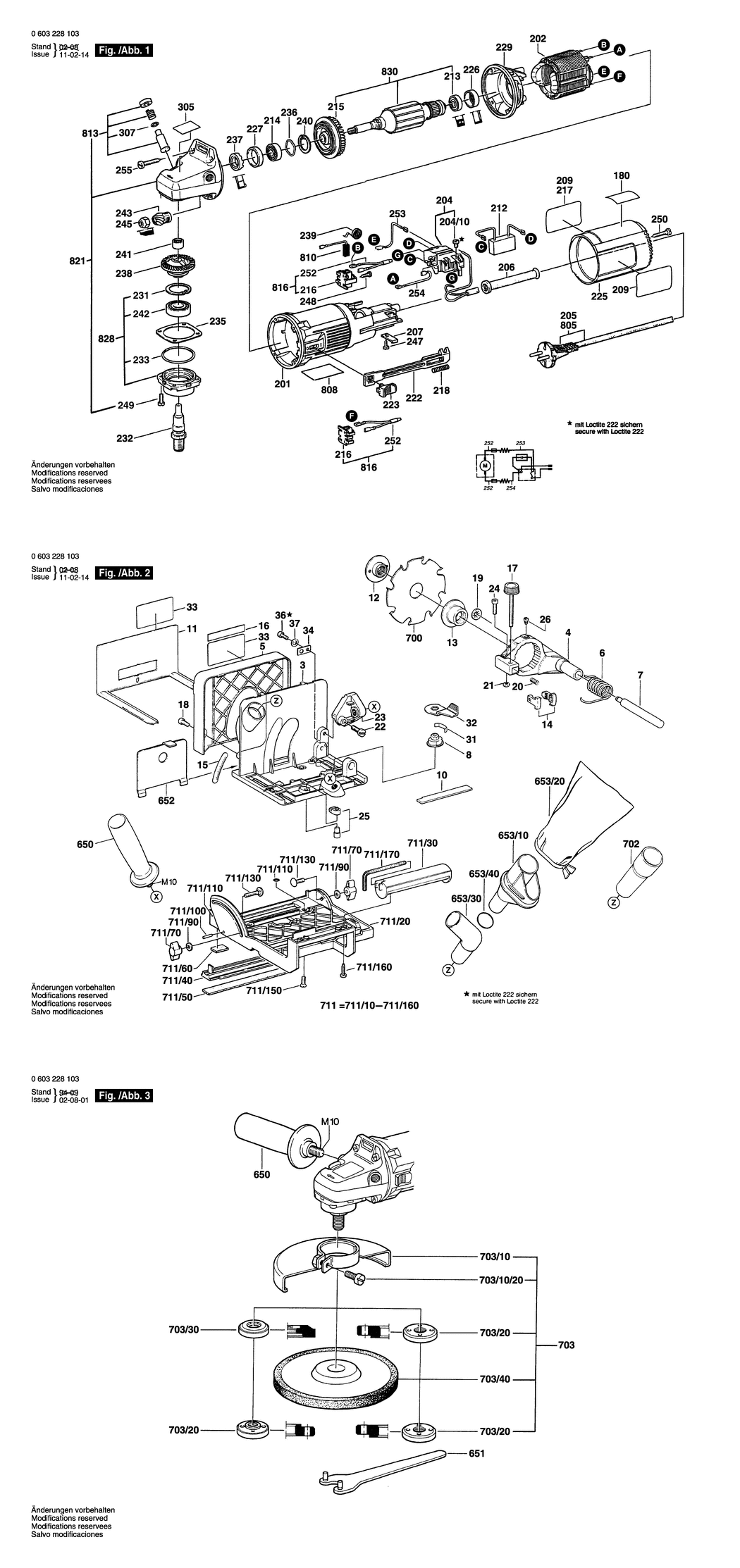

An exploded drawing and listing for the Bosch PSF 22 A / 0603228103 / EU 230 Volt
Ex VAT Inc VAT
3 - BASE PLATE BSD-3601329011.A0 3601329011 £61.98 £74.38
4 - SWIVELLING LEVER BSD-3602013000.A11 3602013000 -
5 - COVERING HOOD BSD-3605500101.A4 3605500101 -
6 - TORSION SPRING BSD-3604651003.A13 3604651003 £4.75 £5.70
7 - SWIVELLING AXIS BSD-3603120010.A0 3603120010 £12.04 £14.45
8 - ECCENTRIC DISC BSD-3602200001.A5 3602200001 £5.30 £6.36
10 - THRUST MEMBER BSD-3601000002.A18 3601000002 £2.33 £2.80
11 - PARALLEL-GUIDE BSD-3601329004.A5 3601329004 -
12 - ROUND NUT M14 BSD-3603340009.A11 3603340009 -
13 - CLAMPING-FLANGE BSD-3600328032.A5 3600328032 £8.49 £10.19
14 - DETENT PIN BSD-2602305045.A10 2602305045 -
15 - STICKER BSD-3601119024.A6 3601119024 £1.95 £2.34
16 - MANUFACTURER'S NAMEPLATE BSD-1601110481.A5 1601110481 £2.16 £2.59
17 - KNURLED THUMBSCREW BSD-3603490008.A11 3603490008 -
18 - HEX SOCKET HEAD CAP SCREW DIN 912-M5x10-8.8 BSD-2910141152.A33 2910141152 £1.75 £2.10
19 - LOCKING WASHER DIN 6799-4-FSt BSD-2916080007.A156 2916080007 £2.61 £3.13
20 - COMPRESSION SPRING BSD-3604611018.A8 3604611018 -
21 - HEX NUT DIN 934-M 5-m-8 BSD-2915011006.A81 2915011006 -
22 - PAN HEAD SCREW DIN 85-M6x20-4.8 BSD-2910095201.A23 2910095201 -
23 - CARRIER BRACKET BSD-3602380000.A5 3602380000 £7.78 £9.33
24 - HEX SOCKET HEAD CAP SCREW DIN 912-M5x12-8.8 BSD-2910141154.A36 2910141154 £1.75 £2.10
25 - SUPPORT CLAMP BSD-3602012000.A6 3602012000 £1.75 £2.10
26 - PAN HEAD SCREW DIN 922-M4x3x3-5.8 BSD-2910271900.A5 2910271900 £1.32 £1.58
31 - VERTEBRAS BSD-3601251001.A11 3601251001 £3.34 £4.01
32 - TENSIONING LEVER BSD-3601923000.A0 3601923000 £3.34 £4.01
33 - REFERENCE PLATE BSD-3601119063.A12 3601119063 £1.95 £2.34
34 - ADJUSTING PLATE BSD-3601032001.A7 3601032001 £1.75 £2.10
36 - THREAD-FORMING TAP. SCREW DIN 7500-TM4x12 BSD-2914471401.A64 2914471401 £1.75 £2.10
37 - LOCKING WASHER BSD-3600190018.A0 3600190018 £1.32 £1.58
201 - MOTOR HOUSING BSD-1605108127.A57 1605108127 -
202 - FIELD 230-240V BSD-1604220224.A21 1604220224 -
204 - ON-OFF SWITCH BSD-1607200086.A223 1607200086 £11.30 £13.56
204/10 - PAN HEAD SCREW DIN 85-AM3x6-CUZN BSD-2910110048.A452 2910110048 £1.75 £2.10
206 - GROMMET dia6.5-dia6.9x95 MM BSD-2600703012.A1483 2600703012 £2.80 £3.36
207 - FASTENING CLAMP BSD-1601302017.A1073 1601302017 £1.75 £2.10
209 - MANUFACTURER'S NAMEPLATE BSD-1601110736.A6 1601110736 -
212 - SUPPRESSION FILTER BSD-2607329124.A34 2607329124 £10.10 £12.12
213 - BALL BEARING 7x19x6 BSD-2600905032.A1235 2600905032 £5.30 £6.36
214 - GROOVE BALL BEARING 8x22x7 BSD-1600905011.A121 1600905011 £5.58 £6.70
215 - FAN BSD-1606610121.A153 1606610121 £1.75 £2.10
216 - BRUSH HOLDER BSD-1600A003G4.A374 1600A003G4 £3.72 £4.47
217 - MANUFACTURER'S NAMEPLATE BSD-1601110737.A0 1601110737 -
218 - COMPRESSION SPRING BSD-1604611026.A637 1604611026 £1.75 £2.10
222 - ADJUSTING SLIDE BSD-1602319002.A88 1602319002 £2.61 £3.13
223 - SWITCH HANDLE BSD-1602026057.A364 1602026057 £1.97 £2.36
225 - HOUSING COVER BSD-1600508005.A30 1600508005 £3.80 £4.56
226 - RUBBER BUSHING BSD-1600502020.A18 1600502020 £2.61 £3.13
227 - RUBBER RING BSD-1600206025.A919 1600206025 £2.16 £2.59
229 - AIR-DEFLECTOR RING BSD-1601328005.A148 1601328005 £2.61 £3.13
231 - RETAINING CLIP DIN 472-32x1.2 MM BSD-2916660013.A38 2916660013 £2.16 £2.59
232 - GRINDING SPINDLE M14. SW17 BSD-1603523101.A5 1603523101 £18.96 £22.75
233 - O-RING 46.0x1.1 MM BSD-3600210124.A280 3600210124 £2.80 £3.36
235 - SHIM 0.2 MM BSD-1600136010.A175 1600136010 £2.61 £3.13
235 - SHIM 0.3 MM BSD-1600136011.A154 1600136011 £2.16 £2.59
235 - SHIM 0.1 MM BSD-1600136012.A169 1600136012 £1.75 £2.10
236 - SPRING WASHER BSD-1600150011.A247 1600150011 £1.75 £2.10
237 - ROTARY SHAFT LIP SEAL BSD-1600290016.A77 1600290016 £2.61 £3.13
238 - CROWN GEAR Z=36 BSD-1606333601.A109 1606333601 £8.49 £10.19
239 - SPIRAL SPRING BSD-1604652013.A1072 1604652013 £1.75 £2.10
240 - SPRING RETAINING RING DIN 472-25x1.2MM BSD-2916660009.A0 2916660009 £2.16 £2.59
241 - NEEDLE BEARING dia8xdia12x8 MM BSD-1600910018.A558 1600910018 £5.30 £6.36
242 - GROOVE BALL BEARING 12x32x10 BSD-1600905006.A80 1600905006 £12.04 £14.45
243 - BEVEL GEAR Z=11 BSD-1606333242.A148 1606333242 £48.38 £58.06
245 - HEX NUT M7. SW10 BSD-1603300016.A387 1603300016 £1.75 £2.10
247 - TAPPING SCREW DIN 7971-ST3.9x13-F BSD-2910211018.A185 2910211018 £1.75 £2.10
248 - LENS HEAD SCREW 3x10 ST BSD-1613435034.A400 1613435034 £1.75 £2.10
249 - THREAD-FORMING TAP. SCREW BSD-1603435026.A58 1603435026 £2.16 £2.59
250 - TAPPING SCREW DIN 7971-ST3.9x22-F BSD-2910211021.A901 2910211021 £1.75 £2.10
252 - SUPPRESSOR BOX BSD-1604465104.A0 1604465104 -
253 - CONNECTING CABLE L=95 MM BSD-1604448005.A112 1604448005 £2.80 £3.36
254 - CONNECTING CABLE L=40 MM BSD-1604448006.A10 1604448006 £2.61 £3.13
255 - TORX OVAL-HEAD SCREW BSD-2914201508.A141 2914201508 £1.75 £2.10
305 - REFERENCE PLATE BSD-1601110470.A52 1601110470 £1.75 £2.10
307 - O-RING 4.5x1.0 MM BSD-1600210044.A363 1600210044 £1.75 £2.10
650 - AUXILIARY HANDLE M10. dia32.5x105 MM BSD-160202509T.A451 160202509T £3.72 £4.47
651 - PIN-TYPE FACE-WRENCH BSD-1607950052.A431 1607950052 £3.72 £4.47
652 - MOUNTING PLATE BSD-3601012001.A0 3601012001 £4.26 £5.11
653/10 - FITTING BSD-2605702009.A6 2605702009 £2.80 £3.36
653/20 - DUST BAG BSD-2605411017.A0 2605411017 £6.61 £7.93
653/30 - ELBOW BSD-2605702019.A9 2605702019 -
653/40 - O-RING 20.0x1.5 MM BSD-1610210075.A26 1610210075 £2.61 £3.13
700 - SIDE-MILLING CUTTER Z=8 BSD-3608641008.A3 3608641008 £44.69 £53.63
700 - SIDE-MILLING CUTTER dia 105x20x2.2 MM. Z=12 BSD-3608641001.A3 3608641001 £26.66 £31.99
700 - SIDE-MILLING CUTTER dia 105x20x2.8 MM. Z=22 BSD-3608641002.A12 3608641002 £39.16 £46.99
702 - FITTING dia 25x35 MM BSD-1600499005.A122 1600499005 £3.49 £4.19
703 - PARTS SET BSD-3607030020.A2 3607030020 -
703/10 - PROTECTIVE COVER dia 115 MM(4 1/2) BSD-2605510125.A103 2605510125 £27.23 £32.68
703/10/20 - SOCKET HEAD CAP SCREW DIN 84-M 6x16-8.8 BSD-2910022197.A223 2910022197 -
703/20 - ROUND NUT M14 BSD-1603340015.A29 1603340015 £3.87 £4.64
703/30 - FASTENING FLANGE BSD-2605703023.A11 2605703023 -
703/40 - GRINDING WHEEL dia 115xdia 22.2x6 MM BSD-2608600003.A5 2608600003 -
711 - PARALLEL-GUIDE BSD-3601329013.A17 3601329013 £93.88 £112.65
711/10 - CARRIER BSD-3601328004.A6 3601328004 £19.45 £23.34
711/20 - STOP PLATE BSD-3601328005.A6 3601328005 £33.45 £40.14
711/30 - HANDLE BSD-3601328006.A6 3601328006 £3.34 £4.01
711/40 - PLASTIC BAR BSD-3601328007.A6 3601328007 £2.52 £3.02
711/50 - RUBBER BAR BSD-3601006001.A1 3601006001 £2.52 £3.02
711/60 - RUBBER PLATE BSD-3601006002.A11 3601006002 £3.80 £4.56
711/70 - WING NUT M6 BSD-1603339006.A155 1603339006 £2.52 £3.02
711/90 - PLAIN WASHER DIN 125-A 6.4-ST BSD-2916011014.A26 2916011014 £1.75 £2.10
711/100 - STRAIGHT PIN DIN 7-2m6x10-ST BSD-2917510036.A0 2917510036 £1.75 £2.10
711/110 - O-RING 5x2 MM BSD-1900210301.A0 1900210301 £1.32 £1.58
711/130 - ROUND-HEAD BOLT DIN 603-M6x20 BSD-2910281201.A192 2910281201 £1.75 £2.10
711/150 - COUNTERSUNK-HEAD SCREW DIN 7991-M6x12-8.8 BSD-2910545193.A5 2910545193 £1.75 £2.10
711/160 - TAPPING SCREW DIN 7971-BZ3.9x19 BSD-2910211020.A43 2910211020 £2.16 £2.59
711/170 - OFFSET SCREWDRIVER DIN 911-4 BSD-2607950004.A134 2607950004 £1.75 £2.10
805 - POWER SUPPLY CORD EU 230V 4.15m 2 x 1.0mm H05 RN-F BSD-1607000386.A53 1607000386 £21.52 £25.83
808 - NAMEPLATE BSD-160111A3H3.A2619 160111A3H3 £2.61 £3.13
810 - CARBON-BRUSH SET BSD-1607014116.A248 1607014116 £11.30 £13.56
813 - PUSH-BUTTON BSD-1607000253.A265 1607000253 £2.49 £2.99
816 - PARTS SET BSD-1607000244.A7 1607000244 £9.49 £11.39
821 - GEAR HOUSING BSD-1605806480.A78 1605806480 £48.38 £58.06
828 - ASSEMBLY OF SERVICE PARTS BSD-1607000937.A18 1607000937 -
830 - ARMATURE WITH FAN 230-240V BSD-1604010259.A42 1604010259 -
