Bosch PSF 22 / 0603228048 / F 220 Volt Spare Parts

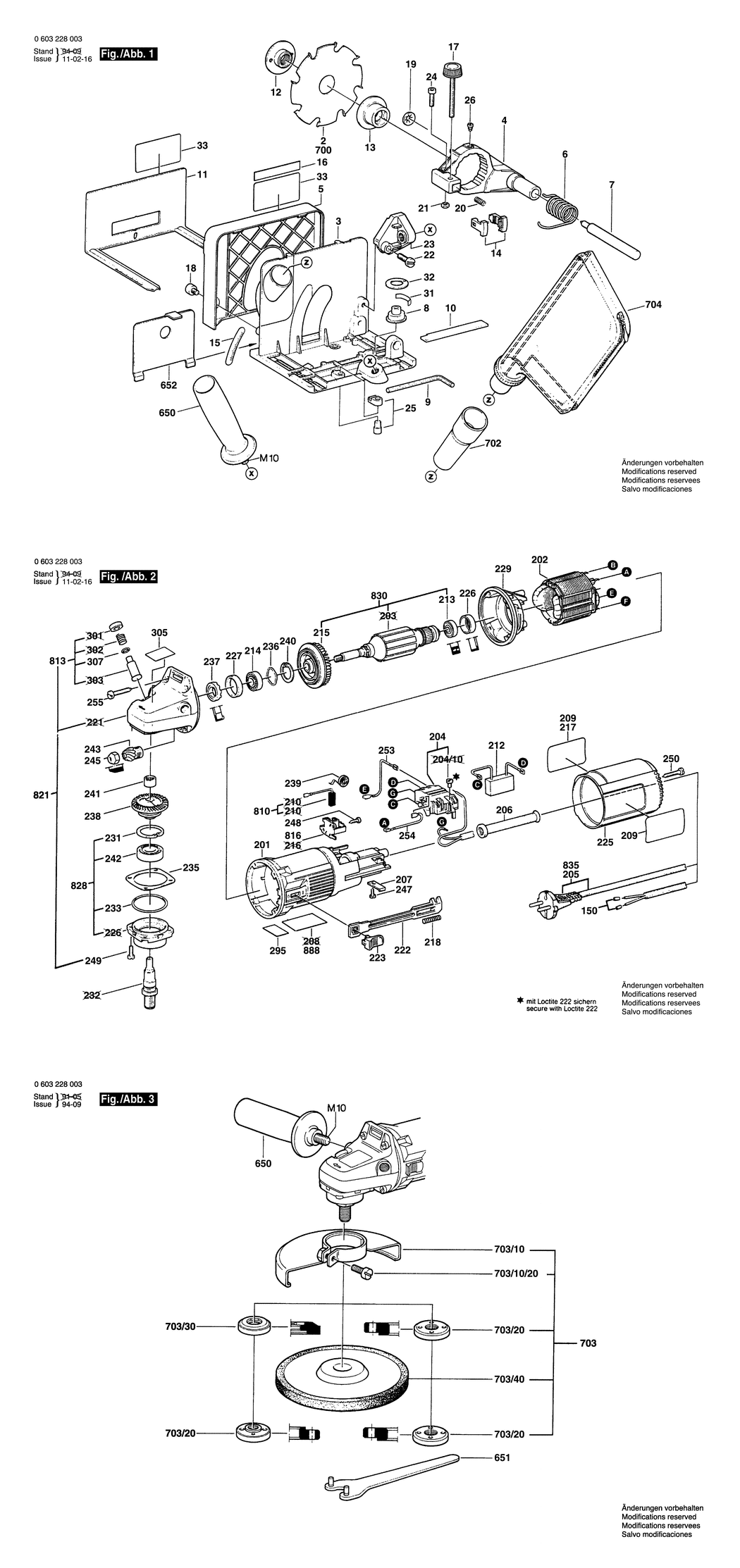

An exploded drawing and listing for the Bosch PSF 22 / 0603228048 / F 220 Volt

	Ex VAT	Inc VAT
3 - BASE PLATE BSD-3601329005.A7 3601329005	-
4 - SWIVELLING LEVER BSD-3602013000.A9 3602013000	-
5 - COVERING HOOD BSD-3605500101.A1 3605500101	-
6 - TORSION SPRING BSD-3604651003.A16 3604651003	£4.75	£5.70
7 - SWIVELLING AXIS BSD-3603120004.A1 3603120004	-
8 - ECCENTRIC DISC BSD-3602200000.A2 3602200000	-
9 - OFFSET SCREWDRIVER DIN 911-4 BSD-2607950004.A136 2607950004	£1.75	£2.10
10 - THRUST MEMBER BSD-3601000002.A23 3601000002	£2.33	£2.80
11 - PARALLEL-GUIDE BSD-3601329004.A8 3601329004	-
12 - ROUND NUT M14 BSD-3603340009.A15 3603340009	-
13 - CLAMPING-FLANGE BSD-3600328032.A0 3600328032	£8.49	£10.19
14 - DETENT PIN BSD-2602305045.A8 2602305045	-
15 - STICKER BSD-3601119024.A7 3601119024	£1.95	£2.34
16 - MANUFACTURER'S NAMEPLATE BSD-1601110481.A3 1601110481	£2.16	£2.59
17 - KNURLED THUMBSCREW BSD-3603490008.A10 3603490008	-
18 - THREAD-FORMING TAP. SCREW DIN 7500-M5x14MM BSD-2914455059.A0 2914455059	-
19 - LOCKING WASHER DIN 6799-4-FSt BSD-2916080007.A155 2916080007	£2.61	£3.13
20 - COMPRESSION SPRING BSD-3604611018.A9 3604611018	-
21 - HEX NUT DIN 934-M 5-m-8 BSD-2915011006.A83 2915011006	-
22 - PAN HEAD SCREW DIN 85-M6x20-4.8 BSD-2910095201.A21 2910095201	-
23 - CARRIER BRACKET BSD-3602380000.A7 3602380000	£7.78	£9.33
24 - HEX SOCKET HEAD CAP SCREW DIN 912-M5x12-8.8 BSD-2910141154.A38 2910141154	£1.75	£2.10
25 - SUPPORT CLAMP BSD-3602012000.A8 3602012000	£1.75	£2.10
26 - PAN HEAD SCREW DIN 922-M4x3x3-5.8 BSD-2910271900.A3 2910271900	£1.32	£1.58
31 - VERTEBRAS BSD-3601251001.A12 3601251001	£3.34	£4.01
32 - PLAIN WASHER DIN 9021-A10.5-ST BSD-2916015886.A6 2916015886	-
33 - REFERENCE PLATE BSD-3601119063.A11 3601119063	£1.95	£2.34
201 - MOTOR HOUSING BSD-1605108127.A59 1605108127	-
202 - FIELD 230-240V BSD-1604220224.A20 1604220224	-
204 - ON-OFF SWITCH BSD-1607200086.A225 1607200086	£11.30	£13.56
206 - GROMMET dia6.5-dia6.9x95 MM BSD-2600703012.A1484 2600703012	£2.80	£3.36
207 - FASTENING CLAMP BSD-1601302017.A1072 1601302017	£1.75	£2.10
209 - MANUFACTURER'S NAMEPLATE BSD-1601110480.A1 1601110480	-
212 - SUPPRESSION FILTER BSD-2607329124.A32 2607329124	£10.10	£12.12
213 - BALL BEARING 7x19x6 BSD-2600905032.A1234 2600905032	£5.30	£6.36
214 - GROOVE BALL BEARING 8x22x7 BSD-1600905011.A123 1600905011	£5.58	£6.70
215 - FAN BSD-1606610121.A152 1606610121	£1.75	£2.10
217 - MANUFACTURER'S NAMEPLATE BSD-1601110479.A3 1601110479	-
218 - COMPRESSION SPRING BSD-1604611026.A639 1604611026	£1.75	£2.10
222 - ADJUSTING SLIDE BSD-1602319002.A89 1602319002	£2.61	£3.13
223 - SWITCH HANDLE BSD-1602026057.A363 1602026057	£1.97	£2.36
225 - HOUSING COVER BSD-1600508005.A32 1600508005	£3.80	£4.56
226 - RUBBER BUSHING BSD-1600502020.A16 1600502020	£2.61	£3.13
227 - RUBBER RING BSD-1600206025.A917 1600206025	£2.16	£2.59
229 - AIR-DEFLECTOR RING BSD-1601328005.A149 1601328005	£2.61	£3.13
231 - RETAINING CLIP DIN 472-32x1.2 MM BSD-2916660013.A37 2916660013	£2.16	£2.59
233 - O-RING 46.0x1.1 MM BSD-3600210124.A281 3600210124	£2.80	£3.36
235 - SHIM 0.2 MM BSD-1600136010.A173 1600136010	£2.61	£3.13
235 - SHIM 0.3 MM BSD-1600136011.A156 1600136011	£2.16	£2.59
235 - SHIM 0.1 MM BSD-1600136012.A167 1600136012	£1.75	£2.10
236 - SPRING WASHER BSD-1600150011.A249 1600150011	£1.75	£2.10
237 - ROTARY SHAFT LIP SEAL BSD-1600290016.A75 1600290016	£2.61	£3.13
238 - CROWN GEAR Z=36 BSD-1606333601.A110 1606333601	£8.49	£10.19
239 - SPIRAL SPRING BSD-1604652013.A1070 1604652013	£1.75	£2.10
240 - SPRING RETAINING RING DIN 472-25x1.2MM BSD-2916660009.A1 2916660009	£2.16	£2.59
241 - NEEDLE BEARING dia8xdia12x8 MM BSD-1600910018.A556 1600910018	£5.30	£6.36
242 - GROOVE BALL BEARING 12x32x10 BSD-1600905006.A78 1600905006	£12.04	£14.45
243 - BEVEL GEAR Z=11 BSD-1606333242.A147 1606333242	£48.38	£58.06
245 - HEX NUT M7. SW10 BSD-1603300016.A386 1603300016	£1.75	£2.10
247 - TAPPING SCREW DIN 7971-ST3.9x13-F BSD-2910211018.A183 2910211018	£1.75	£2.10
248 - LENS HEAD SCREW 3x10 ST BSD-1613435034.A402 1613435034	£1.75	£2.10
249 - THREAD-FORMING TAP. SCREW BSD-1603435026.A56 1603435026	£2.16	£2.59
250 - TAPPING SCREW DIN 7971-ST3.9x22-F BSD-2910211021.A903 2910211021	£1.75	£2.10
253 - CONNECTING CABLE L=95 MM BSD-1604448005.A113 1604448005	£2.80	£3.36
254 - CONNECTING CABLE L=40 MM BSD-1604448006.A9 1604448006	£2.61	£3.13
255 - TAPPING SCREW DIN7981-ST3.9x22-C-Z BSD-2912401021.A80 2912401021	£1.75	£2.10
295 - STICKER BSD-1601110265.A6 1601110265	-
305 - REFERENCE PLATE BSD-1601110470.A50 1601110470	£1.75	£2.10
307 - O-RING 4.5x1.0 MM BSD-1600210044.A365 1600210044	£1.75	£2.10
650 - AUXILIARY HANDLE M10. dia32.5x105 MM BSD-160202509T.A453 160202509T	£3.72	£4.47
651 - PIN-TYPE FACE-WRENCH BSD-1607950052.A429 1607950052	£3.72	£4.47
652 - MOUNTING PLATE BSD-3601012001.A2 3601012001	£4.26	£5.11
700 - SIDE-MILLING CUTTER Z=8 BSD-3608641008.A5 3608641008	£44.69	£53.63
700 - SIDE-MILLING CUTTER dia 105x20x2.2 MM. Z=12 BSD-3608641001.A5 3608641001	£24.66	£29.59
700 - SIDE-MILLING CUTTER dia 105x20x2.8 MM. Z=22 BSD-3608641002.A10 3608641002	£39.16	£46.99
702 - FITTING dia 25x35 MM BSD-1600499005.A124 1600499005	£3.49	£4.19
703 - PARTS SET BSD-3607030020.A0 3607030020	-
703/10 - PROTECTIVE COVER dia 115 MM(4 1/2) BSD-2605510125.A105 2605510125	£27.23	£32.68
703/10/20 - SOCKET HEAD CAP SCREW DIN 84-M 6x16-8.8 BSD-2910022197.A224 2910022197	-
703/20 - ROUND NUT M14 BSD-1603340015.A31 1603340015	£3.87	£4.64
703/30 - FASTENING FLANGE BSD-2605703023.A13 2605703023	-
703/40 - GRINDING WHEEL dia 115xdia 22.2x6 MM BSD-2608600003.A4 2608600003	-
704 - DUST BAG BSD-2605411011.A1 2605411011	-
704 - DUST BAG BSD-1605411028.A3 1605411028	£15.74	£18.89
810 - CARBON-BRUSH SET BSD-1607014116.A246 1607014116	£11.30	£13.56
813 - PUSH-BUTTON BSD-1607000253.A266 1607000253	£2.49	£2.99
816 - BRUSH HOLDER BSD-1600A003G4.A376 1600A003G4	£3.72	£4.47
821 - GEAR HOUSING BSD-1605806480.A83 1605806480	£48.38	£58.06
828 - ASSEMBLY OF SERVICE PARTS BSD-1607000937.A8 1607000937	-
830 - ARMATURE WITH FAN 230-240V BSD-1604010259.A39 1604010259	-
835 - POWER SUPPLY CORD EU 230V 4.15m 2 x 1.0mm H05 RN-F BSD-1607000386.A52 1607000386	£21.52	£25.83
888 - NAMEPLATE BSD-160111A3H3.A2621 160111A3H3	£2.61	£3.13
