Bosch PMF 250 CES / 3603A02140 / --- 240 Volt Spare Parts

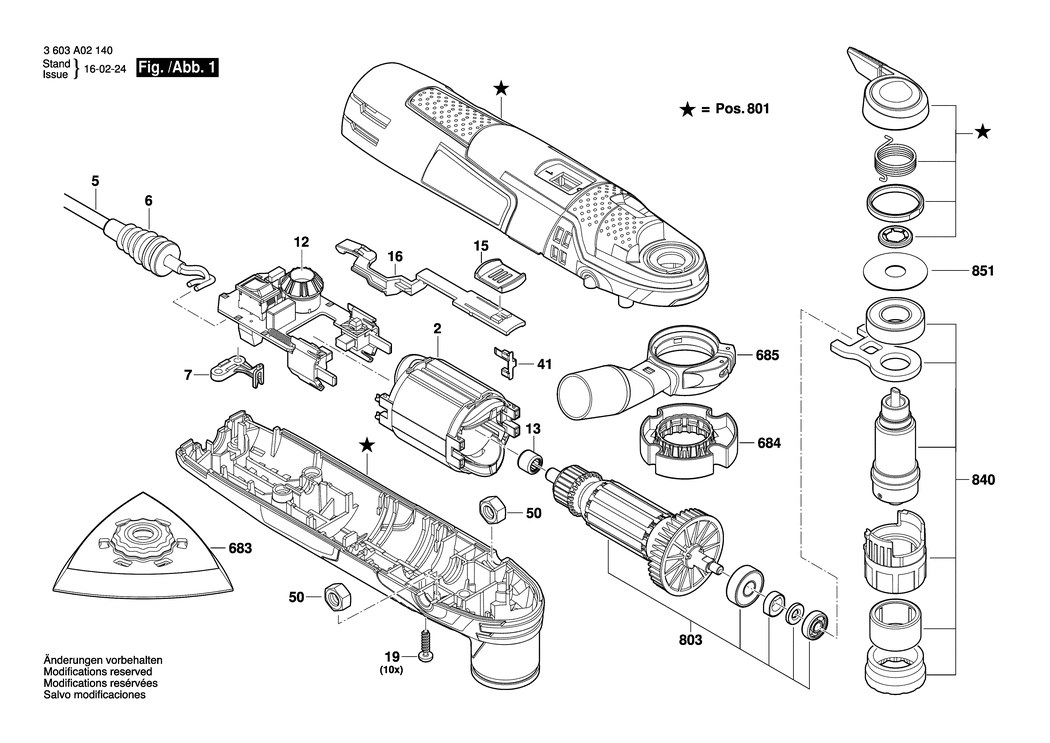

An exploded drawing and listing for the Bosch PMF 250 CES / 3603A02140 / --- 240 Volt

	Ex VAT	Inc VAT
2 - FIELD BSD-2609007814.A8 2609007814	£28.59	£34.31
5 - POWER SUPPLY CORD AUS 240V 2.6m 2 x 0.75mm H05 VV-F BSD-2604460297.A0 2604460297	£11.30	£13.56
6 - GROMMET Durchmesser 6.2-6.9 BSD-2609005502.A19 2609005502	£2.74	£3.29
7 - CABLE CLIP BSD-2609006171.A12 2609006171	£1.75	£2.10
12 - ELECTRONIC MODULE BSD-2609007131.A1 2609007131	£48.38	£58.06
13 - NEEDLE BEARING BSD-2600917002.A17 2600917002	£3.72	£4.47
15 - SLIDE BUTTON BSD-2609005541.A2 2609005541	£2.80	£3.36
16 - SLIDER BSD-2609007716.A10 2609007716	£1.75	£2.10
19 - SCREW 4x16 BSD-2603490022.A746 2603490022	£1.84	£2.21
41 - CONTACT SPRING BSD-2601329037.A47 2601329037	£1.75	£2.10
50 - HEX NUT DIN 934-M8-8-A BSD-2915011009.A99 2915011009	£2.74	£3.29
683 - SANDER PLATE BSD-1600A008LT.A3 1600A008LT	£12.04	£14.45
684 - DEPTH GAUGE BSD-1600A0087V.A9 1600A0087V	£1.75	£2.10
685 - DUST EXTRACTION BSD-1600A0087K.A2 1600A0087K	£13.12	£15.75
801 - HOUSING ASSEMBLY BSD-1607000C5M.A1 1607000C5M	£25.05	£30.06
803 - ARMATURE ASSEMBLY 220-240V BSD-1604010B5G.A3 1604010B5G	£50.80	£60.96
840 - TOOLHOLDER BSD-161859710L.A0 161859710L	£54.42	£65.30
851 - FELT DISC BSD-1607000C6D.A1 1607000C6D	£1.75	£2.10

Attribute Name	Value
Brand	Bosch
