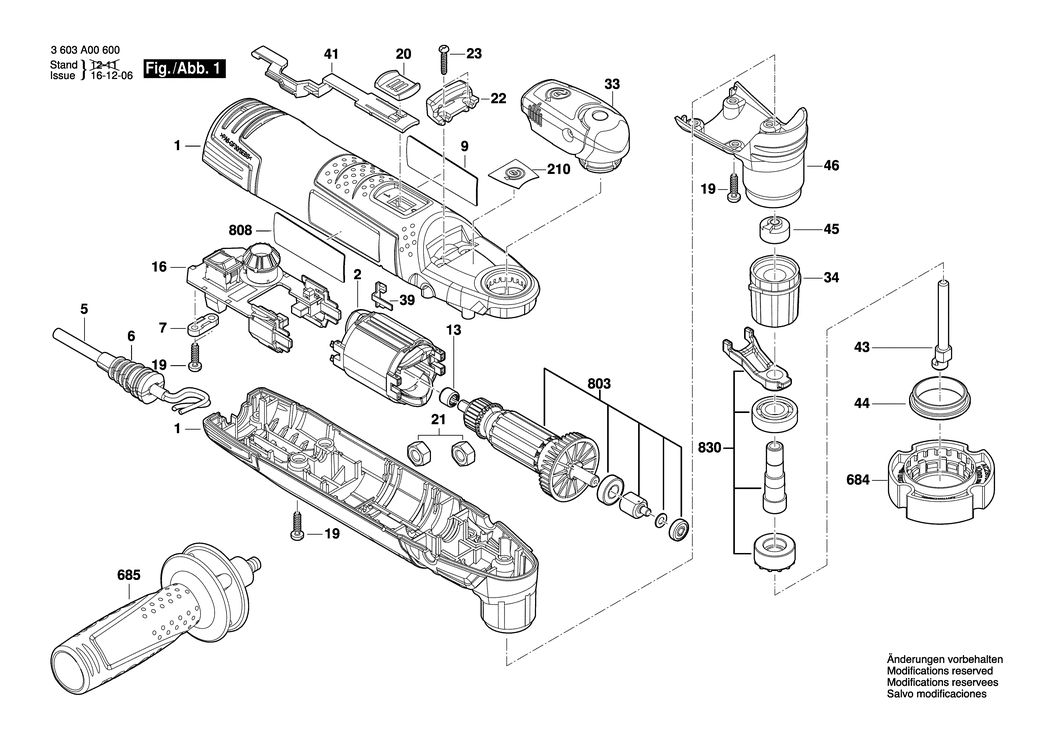

1 - HOUSING
BSD-2609005891.A1
2609005891
|
£21.52
|
£25.83
|
|
|
2 - FIELD 220-240V
BSD-2609005871.A1
2609005871
|
£33.74
|
£40.49
|
|
|
5 - POWER SUPPLY CORD GB 230V 2.65m 2 x 1.0mm H05 VV-F
BSD-2604460243.A23
2604460243
|
£13.12
|
£15.75
|
|
|
6 - GROMMET Durchmesser 6.2-6.9
BSD-2609005502.A17
2609005502
|
£2.74
|
£3.29
|
|
|
7 - CABLE CLIP
BSD-2609006171.A4
2609006171
|
£1.75
|
£2.10
|
|
|
9 - MANUFACTURER'S NAMEPLATE PMF 250 CES
BSD-2609006238.A0
2609006238
|
£1.84
|
£2.21
|
|
|
13 - NEEDLE BEARING
BSD-2600917002.A26
2600917002
|
£3.72
|
£4.47
|
|
|
16 - ELECTRONICS MODULE
BSD-2609005719.A4
2609005719
|
£48.68
|
£58.42
|
|
|
19 - SCREW 4x16
BSD-2603490022.A755
2603490022
|
£1.84
|
£2.21
|
|
|
20 - SLIDE BUTTON
BSD-2609005541.A8
2609005541
|
£2.80
|
£3.36
|
|
|
21 - HEX NUT DIN 934-M8-8-A
BSD-2915011009.A103
2915011009
|
£2.74
|
£3.29
|
|
|
22 - NOTCHED PLATE
BSD-2609005893.A0
2609005893
|
£2.27
|
£2.72
|
|
|
23 - TORX OVAL-HEAD SCREW 3x10
BSD-2603490017.A850
2603490017
|
£2.27
|
£2.72
|
|
|
33 - LEVER CARRIER
BSD-2609006493.A0
2609006493
|
£25.05
|
£30.06
|
|
|
34 - BEARING HOLDER
BSD-2609006492.A1
2609006492
|
£5.58
|
£6.70
|
|
|
39 - CONTACT SPRING
BSD-2601329037.A42
2601329037
|
£1.75
|
£2.10
|
|
|
41 - SLIDER
BSD-2609007716.A7
2609007716
|
£1.75
|
£2.10
|
|
|
43 - STRAINING SCREW
BSD-2609006241.A1
2609006241
|
£16.41
|
£19.69
|
|
|
44 - SEAL
BSD-2609005901.A0
2609005901
|
£1.84
|
£2.21
|
|
|
45 - CLAMPING NUT
BSD-2609006077.A1
2609006077
|
£12.04
|
£14.45
|
|
|
46 - HOUSING
BSD-2609005899.A1
2609005899
|
£14.91
|
£17.89
|
|
|
210 - STICKER
BSD-2609006519.A1
2609006519
|
£2.61
|
£3.13
|
|
|
684 - DEPTH-GAUGE
BSD-2609005815.A3
2609005815
|
£3.91
|
£4.69
|
|
|
685 - AUXILIARY HANDLE
BSD-2609006243.A0
2609006243
|
£14.91
|
£17.89
|
|
|
803 - ARMATURE ASSEMBLY 220-240V
BSD-2609006178.A0
2609006178
|
£51.22
|
£61.47
|
|
|
808 - NAMEPLATE
BSD-160111A2Y1.A0
160111A2Y1
|
£2.74
|
£3.29
|
|
|
830 - DRIVE SHAFT
BSD-2609006177.A1
2609006177
|
-
|
|
|
