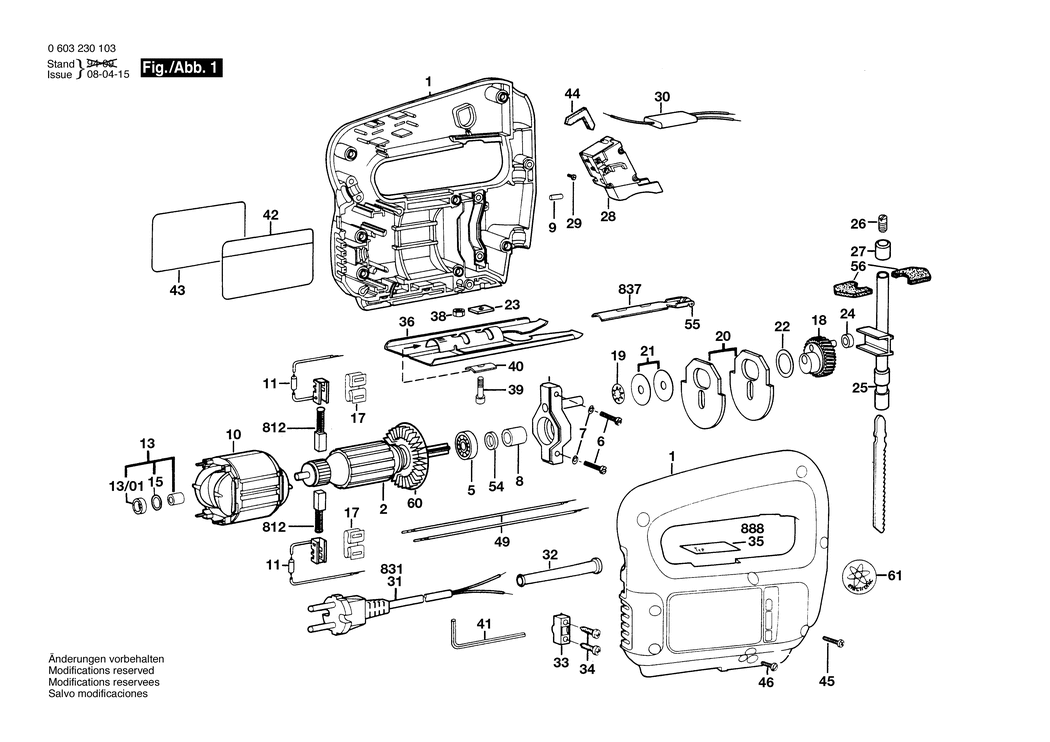

1 - HOUSING SECTION
BSD-2605104142.A7
2605104142
|
-
|
|
|
|
1 - HOUSING SECTION
BSD-2605104149.A5
2605104149
|
-
|
|
|
|
2 - ARMATURE 220-240V
BSD-2604010558.A26
2604010558
|
-
|
|
|
|
3 - BEARING BRACKET
BSD-1619P02422.A6
1619P02422
|
£13.78
|
£16.54
|
|
|
5 - GROOVE BALL BEARING 9x24x7
BSD-2600905021.A216
2600905021
|
£8.67
|
£10.41
|
|
|
6 - SCREW AM 4x18 DIN 84-8.8
BSD-2910020128.A22
2910020128
|
-
|
|
|
|
7 - SPRING LOCK WASHER DIN 128-A4-FST
BSD-2916690003.A1271
2916690003
|
£1.75
|
£2.10
|
|
|
8 - GUIDE SLEEVE
BSD-2600400024.A60
2600400024
|
£2.94
|
£3.53
|
|
|
9 - BEARING BOLT
BSD-2603201020.A38
2603201020
|
£1.84
|
£2.21
|
|
|
9 - NEEDLE ROLLER A 3x9.8G2DIN 5402
BSD-1903201041.A32
1903201041
|
-
|
|
|
|
10 - FIELD 230V
BSD-2604220392.A35
2604220392
|
£25.05
|
£30.06
|
|
|
11 - BRUSH HOLDER
BSD-2604449027.A96
2604449027
|
£1.84
|
£2.21
|
|
|
13 - SINTERED-METAL BUSHING
BSD-1600301900.A207
1600301900
|
-
|
|
|
|
13 - FELT WASHER
BSD-1600205023.A196
1600205023
|
£1.38
|
£1.66
|
|
|
15 - O-RING 8.0x2.5 MM
BSD-1610210014.A239
1610210014
|
-
|
|
|
|
17 - HOLDING SPRING
BSD-1619P09928.A58
1619P09928
|
£1.75
|
£2.10
|
|
|
18 - ECCENTRIC COG WHEEL Z=39
BSD-2606319073.A15
2606319073
|
-
|
|
|
|
19 - SPRING WASHER
BSD-2600150050.A54
2600150050
|
£1.84
|
£2.21
|
|
|
20 - COUNTER WEIGHT
BSD-1619P02421.A59
1619P02421
|
£8.67
|
£10.41
|
|
|
21 - SHIM 0.5 MM
BSD-2600102658.A50
2600102658
|
£1.38
|
£1.66
|
|
|
21 - SHIM 0.2 MM
BSD-2600102656.A19
2600102656
|
£1.32
|
£1.58
|
|
|
22 - SHIM dia 18.3 MM
BSD-2600101673.A73
2600101673
|
£1.84
|
£2.21
|
|
|
23 - FIXING PLATE
BSD-2601030006.A67
2601030006
|
-
|
|
|
|
24 - NEEDLE BEARING
BSD-2600917904.A51
2600917904
|
£7.72
|
£9.27
|
|
|
25 - LIFTING ROD
BSD-1619P12589.A20
1619P12589
|
£22.76
|
£27.31
|
|
|
26 - CLAMP SCREW
BSD-2603400000.A137
2603400000
|
£4.26
|
£5.11
|
|
|
27 - SINTERED-METAL BUSHING
BSD-2600301049.A43
2600301049
|
£1.84
|
£2.21
|
|
|
28 - SWITCH
BSD-2607200260.A310
2607200260
|
£11.87
|
£14.24
|
|
|
29 - SOCKET HEAD CAP SCREW M3x6.5-4.8
BSD-2603410001.A1521
2603410001
|
£1.84
|
£2.21
|
|
|
30 - SUPPRESSION CAPACITOR
BSD-2607329101.A10
2607329101
|
-
|
|
|
|
32 - GROMMET dia6.4-dia7.5x75 MM
BSD-1600703016.A204
1600703016
|
£1.75
|
£2.10
|
|
|
32 - GROMMET dia9.5 MM
BSD-2600703006.A20
2600703006
|
-
|
|
|
|
33 - CABLE CLIP
BSD-2601035001.A1983
2601035001
|
£1.84
|
£2.21
|
|
|
34 - TAPPING SCREW DIN 7981-ST3.9x16-C-H
BSD-2910611019.A507
2910611019
|
£2.94
|
£3.53
|
|
|
36 - BASE PLATE
BSD-2601016012.A36
2601016012
|
£9.11
|
£10.93
|
|
|
38 - HEX NUT
BSD-2603300009.A27
2603300009
|
-
|
|
|
|
39 - HEX SOCKET HEAD CAP SCREW DIN 912-M4x16-8.8
BSD-2910141126.A8
2910141126
|
-
|
|
|
|
40 - PROFILE BEADING
BSD-2601032017.A43
2601032017
|
£1.75
|
£2.10
|
|
|
41 - OFFSET SCREWDRIVER DIN 911. SW3
BSD-1907950004.A17
1907950004
|
£5.87
|
£7.04
|
|
|
42 - STICKER
BSD-2601110613.A8
2601110613
|
-
|
|
|
|
43 - STICKER
BSD-2601110143.A1
2601110143
|
-
|
|
|
|
44 - DAMPING PLATE
BSD-2601022000.A334
2601022000
|
£1.75
|
£2.10
|
|
|
45 - TAPPING SCREW DIN 7981-3.9x19-C-Z-ST
BSD-2912401020.A269
2912401020
|
£2.16
|
£2.59
|
|
|
46 - TAPPING SCREW DIN 7981-BZ3.9x9.5-A2
BSD-2910611417.A11
2910611417
|
-
|
|
|
|
49 - CONNECTING CABLE L = 278 MM
BSD-2604448012.A99
2604448012
|
£1.38
|
£1.66
|
|
|
51 - SILICON DIODE
BSD-2607320008.A52
2607320008
|
-
|
|
|
|
52 - SUPPRESSOR BOX
BSD-2604465024.A7
2604465024
|
-
|
|
|
|
53 - CABLE
BSD-2604448002.A21
2604448002
|
-
|
|
|
|
54 - SUPPORTING DISC
BSD-2600103013.A42
2600103013
|
£1.32
|
£1.58
|
|
|
56 - LUBRICATING FELT
BSD-2601020007.A30
2601020007
|
£1.84
|
£2.21
|
|
|
60 - FAN
BSD-2606610047.A106
2606610047
|
-
|
|
|
|
61 - STICKER
BSD-2601110041.A52
2601110041
|
-
|
|
|
|
812 - CARBON-BRUSH SET
BSD-2604321904.A223
2604321904
|
£10.61
|
£12.73
|
|
|
831 - POWER SUPPLY CORD EU 230V 4.15m 2 x 1.0mm H05 RN-F
BSD-1607000386.A388
1607000386
|
£22.60
|
£27.12
|
|
|
837 - RETAINING BRACKET
BSD-2608135901.A27
2608135901
|
£11.30
|
£13.56
|
|
|
888 - NAMEPLATE
BSD-160111A3H3.A4628
160111A3H3
|
£2.74
|
£3.29
|
|
