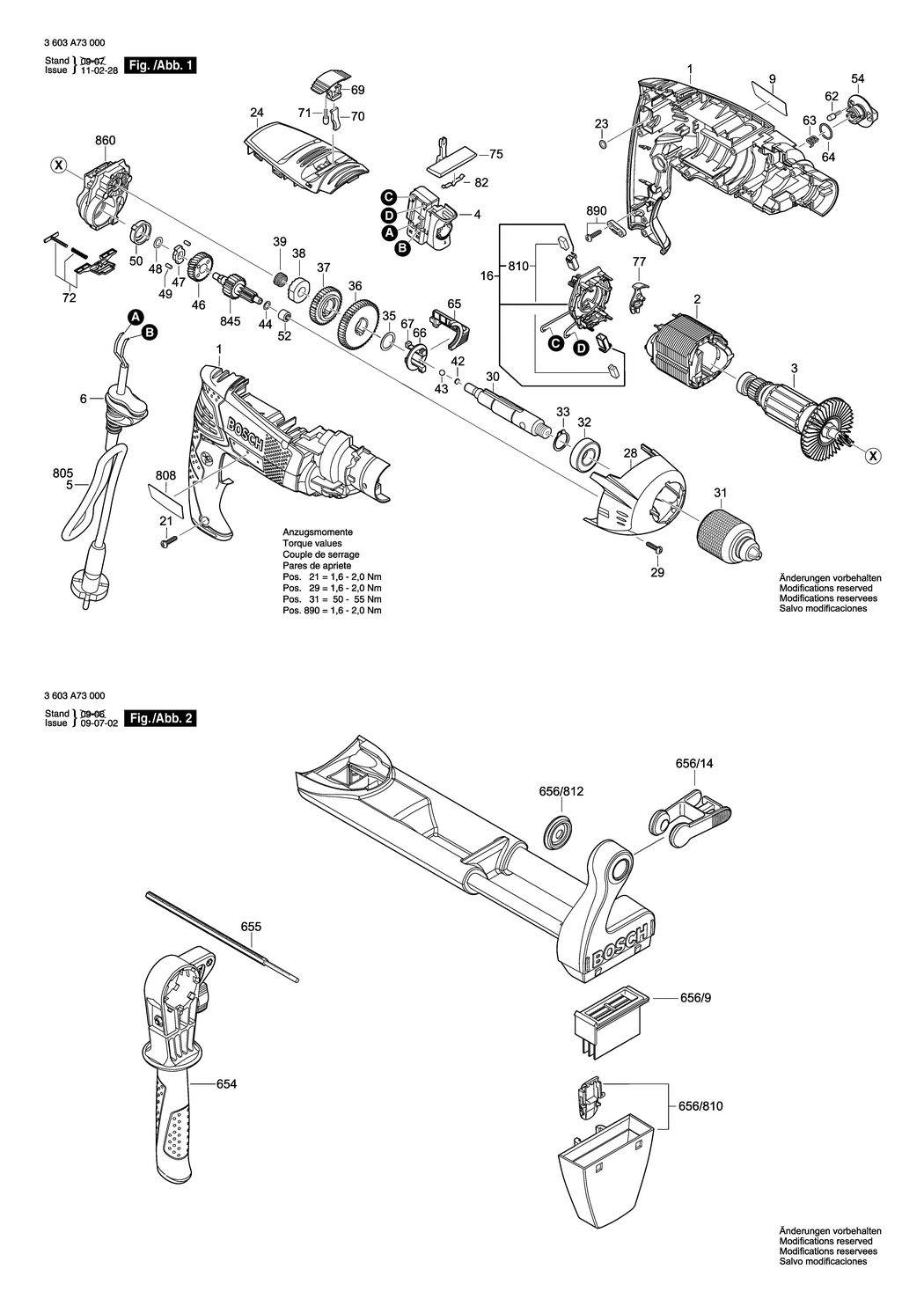

1 - HOUSING SECTION
BSD-2609002944.A4
2609002944
|
-
|
|
|
|
2 - FIELD 230V
BSD-2604220669.A24
2604220669
|
£21.68
|
£26.01
|
|
|
3 - ARMATURE 230V
BSD-2609002946.A3
2609002946
|
£40.80
|
£48.96
|
|
|
4 - SWITCH
BSD-1607200518.A1
1607200518
|
£21.68
|
£26.01
|
|
|
5 - POWER SUPPLY CORD GB 230V 2.65m 2 x 1.0mm H05 VV-F
BSD-2604460243.A36
2604460243
|
£13.12
|
£15.75
|
|
|
6 - GROMMET dia6.4-dia7.2x76 MM
BSD-2609003080.A24
2609003080
|
£1.75
|
£2.10
|
|
|
9 - MANUFACTURER'S NAMEPLATE PSB 850-2 RE
BSD-2609002966.A2
2609002966
|
£2.61
|
£3.13
|
|
|
9 - MANUFACTURER'S NAMEPLATE PSB 850-2 RA
BSD-2609002968.A4
2609002968
|
£2.33
|
£2.80
|
|
|
16 - BRUSH HOLDER
BSD-2609002949.A1
2609002949
|
£11.78
|
£14.13
|
|
|
21 - SCREW 4x16
BSD-2603490022.A814
2603490022
|
£1.75
|
£2.10
|
|
|
23 - O-RING 5.0x1.5 MM
BSD-1900210000.A412
1900210000
|
£1.75
|
£2.10
|
|
|
24 - COVER PANEL
BSD-2609002956.A3
2609002956
|
£3.72
|
£4.47
|
|
|
28 - COVER
BSD-2609002957.A11
2609002957
|
£11.30
|
£13.56
|
|
|
29 - SCREW 4x16
BSD-2603490022.A813
2603490022
|
£1.75
|
£2.10
|
|
|
30 - DRILLING SPINDLE
BSD-2606135130.A41
2606135130
|
£21.68
|
£26.01
|
|
|
31 - KEYLESS CHUCK
BSD-2609003251.A2
2609003251
|
£45.67
|
£54.80
|
|
|
32 - GROOVE BALL BEARING 17x35x10
BSD-1900905163.A478
1900905163
|
£11.30
|
£13.56
|
|
|
33 - SPRING RETAINING RING DIN 471 17x1 MM
BSD-2916650008.A436
2916650008
|
£1.75
|
£2.10
|
|
|
35 - SHIM 0.5 MM
BSD-2600100695.A256
2600100695
|
£1.75
|
£2.10
|
|
|
36 - CYLINDRICAL GEAR
BSD-2606317084.A6
2606317084
|
£13.12
|
£15.75
|
|
|
37 - CYLINDRICAL GEAR
BSD-2606317085.A13
2606317085
|
£10.10
|
£12.12
|
|
|
38 - CATCH DISK
BSD-2600190105.A15
2600190105
|
£2.61
|
£3.13
|
|
|
39 - COMPRESSION SPRING
BSD-2604616013.A93
2604616013
|
£2.61
|
£3.13
|
|
|
42 - SHIM WASHER 1.0 MM
BSD-2600000021.A26
2600000021
|
£1.75
|
£2.10
|
|
|
42 - SHIM WASHER 1.35 MM
BSD-2600000030.A106
2600000030
|
£1.75
|
£2.10
|
|
|
42 - SHIM WASHER 1.7 MM
BSD-2600000031.A28
2600000031
|
£1.75
|
£2.10
|
|
|
43 - BALL DIN 5401-5 G28
BSD-1903230009.A382
1903230009
|
£1.75
|
£2.10
|
|
|
43 - BALL DIN 5401-5.5MM-III-ST
BSD-1903230010.A435
1903230010
|
£1.75
|
£2.10
|
|
|
43 - BALL 5.25 MM
BSD-2603230007.A14
2603230007
|
£1.75
|
£2.10
|
|
|
44 - SHIM 0.3 MM
BSD-2600100607.A791
2600100607
|
£1.75
|
£2.10
|
|
|
46 - CARRIER
BSD-160312304U.A21
160312304U
|
£13.12
|
£15.75
|
|
|
47 - ECCENTRIC
BSD-2602210043.A13
2602210043
|
£2.80
|
£3.36
|
|
|
48 - SHIM 0.2 MM
BSD-1600100632.A102
1600100632
|
£1.75
|
£2.10
|
|
|
49 - ROLLER BODY
BSD-2609007376.A15
2609007376
|
£1.75
|
£2.10
|
|
|
50 - RETAINING SNAP RING
BSD-2600202008.A19
2600202008
|
£4.26
|
£5.11
|
|
|
52 - NEEDLE-ROLLER BEARING dia6 MM
BSD-2600914010.A837
2600914010
|
£2.80
|
£3.36
|
|
|
54 - ROTARY KNOB
BSD-2609002959.A14
2609002959
|
£4.26
|
£5.11
|
|
|
62 - RATCHET CAP
BSD-2600590006.A975
2600590006
|
£1.75
|
£2.10
|
|
|
63 - TORSION SPRING
BSD-2609004109.A3
2609004109
|
£1.75
|
£2.10
|
|
|
64 - O-RING 14.0x1.3 MM
BSD-3600210014.A23
3600210014
|
£1.75
|
£2.10
|
|
|
65 - FORK LEVER
BSD-2609002961.A0
2609002961
|
£2.16
|
£2.59
|
|
|
66 - RETAINING WASHER
BSD-2600101671.A287
2600101671
|
£1.75
|
£2.10
|
|
|
67 - FLAT KEY
BSD-2602300032.A110
2602300032
|
£3.72
|
£4.47
|
|
|
69 - CHANGEOVER LEVER
BSD-2609002962.A14
2609002962
|
£2.16
|
£2.59
|
|
|
70 - GUIDING PLATE
BSD-2601990044.A24
2601990044
|
£1.75
|
£2.10
|
|
|
71 - RATCHET CAP
BSD-2600590006.A976
2600590006
|
£1.75
|
£2.10
|
|
|
72 - SHUT-OFF VALVE
BSD-2609002963.A0
2609002963
|
£4.26
|
£5.11
|
|
|
75 - CHANGE-OVER SWITCH
BSD-2609002954.A7
2609002954
|
£2.16
|
£2.59
|
|
|
77 - INDICATOR BUTTON
BSD-2609002955.A7
2609002955
|
£2.61
|
£3.13
|
|
|
82 - LEAF SPRING
BSD-2601290030.A18
2601290030
|
£1.75
|
£2.10
|
|
|
654 - AUXILIARY HANDLE
BSD-2609002967.A0
2609002967
|
£12.04
|
£14.45
|
|
|
655 - DEPTH-GAUGE
BSD-2609005615.A7
2609005615
|
£4.26
|
£5.11
|
|
|
656/9 - FILTER
BSD-2609002929.A29
2609002929
|
£7.36
|
£8.83
|
|
|
656/14 - LOCK
BSD-2609003805.A21
2609003805
|
£2.16
|
£2.59
|
|
|
656/810 - DUST CONTAINER
BSD-2609003983.A10
2609003983
|
-
|
|
|
|
656/812 - FRICTION RING
BSD-2600206003.A18
2600206003
|
£2.52
|
£3.02
|
|
|
808 - NAMEPLATE
BSD-2609003475.A0
2609003475
|
£2.33
|
£2.80
|
|
|
810 - CARBON-BRUSH SET
BSD-2609004163.A11
2609004163
|
£8.67
|
£10.41
|
|
|
845 - TRANSMISSION
BSD-2606309940.A5
2606309940
|
£21.52
|
£25.83
|
|
|
860 - BEARING BRACKET
BSD-2609002984.A2
2609002984
|
£21.68
|
£26.01
|
|
|
890 - FASTENING PARTS KIT
BSD-2607001305.A41
2607001305
|
£4.26
|
£5.11
|
|
