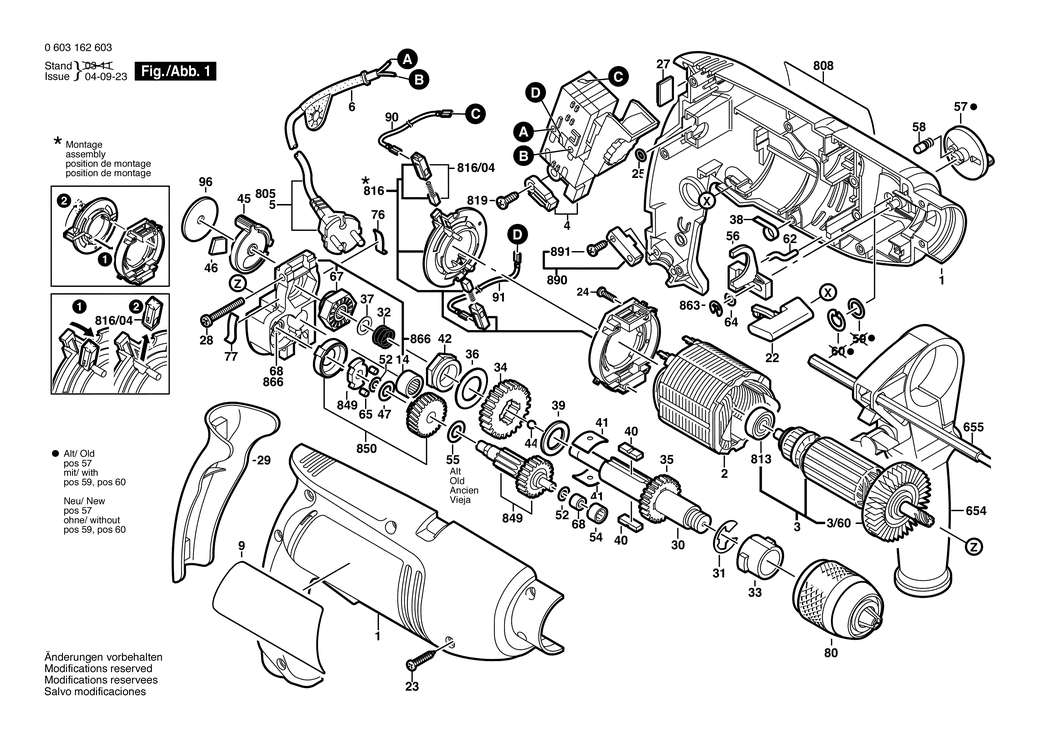

1 - HOUSING SECTION
BSD-2605104600.A4
2605104600
|
-
|
|
|
|
2 - FIELD 230V
BSD-2604220647.A30
2604220647
|
£21.52
|
£25.83
|
|
|
3 - ARMATURE 230-240V
BSD-2604011166.A8
2604011166
|
£45.67
|
£54.80
|
|
|
3/60 - FAN
BSD-2606610029.A436
2606610029
|
£2.61
|
£3.13
|
|
|
4 - SWITCH
BSD-2607200556.A119
2607200556
|
£27.23
|
£32.68
|
|
|
4 - SWITCH
BSD-2607200601.A24
2607200601
|
£19.45
|
£23.34
|
|
|
5 - POWER SUPPLY CORD CH 2.65m 2 x 0.75mm H05 VV-F
BSD-1604460433.A35
1604460433
|
£11.30
|
£13.56
|
|
|
6 - GROMMET dia6.2-dia6.9x90 MM
BSD-2600707066.A148
2600707066
|
£2.48
|
£2.97
|
|
|
9 - MANUFACTURER'S NAMEPLATE PSB 750-2 RE
BSD-2601116715.A0
2601116715
|
-
|
|
|
|
14 - NEEDLE BEARING
BSD-2600914019.A109
2600914019
|
£5.30
|
£6.36
|
|
|
22 - CHANGE-OVER SWITCH
BSD-2602098008.A7
2602098008
|
£1.75
|
£2.10
|
|
|
23 - SCREW 4x16
BSD-2603490022.A2689
2603490022
|
£1.75
|
£2.10
|
|
|
24 - TAPPING SCREW DIN 7981-ST2.2x9.5-C-H
BSD-2910611002.A11
2910611002
|
£1.75
|
£2.10
|
|
|
25 - O-RING 5.0x1.5 MM
BSD-1900210000.A15
1900210000
|
£1.75
|
£2.10
|
|
|
27 - DAMPING ELEMENT
BSD-2603239024.A58
2603239024
|
£1.75
|
£2.10
|
|
|
28 - OVAL-HEAD SCREW
BSD-2603429006.A34
2603429006
|
£1.32
|
£1.58
|
|
|
29 - HANDLE COVER
BSD-2608040109.A37
2608040109
|
£4.26
|
£5.11
|
|
|
30 - DRILLING SPINDLE 1/2
BSD-2606135093.A3
2606135093
|
-
|
|
|
|
31 - LOCKING WASHER 0.6 MM
BSD-2600118001.A180
2600118001
|
£1.75
|
£2.10
|
|
|
31 - LOCKING WASHER 0.8 MM
BSD-2600118002.A57
2600118002
|
£1.75
|
£2.10
|
|
|
31 - LOCKING WASHER 0.3 MM
BSD-2600118006.A220
2600118006
|
-
|
|
|
|
32 - COMPRESSION SPRING
BSD-2604616006.A172
2604616006
|
£1.75
|
£2.10
|
|
|
33 - SINTERED-METAL BUSHING
BSD-2600301054.A6
2600301054
|
£2.33
|
£2.80
|
|
|
34 - CYLINDRICAL GEAR
BSD-2606317082.A33
2606317082
|
£13.12
|
£15.75
|
|
|
35 - CYLINDRICAL GEAR
BSD-2606317083.A23
2606317083
|
£11.30
|
£13.56
|
|
|
36 - SHIM 0.5 MM
BSD-2600100695.A25
2600100695
|
£1.75
|
£2.10
|
|
|
37 - SHIM 0.3 MM
BSD-2600101047.A5
2600101047
|
£1.75
|
£2.10
|
|
|
38 - CONTACT STRAP
BSD-2601329072.A35
2601329072
|
-
|
|
|
|
39 - RETAINING WASHER
BSD-2600101084.A6
2600101084
|
£1.75
|
£2.10
|
|
|
40 - FLAT KEY
BSD-2602300034.A6
2602300034
|
-
|
|
|
|
41 - GUIDING PLATE
BSD-2601098031.A22
2601098031
|
£1.75
|
£2.10
|
|
|
42 - CATCH DISK
BSD-2600190070.A46
2600190070
|
£5.58
|
£6.70
|
|
|
44 - BALL DIN 5401-5.5MM-III-ST
BSD-1903230010.A402
1903230010
|
£1.75
|
£2.10
|
|
|
45 - INDEXING DISK
BSD-2601990001.A87
2601990001
|
£1.32
|
£1.58
|
|
|
46 - PRESSURE PLATE
BSD-2601074003.A158
2601074003
|
£1.75
|
£2.10
|
|
|
47 - SHIM 0.2 MM
BSD-1600100632.A354
1600100632
|
£1.75
|
£2.10
|
|
|
52 - SHIM 0.3 MM
BSD-2600100607.A289
2600100607
|
£1.75
|
£2.10
|
|
|
54 - BEARING SLEEVE
BSD-2600400027.A11
2600400027
|
£4.26
|
£5.11
|
|
|
55 - SHIM 0.5 MM
BSD-2600100637.A17
2600100637
|
£1.75
|
£2.10
|
|
|
56 - FORK LEVER
BSD-2601990009.A4
2601990009
|
£2.29
|
£2.75
|
|
|
57 - ROTARY HEAD
BSD-2602026091.A22
2602026091
|
-
|
|
|
|
58 - RATCHET CAP
BSD-2600590006.A499
2600590006
|
£1.75
|
£2.10
|
|
|
62 - DRIVER PIN
BSD-2601335001.A33
2601335001
|
£2.16
|
£2.59
|
|
|
64 - SHIM WASHER
BSD-2600100618.A95
2600100618
|
£1.75
|
£2.10
|
|
|
65 - ROLLER BODY
BSD-2609007376.A39
2609007376
|
£1.75
|
£2.10
|
|
|
67 - CATCH DISK
BSD-2600190071.A20
2600190071
|
£6.52
|
£7.83
|
|
|
68 - NEEDLE-ROLLER BEARING dia6 MM
BSD-2600914010.A340
2600914010
|
£2.80
|
£3.36
|
|
|
76 - FELT STRIP
BSD-2601005011.A179
2601005011
|
-
|
|
|
|
77 - FELT STRIP
BSD-2601005021.A37
2601005021
|
£1.32
|
£1.58
|
|
|
80 - KEYLESS CHUCK 1/2
BSD-2608572121.A1
2608572121
|
£51.22
|
£61.47
|
|
|
90 - PVC-INSULATED CABLE L=120 MM
BSD-2604448228.A4
2604448228
|
£2.16
|
£2.59
|
|
|
91 - PVC-INSULATED CABLE L=95 MM
BSD-1614431025.A116
1614431025
|
£2.61
|
£3.13
|
|
|
96 - PLAIN WASHER
BSD-2600100066.A25
2600100066
|
£1.75
|
£2.10
|
|
|
210 - REFERENCE PLATE
BSD-2601116284.A20
2601116284
|
£1.32
|
£1.58
|
|
|
654 - AUXILIARY HANDLE
BSD-2602025125.A197
2602025125
|
£10.10
|
£12.12
|
|
|
655 - DEPTH-GAUGE
BSD-2609005615.A233
2609005615
|
£4.26
|
£5.11
|
|
|
808 - MARKING PLATE
BSD-2601119806.A0
2601119806
|
-
|
|
|
|
813 - GROOVE BALL BEARING 7x19x6
BSD-2600905103.A34
2600905103
|
£5.58
|
£6.70
|
|
|
816 - BRUSH PLATE
BSD-2604337061.A7
2604337061
|
£14.91
|
£17.89
|
|
|
816/04 - BRUSH HOLDER
BSD-1607000CJ1.A70
1607000CJ1
|
-
|
|
|
|
819 - TAPPING SCREW DIN 7981-ST2.9x13-C-H
BSD-2910611006.A387
2910611006
|
£1.75
|
£2.10
|
|
|
849 - TOOTHED SHAFT
BSD-2606309936.A10
2606309936
|
-
|
|
|
|
850 - CARRIER
BSD-2606440900.A15
2606440900
|
-
|
|
|
|
863 - LOCKING WASHER DIN 6799-4-FSt
BSD-2916080007.A507
2916080007
|
£2.61
|
£3.13
|
|
|
866 - BEARING BRACKET
BSD-2605807934.A40
2605807934
|
-
|
|
|
|
890 - FASTENING PARTS KIT
BSD-2607001305.A301
2607001305
|
£4.26
|
£5.11
|
|
|
891 - CROSS RECESSED-HEAD SCREW M3x5
BSD-2603410046.A22
2603410046
|
£2.16
|
£2.59
|
|
