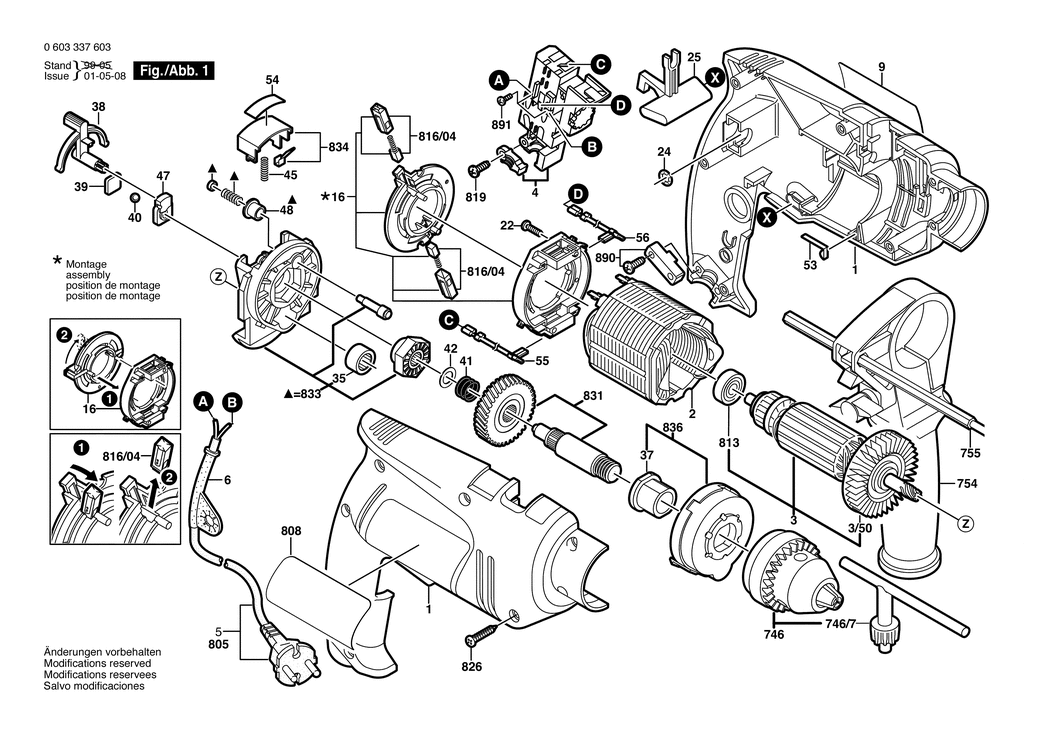

1 - HOUSING SECTION
BSD-2605104599.A7
2605104599
|
-
|
|
|
|
2 - FIELD 220-240V
BSD-2604220601.A25
2604220601
|
-
|
|
|
|
3 - ARMATURE 230-240V
BSD-2604011173.A21
2604011173
|
-
|
|
|
|
3/50 - FAN
BSD-1606610116.A47
1606610116
|
£2.64
|
£3.17
|
|
|
4 - SWITCH
BSD-2607200556.A37
2607200556
|
£28.59
|
£34.31
|
|
|
5 - POWER SUPPLY CORD GB 230V 2.65m 2 x 1.0mm H05 VV-F
BSD-2604460147.A58
2604460147
|
£16.41
|
£19.69
|
|
|
6 - GROMMET dia6.9 MM
BSD-2600707059.A393
2600707059
|
£3.91
|
£4.69
|
|
|
9 - MANUFACTURER'S NAMEPLATE
BSD-2601119551.A5
2601119551
|
-
|
|
|
|
16 - BRUSH PLATE
BSD-2604337061.A37
2604337061
|
£15.65
|
£18.78
|
|
|
22 - TAPPING SCREW DIN 7981-ST2.2x9.5-C-H
BSD-2910611002.A210
2910611002
|
£1.75
|
£2.10
|
|
|
24 - O-RING 5.0x1.5 MM
BSD-1900210000.A428
1900210000
|
£1.84
|
£2.21
|
|
|
25 - CHANGE-OVER SWITCH
BSD-2602098008.A94
2602098008
|
£1.84
|
£2.21
|
|
|
35 - NEEDLE BEARING
BSD-2600914019.A13
2600914019
|
£5.57
|
£6.68
|
|
|
37 - POROUS BEARING
BSD-2600301052.A43
2600301052
|
-
|
|
|
|
38 - INDEXING DISK
BSD-2601990010.A23
2601990010
|
-
|
|
|
|
39 - PRESSURE PLATE
BSD-2601074004.A103
2601074004
|
£1.75
|
£2.10
|
|
|
40 - BALL DIN 5401-5 G28
BSD-1903230009.A225
1903230009
|
£1.84
|
£2.21
|
|
|
41 - COMPRESSION SPRING
BSD-2604616006.A56
2604616006
|
£1.84
|
£2.21
|
|
|
42 - SHIM 0.3 MM
BSD-2600101047.A337
2600101047
|
£1.84
|
£2.21
|
|
|
45 - COMPRESSION SPRING
BSD-2604610047.A75
2604610047
|
£1.84
|
£2.21
|
|
|
47 - FRAME
BSD-2608040120.A26
2608040120
|
£2.61
|
£3.13
|
|
|
48 - SLEEVE
BSD-2600390031.A4
2600390031
|
-
|
|
|
|
53 - CONTACT STRAP
BSD-2601329043.A17
2601329043
|
£1.38
|
£1.66
|
|
|
55 - PVC-INSULATED CABLE L=95 MM
BSD-1614431025.A89
1614431025
|
£2.61
|
£3.13
|
|
|
56 - PVC-INSULATED CABLE L=120 MM
BSD-2604448228.A74
2604448228
|
£2.16
|
£2.59
|
|
|
746 - KEY CHUCK 1/2
BSD-2608571056.A4
2608571056
|
£18.37
|
£22.04
|
|
|
746/7 - CHUCK WRENCH SG2
BSD-2607950007.A1570
2607950007
|
£6.85
|
£8.22
|
|
|
754 - AUXILIARY HANDLE 1/2
BSD-2602025102.A17
2602025102
|
£10.86
|
£13.03
|
|
|
755 - DEPTH-GAUGE
BSD-2603001019.A154
2603001019
|
£2.63
|
£3.16
|
|
|
808 - NAMEPLATE
BSD-2601119684.A0
2601119684
|
-
|
|
|
|
813 - BALL BEARING 7x19x6
BSD-2600905032.A89
2600905032
|
£5.57
|
£6.68
|
|
|
816/04 - CARBON-BRUSH SET
BSD-2607014017.A32
2607014017
|
-
|
|
|
|
819 - TAPPING SCREW DIN 7981-ST2.9x13-C-H
BSD-2910611006.A79
2910611006
|
£1.84
|
£2.21
|
|
|
826 - TAPPING SCREW DIN 7981-3.9x19-C-Z-ST
BSD-2912401020.A930
2912401020
|
£2.16
|
£2.59
|
|
|
831 - DRILLING SPINDLE 1/2
BSD-2606135929.A110
2606135929
|
-
|
|
|
|
833 - BEARING BRACKET
BSD-2605807932.A89
2605807932
|
-
|
|
|
|
834 - PUSH-BUTTON
BSD-2603231040.A37
2603231040
|
-
|
|
|
|
836 - GEAR COVER
BSD-2605808922.A43
2605808922
|
£11.37
|
£13.64
|
|
|
890 - FASTENING PARTS KIT
BSD-2607001305.A91
2607001305
|
£4.48
|
£5.37
|
|
|
891 - CROSS RECESSED-HEAD SCREW M3x5
BSD-2603410046.A157
2603410046
|
£2.27
|
£2.72
|
|
