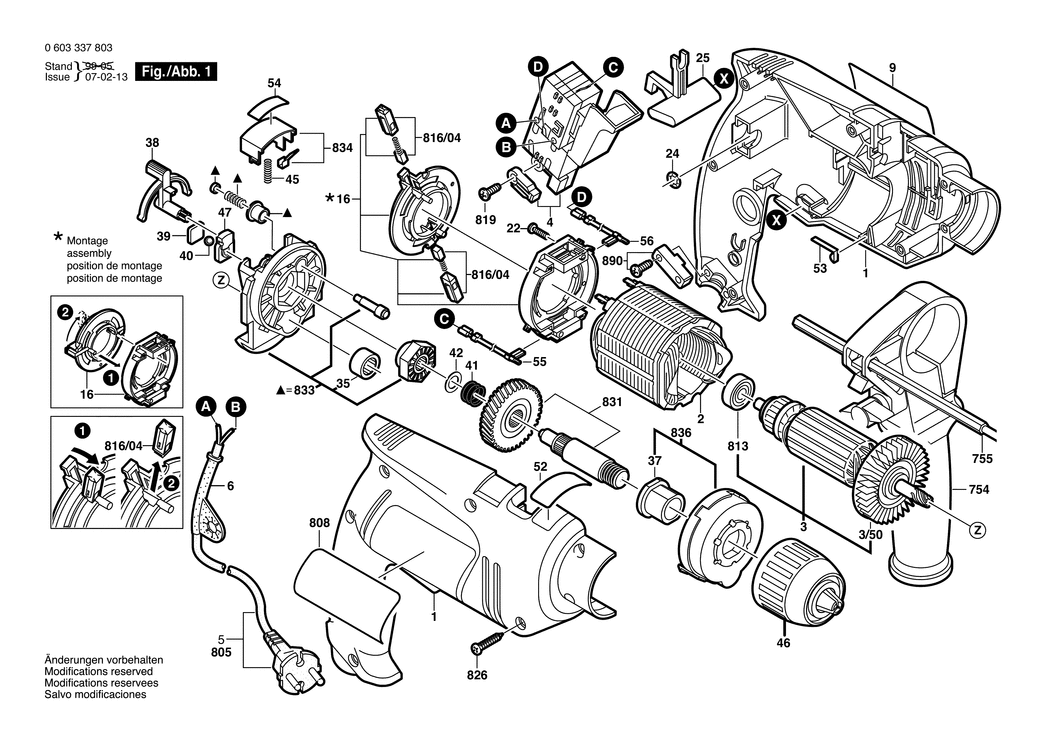

1 - HOUSING SECTION
BSD-2605104599.A4
2605104599
|
-
|
|
|
|
2 - FIELD 220-240V
BSD-2604220601.A3
2604220601
|
-
|
|
|
|
3 - ARMATURE 230-240V
BSD-2604011173.A4
2604011173
|
-
|
|
|
|
3/50 - FAN
BSD-1606610116.A202
1606610116
|
£2.52
|
£3.02
|
|
|
4 - ON-OFF SWITCH
BSD-2607200503.A6
2607200503
|
-
|
|
|
|
5 - POWER SUPPLY CORD GB 230V 2.65m 2 x 1.0mm H05 VV-F
BSD-2604460147.A108
2604460147
|
£16.41
|
£19.69
|
|
|
6 - GROMMET dia6.2-dia6.9x90 MM
BSD-2600707066.A189
2600707066
|
£2.48
|
£2.97
|
|
|
9 - MANUFACTURER'S NAMEPLATE
BSD-2601119550.A4
2601119550
|
-
|
|
|
|
16 - BRUSH PLATE
BSD-2604337059.A44
2604337059
|
£11.30
|
£13.56
|
|
|
22 - TAPPING SCREW DIN 7981-ST2.2x9.5-C-H
BSD-2910611002.A42
2910611002
|
£1.75
|
£2.10
|
|
|
24 - O-RING 5.0x1.5 MM
BSD-1900210000.A374
1900210000
|
£1.75
|
£2.10
|
|
|
25 - CHANGE-OVER SWITCH
BSD-2602098008.A19
2602098008
|
£1.75
|
£2.10
|
|
|
35 - NEEDLE BEARING
BSD-2600914019.A132
2600914019
|
£5.30
|
£6.36
|
|
|
37 - POROUS BEARING
BSD-2600301052.A59
2600301052
|
-
|
|
|
|
38 - INDEXING DISK
BSD-2601990010.A74
2601990010
|
-
|
|
|
|
39 - PRESSURE PLATE
BSD-2601074004.A16
2601074004
|
£1.75
|
£2.10
|
|
|
40 - BALL DIN 5401-5 G28
BSD-1903230009.A727
1903230009
|
£1.75
|
£2.10
|
|
|
41 - COMPRESSION SPRING
BSD-2604616006.A313
2604616006
|
£1.75
|
£2.10
|
|
|
42 - SHIM 0.3 MM
BSD-2600101047.A232
2600101047
|
£1.75
|
£2.10
|
|
|
45 - COMPRESSION SPRING
BSD-2604610047.A3
2604610047
|
£1.75
|
£2.10
|
|
|
46 - KEYLESS CHUCK
BSD-2608572173.A33
2608572173
|
-
|
|
|
|
47 - FRAME
BSD-2608040120.A151
2608040120
|
£2.61
|
£3.13
|
|
|
52 - REFERENCE PLATE
BSD-2601119419.A29
2601119419
|
£3.72
|
£4.47
|
|
|
53 - CONTACT STRAP
BSD-2601329043.A123
2601329043
|
£1.32
|
£1.58
|
|
|
54 - REFERENCE PLATE
BSD-2601119602.A57
2601119602
|
£3.72
|
£4.47
|
|
|
55 - PVC-INSULATED CABLE L=95 MM
BSD-1614431025.A125
1614431025
|
£2.61
|
£3.13
|
|
|
56 - PVC-INSULATED CABLE L=120 MM
BSD-2604448228.A27
2604448228
|
£2.16
|
£2.59
|
|
|
754 - AUXILIARY HANDLE 1/2
BSD-2602025102.A86
2602025102
|
£10.86
|
£13.03
|
|
|
755 - DEPTH-GAUGE SW 6x210 MM
BSD-1613001005.A167
1613001005
|
-
|
|
|
|
808 - NAMEPLATE
BSD-2601119987.A0
2601119987
|
-
|
|
|
|
813 - BALL BEARING 7x19x6
BSD-2600905032.A1841
2600905032
|
£5.30
|
£6.36
|
|
|
816/04 - BRUSH HOLDER
BSD-1607000CJ1.A85
1607000CJ1
|
-
|
|
|
|
819 - TAPPING SCREW DIN 7981-ST2.9x13-C-H
BSD-2910611006.A376
2910611006
|
£1.75
|
£2.10
|
|
|
826 - TAPPING SCREW DIN 7981-ST3.9x19-C-H
BSD-2910611020.A155
2910611020
|
£1.75
|
£2.10
|
|
|
831 - DRILLING SPINDLE 1/2
BSD-2606135929.A4
2606135929
|
-
|
|
|
|
833 - BEARING BRACKET
BSD-2605807932.A6
2605807932
|
-
|
|
|
|
834 - PUSH-BUTTON
BSD-2603231040.A58
2603231040
|
-
|
|
|
|
836 - GEAR COVER
BSD-2605808922.A115
2605808922
|
£10.82
|
£12.99
|
|
|
890 - FASTENING PARTS KIT
BSD-2607001305.A192
2607001305
|
£4.26
|
£5.11
|
|
