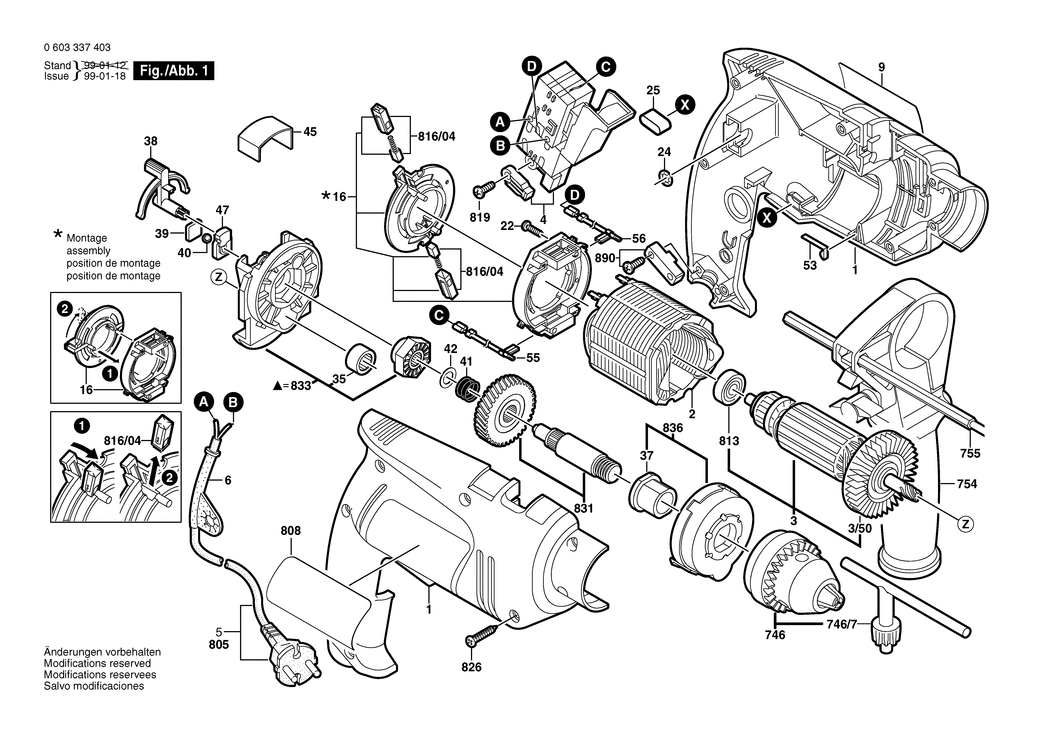

1 - HOUSING SECTION
BSD-2605104599.A23
2605104599
|
-
|
|
|
|
2 - FIELD 220-240V
BSD-2604220601.A16
2604220601
|
-
|
|
|
|
3 - ARMATURE 230-240V
BSD-2604011173.A8
2604011173
|
-
|
|
|
|
3/50 - FAN
BSD-1606610116.A58
1606610116
|
£2.52
|
£3.02
|
|
|
4 - SWITCH
BSD-2607200509.A6
2607200509
|
-
|
|
|
|
5 - POWER SUPPLY CORD CH 230V 4.15m 2 x 1.0mm H05 RN-F
BSD-1604460432.A131
1604460432
|
£11.30
|
£13.56
|
|
|
6 - GROMMET dia6.2-dia6.9x90 MM
BSD-2600707066.A118
2600707066
|
£2.48
|
£2.97
|
|
|
9 - MANUFACTURER'S NAMEPLATE
BSD-2601119973.A1
2601119973
|
-
|
|
|
|
16 - BRUSH PLATE
BSD-2604337059.A14
2604337059
|
£11.30
|
£13.56
|
|
|
22 - TAPPING SCREW DIN 7981-ST2.2x9.5-C-H
BSD-2910611002.A200
2910611002
|
£1.75
|
£2.10
|
|
|
24 - O-RING 5.0x1.5 MM
BSD-1900210000.A417
1900210000
|
£1.75
|
£2.10
|
|
|
25 - PLUG
BSD-2601099077.A6
2601099077
|
-
|
|
|
|
35 - NEEDLE BEARING
BSD-2600914019.A2
2600914019
|
£5.30
|
£6.36
|
|
|
37 - POROUS BEARING
BSD-2600301052.A33
2600301052
|
-
|
|
|
|
38 - INDEXING DISK
BSD-2601990010.A17
2601990010
|
-
|
|
|
|
39 - PRESSURE PLATE
BSD-2601074004.A92
2601074004
|
£1.75
|
£2.10
|
|
|
40 - BALL DIN 5401-5 G28
BSD-1903230009.A237
1903230009
|
£1.75
|
£2.10
|
|
|
41 - COMPRESSION SPRING
BSD-2604616006.A40
2604616006
|
£1.75
|
£2.10
|
|
|
42 - SHIM 0.3 MM
BSD-2600101047.A326
2600101047
|
£1.75
|
£2.10
|
|
|
45 - LOCKING PIECE
BSD-2605510170.A0
2605510170
|
-
|
|
|
|
47 - FRAME
BSD-2608040120.A21
2608040120
|
£2.61
|
£3.13
|
|
|
53 - CONTACT STRAP
BSD-2601329043.A5
2601329043
|
£1.32
|
£1.58
|
|
|
55 - PVC-INSULATED CABLE L=95 MM
BSD-1614431025.A101
1614431025
|
£2.61
|
£3.13
|
|
|
56 - PVC-INSULATED CABLE L=120 MM
BSD-2604448228.A71
2604448228
|
£2.16
|
£2.59
|
|
|
746 - KEY CHUCK 1/2
BSD-2608571056.A9
2608571056
|
£17.49
|
£20.99
|
|
|
746/7 - CHUCK WRENCH SG2
BSD-2607950007.A1575
2607950007
|
£6.52
|
£7.83
|
|
|
754 - AUXILIARY HANDLE 1/2
BSD-2602025102.A8
2602025102
|
£10.86
|
£13.03
|
|
|
755 - DEPTH-GAUGE
BSD-2603001019.A145
2603001019
|
£2.63
|
£3.16
|
|
|
808 - NAMEPLATE
BSD-2601119983.A0
2601119983
|
-
|
|
|
|
813 - BALL BEARING 7x19x6
BSD-2600905032.A92
2600905032
|
£5.30
|
£6.36
|
|
|
816/04 - CARBON-BRUSH SET
BSD-2607014013.A11
2607014013
|
£10.10
|
£12.12
|
|
|
819 - TAPPING SCREW DIN 7981-ST2.9x13-C-H
BSD-2910611006.A73
2910611006
|
£1.75
|
£2.10
|
|
|
826 - TAPPING SCREW DIN 7981-ST3.9x19-C-H
BSD-2910611020.A359
2910611020
|
£1.75
|
£2.10
|
|
|
831 - DRILLING SPINDLE 1/2
BSD-2606135929.A118
2606135929
|
-
|
|
|
|
833 - BEARING BRACKET
BSD-2605807933.A8
2605807933
|
-
|
|
|
|
836 - GEAR COVER
BSD-2605808922.A36
2605808922
|
£10.82
|
£12.99
|
|
|
890 - FASTENING PARTS KIT
BSD-2607001305.A84
2607001305
|
£4.26
|
£5.11
|
|
