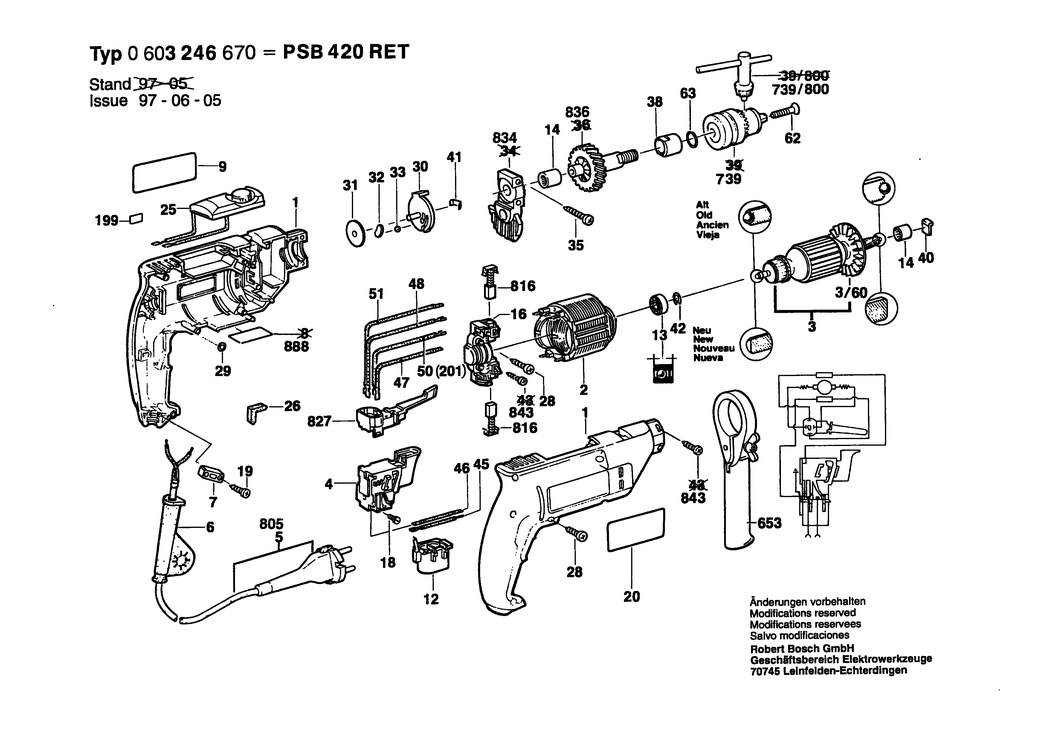

1 - HOUSING SECTION
BSD-2605104320.A1
2605104320
|
-
|
|
|
|
2 - FIELD 230V
BSD-2604220392.A5
2604220392
|
£23.86
|
£28.63
|
|
|
3 - ARMATURE 220-240V
BSD-2604010707.A38
2604010707
|
-
|
|
|
|
3/60 - FAN
BSD-1606610116.A11
1606610116
|
£2.52
|
£3.02
|
|
|
4 - PARTS SET
BSD-2607002138.A6
2607002138
|
-
|
|
|
|
5 - POWER SUPPLY CORD I/BR 2.65m 2 x 1.0mm H05 VV-F
BSD-2604460283.A92
2604460283
|
£12.04
|
£14.45
|
|
|
5 - POWER SUPPLY CORD GB 230V 2.65m 2 x 1.0mm H05 VV-F
BSD-2604460147.A64
2604460147
|
£16.41
|
£19.69
|
|
|
6 - GROMMET dia6.5-dia6.9x95 MM
BSD-2600703012.A990
2600703012
|
£2.80
|
£3.36
|
|
|
7 - CABLE CLIP
BSD-2601035001.A488
2601035001
|
£1.75
|
£2.10
|
|
|
9 - STICKER
BSD-2601110917.A1
2601110917
|
-
|
|
|
|
12 - SUPPRESSION FILTER
BSD-2607329114.A214
2607329114
|
-
|
|
|
|
13 - GROOVE BALL BEARING 8x19x6
BSD-2600905046.A22
2600905046
|
£11.30
|
£13.56
|
|
|
13 - BALL BEARING 7x19x6
BSD-2600905032.A128
2600905032
|
£5.30
|
£6.36
|
|
|
14 - NEEDLE-ROLLER BEARING dia8x8 MM
BSD-2600917003.A567
2600917003
|
£2.80
|
£3.36
|
|
|
16 - BRUSH PLATE
BSD-2609992606.A33
2609992606
|
-
|
|
|
|
18 - SOCKET HEAD CAP SCREW M3x6.5-4.8
BSD-2603410001.A432
2603410001
|
£1.75
|
£2.10
|
|
|
19 - SCREW 4x16
BSD-2603490022.A1375
2603490022
|
£1.75
|
£2.10
|
|
|
20 - STICKER
BSD-2601110920.A6
2601110920
|
-
|
|
|
|
25 - TORQUE CONTROL
BSD-2607233004.A0
2607233004
|
-
|
|
|
|
26 - DAMPING PLATE
BSD-2601022000.A484
2601022000
|
£1.75
|
£2.10
|
|
|
28 - TAPPING SCREW DIN7981-ST3.9x19-F-Z
BSD-2912401420.A24
2912401420
|
£1.75
|
£2.10
|
|
|
29 - O-RING 5.0x1.5 MM
BSD-1900210000.A492
1900210000
|
£1.75
|
£2.10
|
|
|
30 - INDEXING DISK
BSD-2601990000.A24
2601990000
|
£1.75
|
£2.10
|
|
|
31 - SUPPORTING DISC
BSD-2600100034.A37
2600100034
|
£1.75
|
£2.10
|
|
|
32 - PRESSURE PLATE
BSD-2600025005.A7
2600025005
|
£1.75
|
£2.10
|
|
|
33 - BALL DIN 5401-6 G28
BSD-1903230011.A198
1903230011
|
£2.61
|
£3.13
|
|
|
35 - OVAL-HEAD SCREW DIN 7985-M4x25-8.8
BSD-2910951132.A9
2910951132
|
-
|
|
|
|
38 - SINTERED-METAL BUSHING
BSD-2600301013.A6
2600301013
|
-
|
|
|
|
40 - PRESSURE PLATE
BSD-2601330005.A23
2601330005
|
-
|
|
|
|
41 - DISC SPRING
BSD-2601290014.A61
2601290014
|
£1.75
|
£2.10
|
|
|
42 - SPACER RING
BSD-2600209004.A4
2600209004
|
-
|
|
|
|
45 - EARTH CONDUCTOR
BSD-2604448103.A138
2604448103
|
-
|
|
|
|
46 - CABLE L=173 MM
BSD-2604448060.A29
2604448060
|
-
|
|
|
|
47 - CABLE L=98 MM
BSD-2604448045.A94
2604448045
|
-
|
|
|
|
48 - CONNECTING CABLE L=88 MM
BSD-2604448034.A202
2604448034
|
£1.75
|
£2.10
|
|
|
50 - CONNECTING CABLE L=73 MM
BSD-2604448115.A94
2604448115
|
£1.75
|
£2.10
|
|
|
51 - CONNECTING CABLE L=103 MM
BSD-2604448132.A162
2604448132
|
£1.75
|
£2.10
|
|
|
62 - COUNTERSUNK-HEAD SCREW M 6x34 MM
BSD-2603421213.A47
2603421213
|
£2.61
|
£3.13
|
|
|
63 - RETAINING RING
BSD-2604601004.A574
2604601004
|
£1.75
|
£2.10
|
|
|
653 - AUXILIARY HANDLE
BSD-2602025057.A11
2602025057
|
-
|
|
|
|
739 - KEYLESS CHUCK dia 1-10 MM. 1/2
BSD-2608572030.A0
2608572030
|
-
|
|
|
|
816 - CARBON-BRUSH SET
BSD-2604321905.A670
2604321905
|
£11.30
|
£13.56
|
|
|
816/020 - RATCHET CAP
BSD-2601322013.A38
2601322013
|
£1.75
|
£2.10
|
|
|
827 - CHANGE-OVER SWITCH
BSD-2607200231.A256
2607200231
|
£16.41
|
£19.69
|
|
|
834 - BEARING BRACKET
BSD-2605807917.A19
2605807917
|
-
|
|
|
|
836 - DRILLING SPINDLE Z= 45
BSD-2606135910.A13
2606135910
|
-
|
|
|
|
843 - TAPPING SCREW DIN 7981-ST2.9x13-C-H
BSD-2910611006.A118
2910611006
|
£1.75
|
£2.10
|
|
|
888 - NAMEPLATE
BSD-160111A3H3.A1380
160111A3H3
|
£2.61
|
£3.13
|
|
