Bosch PSB 1000-2 RCA / 3603A72800 / EU 230 Volt Spare Parts

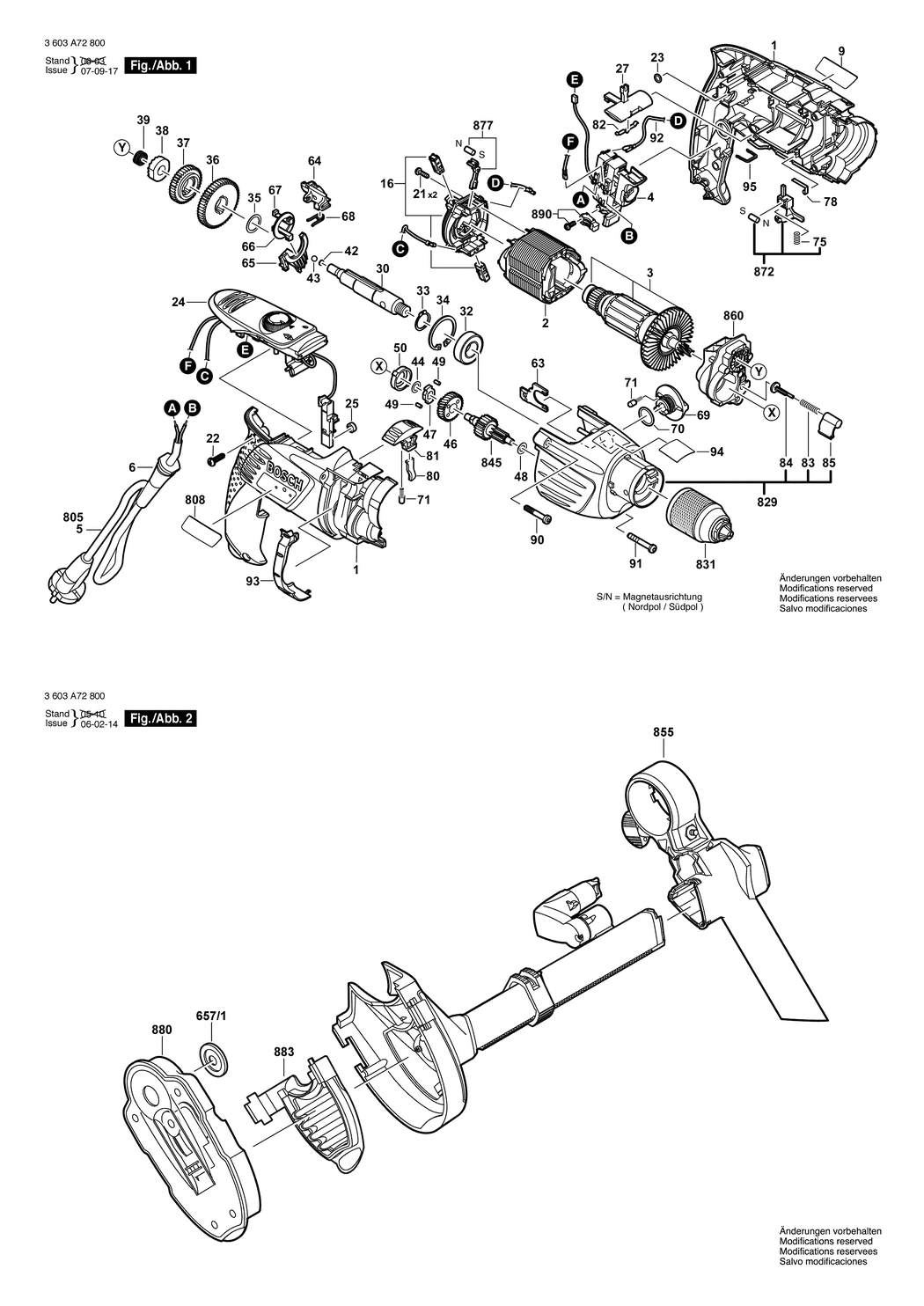

An exploded drawing and listing for the Bosch PSB 1000-2 RCA / 3603A72800 / EU 230 Volt

	Ex VAT	Inc VAT
1 - HOUSING SECTION BSD-2605105081.A2 2605105081	£19.45	£23.34
2 - FIELD 230V BSD-2604220710.A10 2604220710	£21.68	£26.01
3 - ARMATURE 230V BSD-2604011339.A0 2604011339	£48.38	£58.06
4 - SWITCH BSD-2607200627.A0 2607200627	£21.42	£25.71
5 - POWER SUPPLY CORD EU 4.15m 2 x 1.00mm H05 VV-F BSD-2604460306.A2 2604460306	£13.12	£15.75
6 - GROMMET BSD-2609002019.A119 2609002019	£2.61	£3.13
9 - MANUFACTURER'S NAMEPLATE PSB 1000-2 RCA BSD-2601116999.A0 2601116999	£3.72	£4.47
16 - BRUSH PLATE BSD-2604337061.A55 2604337061	£14.91	£17.89
21 - TAPPING SCREW DIN 7981-ST2.2x9.5-C-H BSD-2910611002.A258 2910611002	£1.75	£2.10
22 - SCREW 4x16 BSD-2603490022.A844 2603490022	£1.75	£2.10
23 - O-RING 5.0x1.5 MM BSD-1900210000.A391 1900210000	£1.75	£2.10
24 - SPEED GOVERNOR 230-240V BSD-2607230108.A0 2607230108	£41.62	£49.95
25 - RETAINING ELEMENT BSD-2609001536.A2 2609001536	£1.75	£2.10
27 - REVERSING SWITCH BSD-2609001247.A6 2609001247	-
30 - DRILLING SPINDLE BSD-2606135130.A33 2606135130	£21.68	£26.01
32 - GROOVE BALL BEARING 17x35x10 BSD-1900905163.A502 1900905163	£11.30	£13.56
33 - SPRING RETAINING RING DIN 471 17x1 MM BSD-2916650008.A428 2916650008	£1.75	£2.10
34 - SPRING RETAINING RING DIN 472 35x1.5 MM BSD-2916660014.A290 2916660014	£1.75	£2.10
35 - SHIM 0.5 MM BSD-2600100695.A232 2600100695	£1.75	£2.10
36 - CYLINDRICAL GEAR BSD-2606317084.A21 2606317084	£13.12	£15.75
37 - CYLINDRICAL GEAR BSD-2606317098.A97 2606317098	£12.04	£14.45
38 - CATCH DISK BSD-2600190105.A2 2600190105	£2.61	£3.13
39 - COMPRESSION SPRING BSD-2604616013.A85 2604616013	£2.61	£3.13
42 - SHIM WASHER 1.0 MM BSD-2600000021.A2 2600000021	£1.75	£2.10
42 - SHIM WASHER 1.35 MM BSD-2600000030.A130 2600000030	£1.75	£2.10
42 - SHIM WASHER 1.7 MM BSD-2600000031.A4 2600000031	£1.75	£2.10
43 - BALL DIN 5401-5 G28 BSD-1903230009.A358 1903230009	£1.75	£2.10
43 - BALL DIN 5401-5.5MM-III-ST BSD-1903230010.A459 1903230010	£1.75	£2.10
43 - BALL 5.25 MM BSD-2603230007.A6 2603230007	£1.75	£2.10
44 - SHIM 0.2 MM BSD-1600100632.A92 1600100632	£1.75	£2.10
46 - CARRIER BSD-160312304U.A4 160312304U	£13.12	£15.75
47 - ECCENTRIC BSD-2602210043.A29 2602210043	£2.80	£3.36
48 - SHIM 0.3 MM BSD-2600100607.A802 2600100607	£1.75	£2.10
49 - ROLLER BODY BSD-2609007376.A8 2609007376	£1.75	£2.10
50 - RETAINING SNAP RING BSD-2600202008.A29 2600202008	£4.26	£5.11
63 - HOLDING PLATE BSD-2601328003.A2 2601328003	£1.32	£1.58
64 - LINK GUIDE BSD-2602033017.A6 2602033017	£1.75	£2.10
65 - FORK LEVER BSD-2601990045.A2 2601990045	£1.75	£2.10
66 - RETAINING WASHER BSD-2600101671.A301 2600101671	£1.75	£2.10
67 - FLAT KEY BSD-2602300032.A98 2602300032	£3.72	£4.47
68 - COMPRESSION SPRING BSD-2604616014.A2 2604616014	£1.75	£2.10
69 - ROTARY KNOB BSD-2602026137.A2 2602026137	£3.34	£4.01
70 - O-RING 15.6x1.8 MM BSD-3600210003.A115 3600210003	£1.75	£2.10
71 - RATCHET CAP BSD-2600590006.A998 2600590006	£1.75	£2.10
75 - EXTENSION SPRING BSD-2604690042.A0 2604690042	£1.32	£1.58
78 - CONTACT STRAP BSD-2601329043.A39 2601329043	£1.32	£1.58
80 - GUIDING PLATE BSD-2601990044.A6 2601990044	£1.75	£2.10
81 - CHANGEOVER LEVER BSD-2602098021.A2 2602098021	£1.75	£2.10
82 - LEAF SPRING BSD-2601290030.A6 2601290030	£1.75	£2.10
83 - COMPRESSION SPRING BSD-2604610056.A3 2604610056	£1.75	£2.10
84 - BOLT BSD-2603105115.A4 2603105115	£1.75	£2.10
85 - SEALING CAP BSD-2605510222.A3 2605510222	£1.75	£2.10
90 - HEADLESS SCREW BSD-2603435087.A1 2603435087	£1.75	£2.10
91 - THREAD-FORMING TAP. SCREW BSD-2603435088.A7 2603435088	-
92 - PVC-INSULATED CABLE L=120 MM BSD-2604448228.A107 2604448228	£2.16	£2.59
93 - AIR PATH BSD-2601328077.A6 2601328077	£1.75	£2.10
94 - REFERENCE PLATE BSD-2601116906.A1 2601116906	-
95 - PICKUP CLIP BSD-2601250010.A1 2601250010	£1.32	£1.58
657/1 - FRICTION RING BSD-2600206003.A23 2600206003	£2.52	£3.02
808 - NAMEPLATE BSD-2601115037.A0 2601115037	£3.72	£4.47
829 - GEAR HOUSING BSD-2605806887.A0 2605806887	£33.74	£40.49
831 - KEYLESS CHUCK HSB 4 BSD-2608572143.A0 2608572143	£63.50	£76.20
845 - TRANSMISSION BSD-2606309940.A19 2606309940	£21.52	£25.83
855 - HANDLE BSD-2602025904.A3 2602025904	-
860 - BEARING BRACKET BSD-2605807940.A1 2605807940	£37.27	£44.72
872 - CONTROL LEVER BSD-2602099900.A0 2602099900	£4.75	£5.70
877 - ROCKER BSD-2602123902.A2 2602123902	£5.87	£7.04
880 - BOX BSD-2605190921.A3 2605190921	£9.49	£11.39
883 - FILTER BSD-2607030901.A5 2607030901	-
890 - FASTENING PARTS KIT BSD-2607001305.A24 2607001305	£4.26	£5.11
