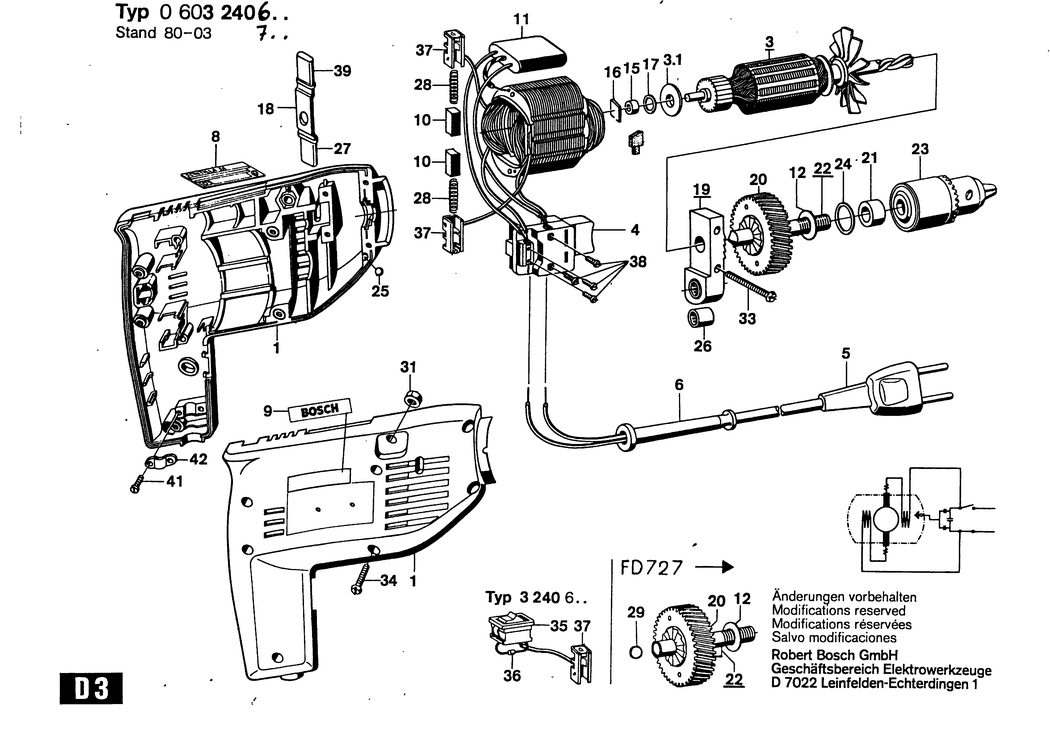

1 - HOUSING SECTION
BSD-2605104933.A5
2605104933
|
-
|
|
|
|
2 - POLE SHOE 220V
BSD-2604220363.A3
2604220363
|
-
|
|
|
|
3 - POLE SHOE 220V
BSD-2604220356.A0
2604220356
|
-
|
|
|
|
3 - ARMATURE 220V
BSD-2604010489.A1
2604010489
|
-
|
|
|
|
4 - ON-OFF SWITCH
BSD-1607200060.A103
1607200060
|
-
|
|
|
|
4 - ON-OFF SWITCH
BSD-1609202464.A19
1609202464
|
£28.68
|
£34.41
|
|
|
5 - POWER SUPPLY CORD EU 2.65m 2 x 1.0mm H05 RN-F
BSD-1607000388.A26
1607000388
|
£12.04
|
£14.45
|
|
|
6 - GROMMET dia6.4-dia7.5x75 MM
BSD-1600703016.A335
1600703016
|
£1.75
|
£2.10
|
|
|
6 - GROMMET dia9.5 MM
BSD-2600703006.A280
2600703006
|
-
|
|
|
|
8 - NAMEPLATE
BSD-2601105051.A54
2601105051
|
-
|
|
|
|
9 - MANUFACTURER'S NAMEPLATE
BSD-1601110013.A33
1601110013
|
-
|
|
|
|
11 - SUPPRESSION CAPACITOR
BSD-2607329089.A2
2607329089
|
-
|
|
|
|
12 - SHIM 0.5 MM
BSD-2600101616.A309
2600101616
|
-
|
|
|
|
12 - SHIM 0.5 MM
BSD-2600101616.A310
2600101616
|
-
|
|
|
|
12 - SHIM 0.3 MM
BSD-2600101617.A68
2600101617
|
£1.84
|
£2.21
|
|
|
13 - LUBRICATING FELT
BSD-2601020005.A12
2601020005
|
-
|
|
|
|
15 - SINTERED-METAL BUSHING
BSD-1900301004.A2
1900301004
|
£14.08
|
£16.89
|
|
|
16 - PRESSURE PLATE 1.5 MM
BSD-1601000013.A28
1601000013
|
-
|
|
|
|
16 - INTERMEDIATE PLATE 0.3 MM
BSD-2601000018.A103
2601000018
|
-
|
|
|
|
16 - INTERMEDIATE PLATE 0.3 MM
BSD-2601000018.A104
2601000018
|
-
|
|
|
|
17 - O-RING 8.0x2.5 MM
BSD-1610210014.A393
1610210014
|
-
|
|
|
|
18 - ADJUSTING SLIDE
BSD-2601322003.A8
2601322003
|
-
|
|
|
|
19 - BEARING BRACKET
BSD-2605807901.A9
2605807901
|
-
|
|
|
|
20 - CYLINDRICAL GEAR Z=46
BSD-2606320013.A0
2606320013
|
-
|
|
|
|
21 - CYL. ROLLER BEARING
BSD-1900301014.A10
1900301014
|
-
|
|
|
|
22 - DRILLING SPINDLE
BSD-2606135900.A3
2606135900
|
-
|
|
|
|
22 - DRILLING SPINDLE
BSD-2606135902.A9
2606135902
|
-
|
|
|
|
22 - DRILLING SPINDLE
BSD-2603515003.A7
2603515003
|
-
|
|
|
|
22 - DRILLING SPINDLE
BSD-2603524007.A5
2603524007
|
-
|
|
|
|
23 - CHUCK dia 1-10 MM. 3/8
BSD-1608571033.A27
1608571033
|
-
|
|
|
|
23 - CHUCK WRENCH SG2
BSD-2607950007.A1155
2607950007
|
£6.85
|
£8.22
|
|
|
24 - O-RING 15x2.5 MM
BSD-1900210113.A42
1900210113
|
£2.61
|
£3.13
|
|
|
25 - BALL DIN 5401-5 G28
BSD-1903230009.A42
1903230009
|
£1.84
|
£2.21
|
|
|
26 - NEEDLE BEARING dia8xdia12x10 MM
BSD-1610910057.A161
1610910057
|
£2.80
|
£3.36
|
|
|
27 - PROTECTIVE CAP
BSD-2600522002.A8
2600522002
|
-
|
|
|
|
28 - COMPRESSION SPRING
BSD-2604610009.A74
2604610009
|
-
|
|
|
|
29 - BALL DIN 5401-dia7MM-III-ST
BSD-1903230013.A5
1903230013
|
£2.27
|
£2.72
|
|
|
31 - HEX NUT DIN 934-M6-8-A
BSD-2915011007.A720
2915011007
|
-
|
|
|
|
32 - NEEDLE ROLLER A 3x15.8G2DIN5402
BSD-1903201044.A7
1903201044
|
£2.33
|
£2.80
|
|
|
33 - LENS HEAD SCREW 4x32
BSD-2603490026.A32
2603490026
|
£1.84
|
£2.21
|
|
|
34 - TAPPING SCREW DIN 7971-ST3.9x16-F
BSD-2910211019.A2132
2910211019
|
£1.84
|
£2.21
|
|
|
35 - ON-OFF SWITCH
BSD-2607200904.A39
2607200904
|
-
|
|
|
|
36 - SILICON DIODE
BSD-2607320008.A23
2607320008
|
-
|
|
|
|
37 - BRUSH HOLDER
BSD-2604337001.A6
2604337001
|
-
|
|
|
|
38 - SOCKET HEAD CAP SCREW M3x6.5-4.8
BSD-2603410001.A1162
2603410001
|
£1.84
|
£2.21
|
|
|
39 - PROTECTIVE CAP
BSD-2600522003.A4
2600522003
|
-
|
|
|
|
41 - TAPPING SCREW DIN 7971-BZ2.9x6.5
BSD-2910211004.A322
2910211004
|
-
|
|
|
|
42 - FASTENING CLAMP
BSD-1601034026.A60
1601034026
|
-
|
|
|
|
700 - HANDLE M6
BSD-2602025023.A28
2602025023
|
-
|
|
|
|
810 - CARBON BRUSH
BSD-1604321900.A237
1604321900
|
-
|
|
|
|
888 - NAMEPLATE
BSD-160111A3H3.A2611
160111A3H3
|
£2.74
|
£3.29
|
|
