Bosch CSB 850-2 RET / 0603148932 / CH 220 Volt Spare Parts

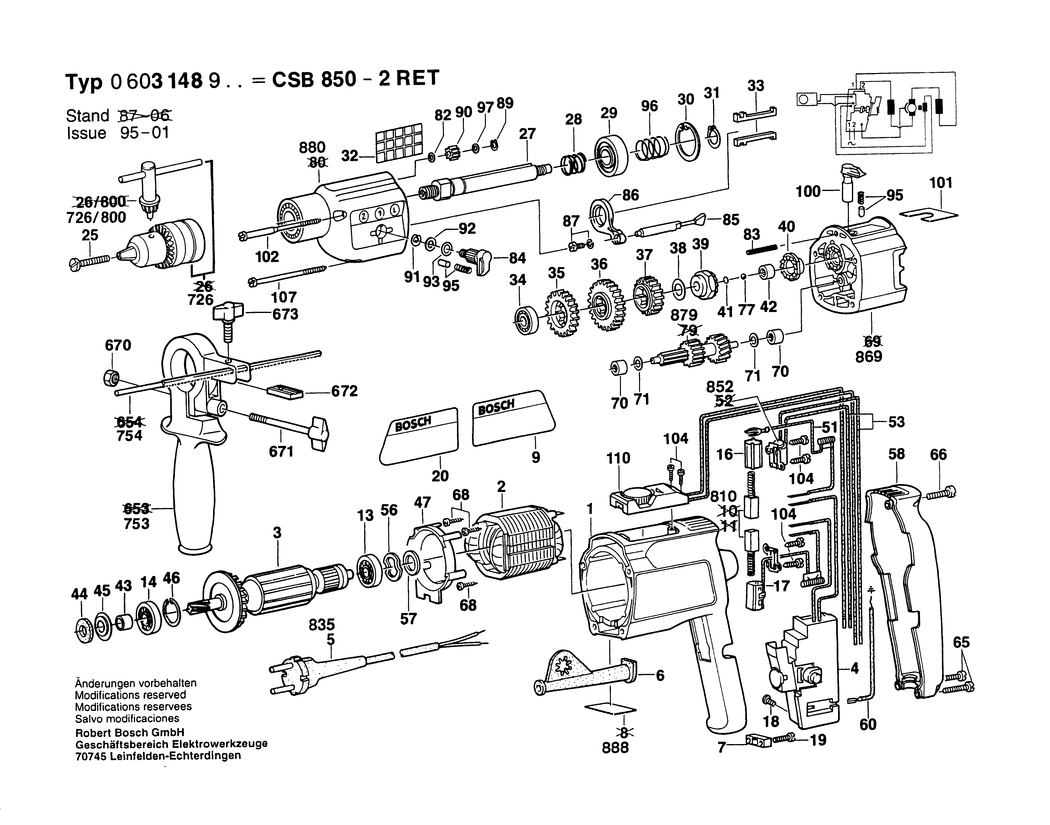

An exploded drawing and listing for the Bosch CSB 850-2 RET / 0603148932 / CH 220 Volt

	Ex VAT	Inc VAT
1 - MOTOR HOUSING BSD-2605104278.A3 2605104278	-
2 - FIELD 220-240V BSD-2604220436.A39 2604220436	-
3 - ARMATURE 230V BSD-2604010601.A5 2604010601	-
4 - ON-OFF SWITCH BSD-2607200155.A6 2607200155	-
5 - POWER SUPPLY CORD CH 2.65m 2 x 1.0mm H05VV-F BSD-2604460125.A10 2604460125	£8.49	£10.19
6 - GROMMET dia6.9 MM BSD-2600707059.A531 2600707059	£3.72	£4.47
7 - CABLE CLIP BSD-2601035001.A1522 2601035001	£1.75	£2.10
9 - STICKER BSD-2601110616.A6 2601110616	-
13 - BALL BEARING 7x22x7 BSD-1900905018.A964 1900905018	£18.96	£22.75
14 - GROOVE BALL BEARING 9x24x7 BSD-2600905021.A754 2600905021	£8.67	£10.41
16 - BRUSH HOLDER BSD-2604330017.A5 2604330017	-
17 - SUPPRESSOR BOX BSD-2604465062.A36 2604465062	-
18 - SOCKET HEAD CAP SCREW M3x6.5-4.8 BSD-2603410001.A1314 2603410001	£1.75	£2.10
19 - TAPPING SCREW DIN 7981-ST3.9x16-C-H BSD-2910611019.A256 2910611019	£2.80	£3.36
20 - STICKER BSD-2601110631.A14 2601110631	-
25 - COUNTERSUNK-HEAD SCREW M6x27 BSD-2603421226.A28 2603421226	£1.75	£2.10
27 - DRILLING SPINDLE 1/2 BSD-2606135026.A35 2606135026	-
28 - COMPRESSION SPRING BSD-2604616002.A52 2604616002	£1.75	£2.10
29 - GROOVE BALL BEARING 17x35x10 BSD-1900905163.A476 1900905163	£11.30	£13.56
30 - SPRING RETAINING RING DIN 472 35x1.5 MM BSD-2916660014.A575 2916660014	£1.75	£2.10
31 - SPRING RETAINING RING DIN 471 17x1 MM BSD-2916650008.A267 2916650008	£1.75	£2.10
32 - STICKER BSD-2601110654.A1 2601110654	-
33 - FLAT KEY BSD-2602300027.A36 2602300027	-
34 - GROOVE BALL BEARING BSD-2600900006.A14 2600900006	-
35 - CYLINDRICAL GEAR Z=43 BSD-2606317038.A4 2606317038	-
36 - CYLINDRICAL GEAR Z=48 BSD-2606317036.A5 2606317036	-
37 - CYLINDRICAL GEAR Z=36 BSD-2606317037.A176 2606317037	-
38 - SHIM 0.5 MM BSD-2600101616.A315 2600101616	-
38 - SHIM 0.3 MM BSD-2600101617.A65 2600101617	£1.75	£2.10
39 - CATCH DISK BSD-2600190052.A178 2600190052	£7.78	£9.33
40 - CATCH DISK BSD-2600190051.A0 2600190051	-
41 - SHIM WASHER 0.2 MM BSD-2600000012.A43 2600000012	£1.75	£2.10
41 - SHIM WASHER 0.5 MM BSD-2600000014.A3 2600000014	£1.75	£2.10
42 - NEEDLE-ROLLER BEARING dia8x8 MM BSD-2600917003.A352 2600917003	£2.80	£3.36
43 - RECEPTACLE BSD-2600400008.A424 2600400008	£1.75	£2.10
44 - FELT WASHER BSD-2600108077.A184 2600108077	£1.75	£2.10
45 - CUPPED WASHER BSD-2600500002.A30 2600500002	£1.75	£2.10
46 - SPRING RETAINING RING DIN 472-24x1.2 MM BSD-2916660008.A939 2916660008	£2.16	£2.59
47 - COVER DISC BSD-2601328032.A14 2601328032	-
48 - GASKET BSD-2601073011.A6 2601073011	-
51 - SUPPRESSOR BOX BSD-2604465091.A24 2604465091	-
53 - CABLE BSD-2604448066.A11 2604448066	-
56 - SHIM BSD-2600150004.A454 2600150004	£2.16	£2.59
57 - SHIM 0.5 MM BSD-2600101020.A238 2600101020	£1.75	£2.10
57 - SHIM 0.2 MM BSD-2600101022.A411 2600101022	£1.75	£2.10
57 - SHIM 0.3 MM BSD-2600101023.A208 2600101023	£1.75	£2.10
58 - HOUSING COVER BSD-2605132045.A17 2605132045	-
60 - EARTH CONDUCTOR dia0.35 MM BSD-2604448010.A9 2604448010	-
65 - TORX OVAL-HEAD SCREW 4x20 BSD-2603490023.A1620 2603490023	£1.75	£2.10
66 - TORX OVAL-HEAD SCREW 4x25 BSD-2603490024.A18 2603490024	£1.75	£2.10
68 - TAPPING SCREW BSD-2603435086.A322 2603435086	£1.75	£2.10
70 - NEEDLE-ROLLER BEARING dia6 MM BSD-2600914010.A567 2600914010	£2.80	£3.36
71 - SHIM 0.3 MM BSD-2600100607.A1086 2600100607	£1.75	£2.10
77 - BALL DIN 5401-5.5MM-III-ST BSD-1903230010.A737 1903230010	£1.75	£2.10
82 - SHIM 0.3 MM BSD-2600101654.A78 2600101654	£2.33	£2.80
83 - SLOTTED SPRING PIN 4x30 MM DIN 7346 BSD-2917780105.A147 2917780105	£1.75	£2.10
84 - ROTARY KNOB BSD-2602026034.A51 2602026034	-
85 - TOOTHED RACK BSD-2603070014.A6 2603070014	-
86 - FORK LEVER BSD-2602033003.A4 2602033003	-
87 - SCREW AND WASHER ASSEMBLY DIN7985-M3x6-Z1-4.8 BSD-2914501011.A99 2914501011	£1.75	£2.10
89 - SPRING RETAINING RING DIN 471-8x0.8 FSt BSD-2916640005.A79 2916640005	£1.75	£2.10
90 - CYLINDRICAL GEAR Z=15 BSD-2606317039.A34 2606317039	-
91 - LOCKING WASHER DIN 6799-7-FSt BSD-2916080910.A411 2916080910	£2.16	£2.59
92 - SHIM 0.5 MM BSD-2600101612.A110 2600101612	£1.75	£2.10
93 - O-RING 12.0x1.0 MM BSD-1600210024.A93 1600210024	-
95 - RATCHET CAP BSD-2600590006.A1360 2600590006	£1.75	£2.10
97 - SHIM BSD-2600150018.A8 2600150018	-
100 - ROTARY KNOB BSD-2602026017.A16 2602026017	£7.36	£8.83
101 - STICKER BSD-2601110076.A24 2601110076	-
102 - TAPPING SCREW 79 MM BSD-2603435012.A96 2603435012	-
104 - TORX OVAL-HEAD SCREW 3x10 BSD-2603490017.A1333 2603490017	£2.16	£2.59
107 - HEADLESS SCREW 74 MM BSD-2603435019.A18 2603435019	-
110 - TORQUE CONTROL BSD-2607233002.A4 2607233002	-
656 - DRILL HOLDER BSD-2607000122.A244 2607000122	-
670 - HEX NUT DIN 934-M6-8-A BSD-2915011007.A771 2915011007	-
671 - WING SCREW M6x20 MM BSD-1613480008.A29 1613480008	£1.75	£2.10
672 - CLAMPING PLATE M6 BSD-2608040014.A306 2608040014	-
673 - WING SCREW M6x(15)55 BSD-1613480007.A381 1613480007	£1.75	£2.10
726 - CHUCK dia1.5-13 MM. 1/2 BSD-1608571069.A169 1608571069	£23.86	£28.63
726/800 - CHUCK WRENCH SG2 BSD-2607950007.A1244 2607950007	£6.52	£7.83
753 - AUXILIARY HANDLE dia43 MM BSD-1619P10682.A371 1619P10682	£12.49	£14.99
754 - DEPTH-GAUGE SW 6x210 MM BSD-1613001005.A50 1613001005	-
810 - CARBON-BRUSH SET BSD-2604321907.A14 2604321907	£14.91	£17.89
821 - SHIM 0.3 MM BSD-2600101654.A77 2600101654	£2.33	£2.80
852 - ROT.-SPEED SENSOR 220-240V BSD-2607233003.A4 2607233003	-
869 - INTERMEDIATE FLANGE BSD-2605700939.A2 2605700939	-
879 - TOOTHED SHAFT Z=10/22/21 BSD-2606309908.A17 2606309908	-
880 - GEAR HOUSING BSD-2605806988.A8 2605806988	-
888 - NAMEPLATE BSD-160111A3H3.A2711 160111A3H3	£2.61	£3.13
