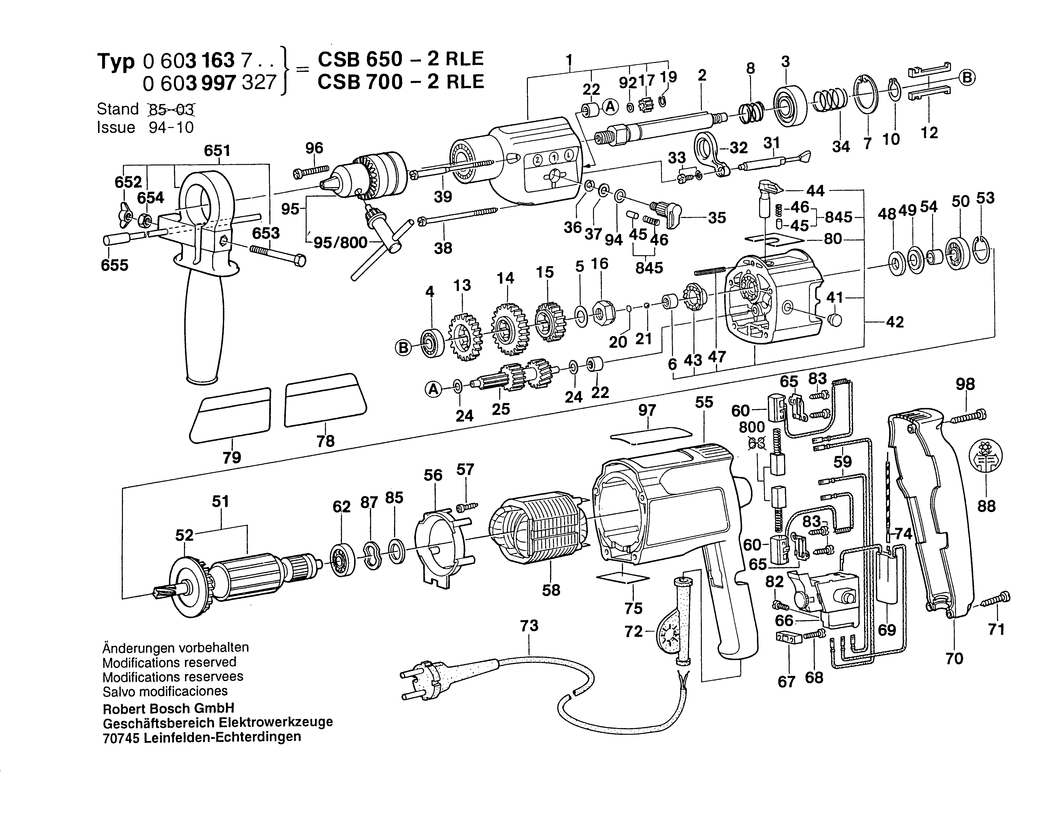

1 - GEAR HOUSING
BSD-2605806971.A4
2605806971
|
-
|
|
|
|
2 - DRILLING SPINDLE 1/2
BSD-2606135026.A6
2606135026
|
-
|
|
|
|
2 - DRILLING SPINDLE 1/2
BSD-2606135010.A13
2606135010
|
-
|
|
|
|
3 - GROOVE BALL BEARING 17x35x10
BSD-1900905163.A116
1900905163
|
£11.30
|
£13.56
|
|
|
4 - GROOVE BALL BEARING
BSD-2600900006.A18
2600900006
|
-
|
|
|
|
5 - SHIM 0.5 MM
BSD-2600101616.A72
2600101616
|
-
|
|
|
|
5 - SHIM 0.2 MM
BSD-1610101600.A7
1610101600
|
-
|
|
|
|
5 - SHIM 0.3 MM
BSD-2600101617.A287
2600101617
|
£1.84
|
£2.21
|
|
|
6 - NEEDLE-ROLLER BEARING dia8x8 MM
BSD-2600917003.A35
2600917003
|
£2.94
|
£3.53
|
|
|
7 - SPRING RETAINING RING DIN 472 35x1.5 MM
BSD-2916660014.A94
2916660014
|
£1.75
|
£2.10
|
|
|
8 - COMPRESSION SPRING
BSD-2604616002.A225
2604616002
|
£1.84
|
£2.21
|
|
|
10 - SPRING RETAINING RING DIN 471 17x1 MM
BSD-2916650008.A18
2916650008
|
£1.84
|
£2.21
|
|
|
12 - FLAT KEY
BSD-2602300027.A0
2602300027
|
-
|
|
|
|
13 - CYLINDRICAL GEAR Z=43
BSD-2606317038.A33
2606317038
|
-
|
|
|
|
14 - CYLINDRICAL GEAR Z=48
BSD-2606317036.A46
2606317036
|
-
|
|
|
|
15 - CYLINDRICAL GEAR Z=36
BSD-2606317037.A17
2606317037
|
-
|
|
|
|
16 - CATCH DISK
BSD-2600190052.A94
2600190052
|
£8.17
|
£9.80
|
|
|
16 - LOCATING WASHER
BSD-2600190031.A22
2600190031
|
-
|
|
|
|
17 - CYLINDRICAL GEAR Z=15
BSD-2606317039.A6
2606317039
|
-
|
|
|
|
19 - SPRING RETAINING RING DIN 471-8x0.8 FSt
BSD-2916640005.A95
2916640005
|
£1.75
|
£2.10
|
|
|
20 - SHIM WASHER 0.2 MM
BSD-2600000012.A137
2600000012
|
£1.75
|
£2.10
|
|
|
20 - SHIM WASHER 0.3 MM
BSD-2600000013.A7
2600000013
|
-
|
|
|
|
20 - SHIM WASHER 0.5 MM
BSD-2600000014.A120
2600000014
|
£1.84
|
£2.21
|
|
|
20 - SHIM WASHER 0.1 MM
BSD-2600000018.A35
2600000018
|
-
|
|
|
|
21 - BALL DIN 5401-5.5MM-III-ST
BSD-1903230010.A395
1903230010
|
£1.84
|
£2.21
|
|
|
22 - NEEDLE-ROLLER BEARING dia6 MM
BSD-2600914010.A349
2600914010
|
£2.94
|
£3.53
|
|
|
24 - SHIM 0.3 MM
BSD-2600100570.A153
2600100570
|
£1.84
|
£2.21
|
|
|
24 - SHIM 0.3 MM
BSD-2600100607.A284
2600100607
|
£1.75
|
£2.10
|
|
|
25 - TOOTHED SHAFT Z=10/22/21
BSD-2606309908.A4
2606309908
|
-
|
|
|
|
31 - TOOTHED RACK
BSD-2603070011.A3
2603070011
|
-
|
|
|
|
32 - FORK LEVER
BSD-2602033003.A19
2602033003
|
-
|
|
|
|
33 - SCREW AND WASHER ASSEMBLY DIN7985-M3x6-Z1-4.8
BSD-2914501011.A42
2914501011
|
£1.75
|
£2.10
|
|
|
34 - COMPRESSION SPRING
BSD-2604615010.A5
2604615010
|
-
|
|
|
|
35 - ROTARY KNOB
BSD-2602026034.A4
2602026034
|
-
|
|
|
|
36 - LOCKING WASHER DIN 6799-7-FSt
BSD-2916080910.A12
2916080910
|
£2.16
|
£2.59
|
|
|
37 - SHIM 0.5 MM
BSD-2600101612.A234
2600101612
|
£1.84
|
£2.21
|
|
|
38 - HEADLESS SCREW 74 MM
BSD-2603435019.A25
2603435019
|
-
|
|
|
|
39 - TAPPING SCREW 79 MM
BSD-2603435012.A58
2603435012
|
-
|
|
|
|
41 - PLUG
BSD-2600591002.A10
2600591002
|
-
|
|
|
|
42 - INTERMEDIATE FLANGE
BSD-2605700931.A6
2605700931
|
-
|
|
|
|
43 - LOCATING WASHER
BSD-2600190029.A15
2600190029
|
-
|
|
|
|
44 - ROTARY KNOB
BSD-2602026033.A20
2602026033
|
-
|
|
|
|
47 - SLOTTED SPRING PIN 4x30 MM DIN 7346
BSD-2917780105.A33
2917780105
|
£1.75
|
£2.10
|
|
|
48 - FELT WASHER
BSD-2600108077.A408
2600108077
|
£1.84
|
£2.21
|
|
|
49 - CUPPED WASHER
BSD-2600500002.A423
2600500002
|
£1.75
|
£2.10
|
|
|
50 - GROOVE BALL BEARING 9x24x7
BSD-2600905021.A120
2600905021
|
£8.67
|
£10.41
|
|
|
51 - ARMATURE 230-240V
BSD-2604010671.A6
2604010671
|
-
|
|
|
|
52 - FAN
BSD-2606610049.A117
2606610049
|
£2.27
|
£2.72
|
|
|
53 - SPRING RETAINING RING DIN 472-24x1.2 MM
BSD-2916660008.A56
2916660008
|
£2.16
|
£2.59
|
|
|
54 - RECEPTACLE
BSD-2600400008.A712
2600400008
|
£1.75
|
£2.10
|
|
|
55 - MOTOR HOUSING
BSD-2605104171.A4
2605104171
|
-
|
|
|
|
56 - COVER DISC
BSD-2601328033.A149
2601328033
|
-
|
|
|
|
57 - TORX OVAL-HEAD SCREW 3x10
BSD-2603490017.A269
2603490017
|
£2.27
|
£2.72
|
|
|
58 - FIELD 220-230V
BSD-2604220491.A60
2604220491
|
£22.76
|
£27.31
|
|
|
59 - CABLE L=130 MM
BSD-2604448005.A3
2604448005
|
£1.84
|
£2.21
|
|
|
60 - SUPPRESSOR BOX
BSD-2604465062.A10
2604465062
|
-
|
|
|
|
62 - BALL BEARING 7x22x7
BSD-1900905018.A399
1900905018
|
£19.91
|
£23.89
|
|
|
65 - BRUSH PLATE
BSD-2601015047.A41
2601015047
|
-
|
|
|
|
66 - ON-OFF SWITCH
BSD-2607200137.A20
2607200137
|
-
|
|
|
|
66 - ON-OFF SWITCH
BSD-2607200173.A15
2607200173
|
-
|
|
|
|
66 - ON-OFF SWITCH
BSD-2607200211.A5
2607200211
|
-
|
|
|
|
67 - CABLE CLIP
BSD-2601035001.A2910
2601035001
|
£1.84
|
£2.21
|
|
|
68 - TAPPING SCREW DIN 7971-ST3.9x16-F
BSD-2910211019.A390
2910211019
|
£1.84
|
£2.21
|
|
|
69 - SUPPRESSION FILTER
BSD-2607329096.A146
2607329096
|
£7.72
|
£9.27
|
|
|
70 - HOUSING COVER
BSD-2605132018.A9
2605132018
|
-
|
|
|
|
71 - TAPPING SCREW DIN 7971-ST3.9x22-F
BSD-2910211021.A170
2910211021
|
£1.75
|
£2.10
|
|
|
72 - GROMMET dia6.9 MM
BSD-2600707059.A61
2600707059
|
£3.91
|
£4.69
|
|
|
72 - GROMMET dia11.6-dia12.5x84 MM
BSD-2600707060.A243
2600707060
|
£2.61
|
£3.13
|
|
|
72 - GROMMET dia8.8 MM
BSD-2600707061.A5
2600707061
|
£2.80
|
£3.36
|
|
|
73 - POWER SUPPLY CORD EU 230V 4.15m 2 x 1.0mm H05 RN-F
BSD-1607000386.A607
1607000386
|
£22.60
|
£27.12
|
|
|
74 - CABLE
BSD-2604448003.A82
2604448003
|
-
|
|
|
|
78 - REFERENCE PLATE
BSD-2601110276.A3
2601110276
|
-
|
|
|
|
79 - REFERENCE PLATE
BSD-2601110629.A1
2601110629
|
-
|
|
|
|
80 - STICKER
BSD-2601110205.A12
2601110205
|
-
|
|
|
|
82 - SOCKET HEAD CAP SCREW M3x6.5-4.8
BSD-2603410001.A2241
2603410001
|
£1.84
|
£2.21
|
|
|
83 - TAPPING SCREW
BSD-2603435086.A186
2603435086
|
£1.84
|
£2.21
|
|
|
85 - SHIM 0.3 MM
BSD-2600101023.A311
2600101023
|
£1.84
|
£2.21
|
|
|
85 - SHIM 0.2 MM
BSD-2600101022.A252
2600101022
|
£1.84
|
£2.21
|
|
|
85 - SHIM 0.5 MM
BSD-2600101020.A380
2600101020
|
£1.84
|
£2.21
|
|
|
87 - SHIM
BSD-2600150004.A582
2600150004
|
£2.27
|
£2.72
|
|
|
88 - STICKER
BSD-2601110230.A123
2601110230
|
-
|
|
|
|
92 - SHIM 0.5 MM
BSD-2600100623.A8
2600100623
|
-
|
|
|
|
94 - O-RING 12.0x1.0 MM
BSD-1600210024.A40
1600210024
|
-
|
|
|
|
95 - CHUCK dia1.5-13 MM. 1/2
BSD-1608571069.A404
1608571069
|
£25.05
|
£30.06
|
|
|
95/800 - CHUCK WRENCH SG2
BSD-2607950007.A866
2607950007
|
£6.85
|
£8.22
|
|
|
96 - COUNTERSUNK-HEAD SCREW M6x27
BSD-2603421226.A99
2603421226
|
£1.84
|
£2.21
|
|
|
97 - STICKER
BSD-2601110117.A36
2601110117
|
-
|
|
|
|
98 - TAPPING SCREW DIN 7971-BZ3.9x25
BSD-2910211022.A96
2910211022
|
£1.84
|
£2.21
|
|
|
651 - AUXILIARY HANDLE
BSD-2602025094.A1
2602025094
|
£7.72
|
£9.27
|
|
|
652 - WING NUT M6 DIN 315-G-GTW-40
BSD-2915191006.A39
2915191006
|
-
|
|
|
|
653 - HEX SCREW DIN 931-M6x75-8.8
BSD-2911011220.A47
2911011220
|
-
|
|
|
|
654 - CONICAL SPRING WASHER
BSD-2601098001.A1
2601098001
|
-
|
|
|
|
655 - DEPTH-GAUGE
BSD-2607010026.A52
2607010026
|
-
|
|
|
|
800 - CARBON-BRUSH SET
BSD-2604321905.A139
2604321905
|
£11.87
|
£14.24
|
|
|
845 - RATCHET CAP
BSD-2600590006.A490
2600590006
|
£1.84
|
£2.21
|
|
|
888 - NAMEPLATE
BSD-160111A3H3.A3610
160111A3H3
|
£2.74
|
£3.29
|
|
