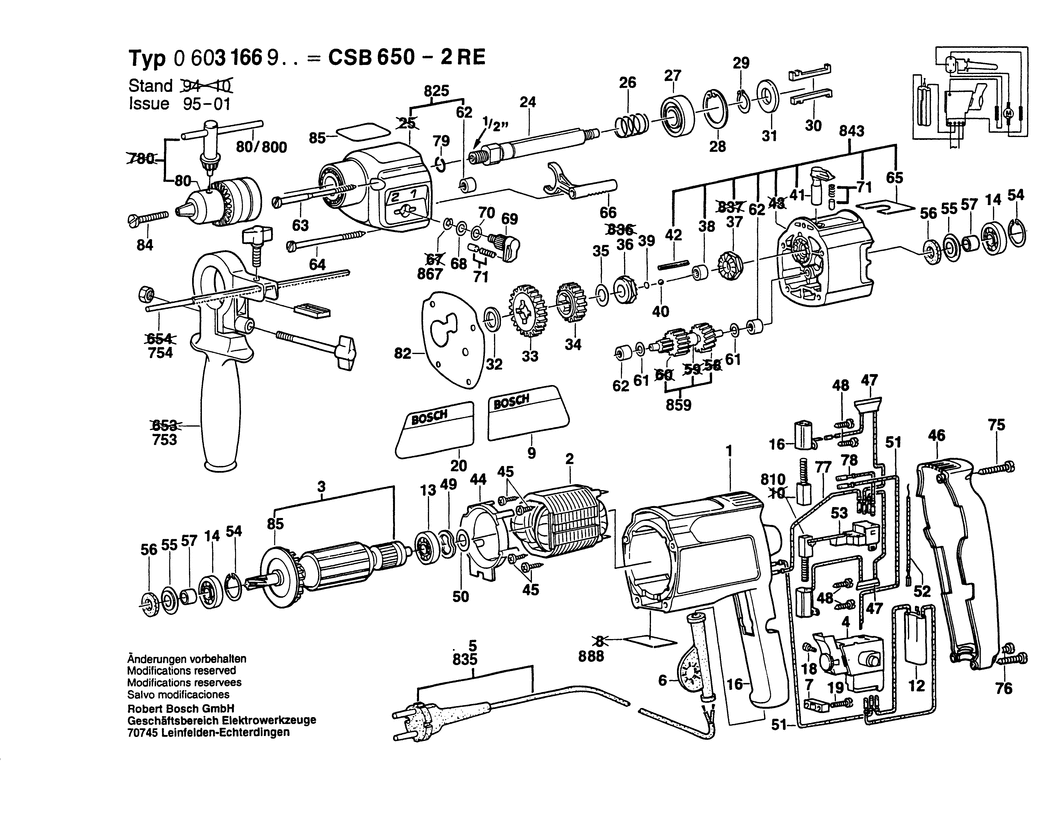

1 - MOTOR HOUSING
BSD-2605104275.A7
2605104275
|
-
|
|
|
|
2 - FIELD 220-240V
BSD-1604220254.A21
1604220254
|
£22.76
|
£27.31
|
|
|
3 - ARMATURE 230-240V
BSD-2604010739.A38
2604010739
|
-
|
|
|
|
4 - ON-OFF SWITCH
BSD-2607200224.A13
2607200224
|
-
|
|
|
|
4 - SWITCH
BSD-2607200190.A8
2607200190
|
£54.42
|
£65.30
|
|
|
6 - GROMMET dia6.9 MM
BSD-2600707059.A443
2600707059
|
£3.91
|
£4.69
|
|
|
6 - GROMMET dia11.6-dia12.5x84 MM
BSD-2600707060.A85
2600707060
|
£2.61
|
£3.13
|
|
|
7 - CABLE CLIP
BSD-2601035001.A631
2601035001
|
£1.84
|
£2.21
|
|
|
9 - STICKER
BSD-2601110598.A2
2601110598
|
-
|
|
|
|
12 - SUPPRESSION FILTER
BSD-2607329096.A12
2607329096
|
£7.72
|
£9.27
|
|
|
13 - BALL BEARING 7x22x7
BSD-1900905018.A685
1900905018
|
£19.91
|
£23.89
|
|
|
14 - GROOVE BALL BEARING 9x24x7
BSD-2600905021.A583
2600905021
|
£8.67
|
£10.41
|
|
|
16 - BRUSH HOLDER
BSD-2604337003.A275
2604337003
|
£2.16
|
£2.59
|
|
|
18 - SOCKET HEAD CAP SCREW M3x6.5-4.8
BSD-2603410001.A609
2603410001
|
£1.84
|
£2.21
|
|
|
19 - SCREW 4x16
BSD-2603490022.A1439
2603490022
|
£1.84
|
£2.21
|
|
|
20 - STICKER
BSD-2601110597.A6
2601110597
|
-
|
|
|
|
24 - DRILLING SPINDLE 1/2.SW 17
BSD-2606135032.A26
2606135032
|
-
|
|
|
|
26 - COMPRESSION SPRING
BSD-2604616002.A97
2604616002
|
£1.84
|
£2.21
|
|
|
27 - GROOVE BALL BEARING 17x35x10
BSD-1900905163.A540
1900905163
|
£11.30
|
£13.56
|
|
|
28 - SPRING RETAINING RING DIN 472 35x1.5 MM
BSD-2916660014.A384
2916660014
|
£1.75
|
£2.10
|
|
|
29 - SPRING RETAINING RING DIN 471 17x1 MM
BSD-2916650008.A407
2916650008
|
£1.84
|
£2.21
|
|
|
30 - FLAT KEY
BSD-2602300028.A25
2602300028
|
-
|
|
|
|
31 - RETAINING WASHER
BSD-2600101671.A266
2600101671
|
£1.84
|
£2.21
|
|
|
32 - SHIM 1.0 MM
BSD-2600101515.A80
2600101515
|
£2.05
|
£2.46
|
|
|
33 - CYLINDRICAL GEAR Z=48
BSD-2606317045.A39
2606317045
|
£14.72
|
£17.67
|
|
|
34 - CYLINDRICAL GEAR Z=36
BSD-2606317037.A166
2606317037
|
-
|
|
|
|
35 - SHIM 0.5 MM
BSD-2600101616.A356
2600101616
|
-
|
|
|
|
35 - SHIM 0.3 MM
BSD-2600101617.A59
2600101617
|
£1.84
|
£2.21
|
|
|
36 - CATCH DISK
BSD-2600190052.A148
2600190052
|
£8.17
|
£9.80
|
|
|
37 - CATCH DISK
BSD-2600190051.A15
2600190051
|
-
|
|
|
|
38 - NEEDLE-ROLLER BEARING dia8x8 MM
BSD-2600917003.A632
2600917003
|
£2.94
|
£3.53
|
|
|
39 - SHIM WASHER 0.2 MM
BSD-2600000012.A33
2600000012
|
£1.75
|
£2.10
|
|
|
39 - SHIM WASHER 0.5 MM
BSD-2600000014.A84
2600000014
|
£1.84
|
£2.21
|
|
|
40 - BALL DIN 5401-5.5MM-III-ST
BSD-1903230010.A544
1903230010
|
£1.84
|
£2.21
|
|
|
41 - ROTARY KNOB
BSD-2602026017.A94
2602026017
|
£7.72
|
£9.27
|
|
|
42 - SLOTTED SPRING PIN 4x30 MM DIN 7346
BSD-2917780105.A120
2917780105
|
£1.75
|
£2.10
|
|
|
44 - COVER DISC
BSD-2601328033.A27
2601328033
|
-
|
|
|
|
45 - TAPPING SCREW
BSD-2603435086.A212
2603435086
|
£1.84
|
£2.21
|
|
|
46 - HOUSING COVER
BSD-2605132018.A6
2605132018
|
-
|
|
|
|
47 - SUPPRESSION FILTER L=148 MM
BSD-2604465086.A93
2604465086
|
£5.58
|
£6.70
|
|
|
48 - TORX OVAL-HEAD SCREW 3x10
BSD-2603490017.A1141
2603490017
|
£2.27
|
£2.72
|
|
|
49 - SHIM
BSD-2600150004.A196
2600150004
|
£2.27
|
£2.72
|
|
|
50 - SHIM WASHER 0.3 MM
BSD-2600101027.A71
2600101027
|
£1.84
|
£2.21
|
|
|
50 - SHIM WASHER 0.5 MM
BSD-2600101667.A156
2600101667
|
£1.84
|
£2.21
|
|
|
51 - CABLE L=130 MM
BSD-2604448005.A330
2604448005
|
£1.84
|
£2.21
|
|
|
52 - CABLE
BSD-2604448003.A164
2604448003
|
-
|
|
|
|
53 - SWITCH
BSD-1617200042.A71
1617200042
|
£17.22
|
£20.67
|
|
|
54 - SPRING RETAINING RING DIN 472-24x1.2 MM
BSD-2916660008.A727
2916660008
|
£2.16
|
£2.59
|
|
|
55 - CUPPED WASHER
BSD-2600500002.A339
2600500002
|
£1.75
|
£2.10
|
|
|
56 - FELT WASHER
BSD-2600108077.A299
2600108077
|
£1.84
|
£2.21
|
|
|
57 - RECEPTACLE
BSD-2600400008.A138
2600400008
|
£1.75
|
£2.10
|
|
|
61 - SHIM 0.3 MM
BSD-2600100607.A739
2600100607
|
£1.75
|
£2.10
|
|
|
62 - NEEDLE-ROLLER BEARING dia6 MM
BSD-2600914010.A778
2600914010
|
£2.94
|
£3.53
|
|
|
63 - TAPPING SCREW 79 MM
BSD-2603435012.A159
2603435012
|
-
|
|
|
|
64 - HEADLESS SCREW 65 MM
BSD-2603435071.A85
2603435071
|
-
|
|
|
|
65 - STICKER
BSD-2601110076.A98
2601110076
|
-
|
|
|
|
66 - ADJUSTING SLIDE
BSD-2602033006.A42
2602033006
|
£2.94
|
£3.53
|
|
|
68 - SHIM WASHER
BSD-2600100618.A305
2600100618
|
£1.84
|
£2.21
|
|
|
69 - ROTARY KNOB
BSD-2602026038.A85
2602026038
|
-
|
|
|
|
70 - PARTS SET
BSD-2607010226.A101
2607010226
|
£2.33
|
£2.80
|
|
|
71 - RATCHET CAP
BSD-2600590006.A875
2600590006
|
£1.84
|
£2.21
|
|
|
75 - TORX OVAL-HEAD SCREW 4x25
BSD-2603490024.A412
2603490024
|
£1.84
|
£2.21
|
|
|
76 - TORX OVAL-HEAD SCREW 4x20
BSD-2603490023.A806
2603490023
|
£1.84
|
£2.21
|
|
|
77 - CONNECTING CABLE L=68 MM
BSD-2604448100.A19
2604448100
|
£1.75
|
£2.10
|
|
|
78 - CONNECTING CABLE L=98 MM
BSD-2604448074.A54
2604448074
|
£2.16
|
£2.59
|
|
|
79 - RETAINING RING
BSD-2604601004.A617
2604601004
|
£1.75
|
£2.10
|
|
|
80 - CHUCK dia1.5-13 MM. 1/2
BSD-1608571069.A11
1608571069
|
£25.05
|
£30.06
|
|
|
80/800 - CHUCK WRENCH SG2
BSD-2607950007.A1500
2607950007
|
£6.85
|
£8.22
|
|
|
81 - STICKER
BSD-2601110117.A27
2601110117
|
-
|
|
|
|
82 - GASKET
BSD-2601073012.A59
2601073012
|
£1.75
|
£2.10
|
|
|
84 - COUNTERSUNK-HEAD SCREW M6x38/12(dia11)
BSD-2603421208.A8
2603421208
|
-
|
|
|
|
85 - FAN
BSD-2606610029.A216
2606610029
|
£2.74
|
£3.29
|
|
|
656 - DRILL HOLDER
BSD-2607000122.A140
2607000122
|
-
|
|
|
|
753 - AUXILIARY HANDLE dia43 MM
BSD-1619P10682.A458
1619P10682
|
£12.49
|
£14.99
|
|
|
754 - DEPTH-GAUGE SW 6x210 MM
BSD-1613001005.A113
1613001005
|
-
|
|
|
|
810 - CARBON-BRUSH SET
BSD-2604321905.A643
2604321905
|
£11.87
|
£14.24
|
|
|
825 - GEAR HOUSING
BSD-2605806987.A3
2605806987
|
-
|
|
|
|
835 - POWER SUPPLY CORD EU 230V 4.15m 2 x 1.0mm H05 RN-F
BSD-1607000386.A181
1607000386
|
£22.60
|
£27.12
|
|
|
843 - INTERMEDIATE FLANGE
BSD-2605700936.A26
2605700936
|
£46.82
|
£56.18
|
|
|
859 - TOOTHED SHAFT Z= 10/22/29
BSD-2606100903.A15
2606100903
|
-
|
|
|
|
867 - LOCKING WASHER DIN 6799-4-FSt
BSD-2916080007.A210
2916080007
|
£2.74
|
£3.29
|
|
|
888 - NAMEPLATE
BSD-160111A3H3.A1495
160111A3H3
|
£2.74
|
£3.29
|
|
