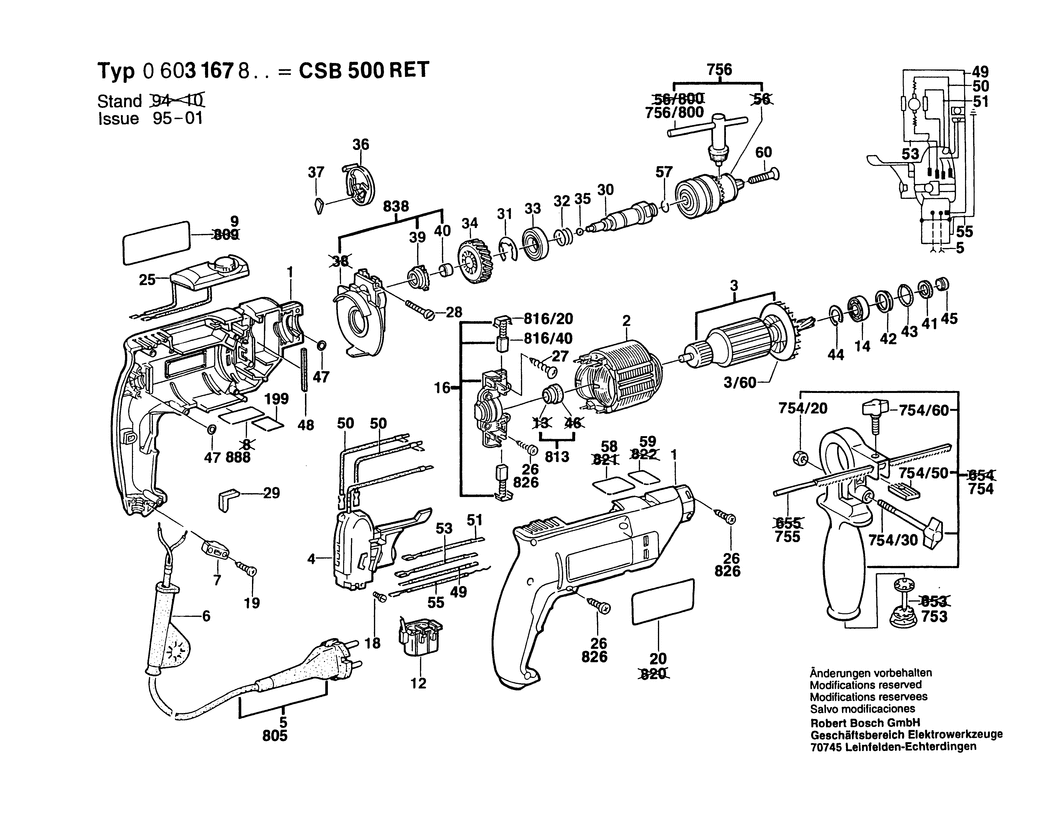

1 - HOUSING SECTION
BSD-2605104298.A11
2605104298
|
-
|
|
|
|
2 - FIELD 220-240V
BSD-2604220562.A18
2604220562
|
-
|
|
|
|
3 - ARMATURE 230-240V
BSD-2604011076.A1
2604011076
|
-
|
|
|
|
3/60 - FAN
BSD-2606610029.A124
2606610029
|
£2.74
|
£3.29
|
|
|
4 - ON-OFF SWITCH
BSD-2607200237.A12
2607200237
|
-
|
|
|
|
6 - GROMMET dia6.9 MM
BSD-2600707059.A537
2600707059
|
£3.91
|
£4.69
|
|
|
7 - CABLE CLIP
BSD-2601035001.A1446
2601035001
|
£1.84
|
£2.21
|
|
|
9 - STICKER
BSD-2601110840.A0
2601110840
|
-
|
|
|
|
9 - STICKER
BSD-2601110958.A32
2601110958
|
-
|
|
|
|
12 - SUPPRESSION FILTER
BSD-2607329114.A46
2607329114
|
-
|
|
|
|
14 - GROOVE BALL BEARING 9x24x7
BSD-2600905039.A108
2600905039
|
£12.64
|
£15.17
|
|
|
16 - BRUSH PLATE
BSD-2605807060.A135
2605807060
|
-
|
|
|
|
18 - SOCKET HEAD CAP SCREW M3x6.5-4.8
BSD-2603410001.A1222
2603410001
|
£1.84
|
£2.21
|
|
|
19 - TAPPING SCREW DIN 7981-ST3.9x16-C-H
BSD-2910611019.A181
2910611019
|
£2.94
|
£3.53
|
|
|
20 - REFERENCE PLATE
BSD-2601118668.A18
2601118668
|
-
|
|
|
|
20 - STICKER
BSD-2601110958.A33
2601110958
|
-
|
|
|
|
25 - TORQUE CONTROL 230-240V
BSD-2607233005.A12
2607233005
|
-
|
|
|
|
27 - TORX OVAL-HEAD SCREW 3x18
BSD-2603490018.A129
2603490018
|
£1.75
|
£2.10
|
|
|
28 - SOCKET HEAD CAP SCREW DIN 84-BM4x30-8.8
BSD-2910021134.A37
2910021134
|
£1.75
|
£2.10
|
|
|
29 - DAMPING PLATE
BSD-2601022000.A667
2601022000
|
£1.75
|
£2.10
|
|
|
30 - DRILLING SPINDLE 1/2.M6
BSD-2606135033.A18
2606135033
|
-
|
|
|
|
31 - LOCKING WASHER 1.2 MM
BSD-2600118007.A36
2600118007
|
-
|
|
|
|
31 - LOCKING WASHER 0.3 MM
BSD-2600118006.A96
2600118006
|
-
|
|
|
|
31 - LOCKING WASHER 0.6 MM
BSD-2600118001.A70
2600118001
|
£1.75
|
£2.10
|
|
|
32 - COMPRESSION SPRING
BSD-2604617000.A217
2604617000
|
£2.61
|
£3.13
|
|
|
33 - GROOVE BALL BEARING 15x32x9
BSD-1900905122.A44
1900905122
|
£10.61
|
£12.73
|
|
|
34 - CYLINDRICAL GEAR Z=37
BSD-2606320051.A17
2606320051
|
-
|
|
|
|
35 - BALL DIN 5401-5.5MM-III-ST
BSD-1903230010.A685
1903230010
|
£1.84
|
£2.21
|
|
|
36 - INDEXING DISK
BSD-2601990001.A6
2601990001
|
£1.38
|
£1.66
|
|
|
37 - PRESSURE PLATE
BSD-2601074003.A12
2601074003
|
£1.75
|
£2.10
|
|
|
39 - SCREEN DISC
BSD-2606490056.A41
2606490056
|
-
|
|
|
|
40 - NEEDLE-ROLLER BEARING dia8x8 MM
BSD-2600917003.A361
2600917003
|
£2.94
|
£3.53
|
|
|
41 - FELT DISC
BSD-2600108000.A271
2600108000
|
-
|
|
|
|
42 - CUPPED WASHER
BSD-2600500014.A111
2600500014
|
-
|
|
|
|
43 - O-RING 18x3 MM
BSD-1900210117.A6
1900210117
|
£3.91
|
£4.69
|
|
|
44 - SPRING RETAINING RING DIN 472-24x1.2 MM
BSD-2916660008.A999
2916660008
|
£2.16
|
£2.59
|
|
|
45 - RECEPTACLE
BSD-2600400008.A376
2600400008
|
£1.75
|
£2.10
|
|
|
47 - O-RING 5.0x1.75 MM
BSD-2600210036.A114
2600210036
|
-
|
|
|
|
48 - FELT STRIP
BSD-2601005011.A50
2601005011
|
-
|
|
|
|
49 - CONNECTING CABLE L=184 MM
BSD-2604448001.A105
2604448001
|
£2.05
|
£2.46
|
|
|
50 - CONNECTING CABLE L=85 MM
BSD-2604448147.A36
2604448147
|
£1.84
|
£2.21
|
|
|
51 - CONNECTING CABLE L=115MM
BSD-2604448096.A56
2604448096
|
-
|
|
|
|
53 - CONNECTING CABLE L=88 MM
BSD-2604448034.A305
2604448034
|
£1.75
|
£2.10
|
|
|
55 - EARTH CONDUCTOR
BSD-2604448170.A11
2604448170
|
-
|
|
|
|
57 - RETAINING RING
BSD-2604601004.A465
2604601004
|
£1.75
|
£2.10
|
|
|
58 - STICKER
BSD-2601110842.A3
2601110842
|
£1.84
|
£2.21
|
|
|
59 - STICKER
BSD-2601110580.A60
2601110580
|
-
|
|
|
|
60 - COUNTERSUNK-HEAD SCREW M6x38/12(dia11)
BSD-2603421208.A12
2603421208
|
-
|
|
|
|
753 - DRILL HOLDER
BSD-2607000122.A216
2607000122
|
-
|
|
|
|
754 - AUXILIARY HANDLE dia43 MM
BSD-1619P10682.A329
1619P10682
|
£12.49
|
£14.99
|
|
|
754/20 - HEX NUT DIN 934-M6-8-A
BSD-2915011007.A693
2915011007
|
-
|
|
|
|
754/30 - WING SCREW M6x(15)55
BSD-1613480007.A339
1613480007
|
£1.75
|
£2.10
|
|
|
754/50 - CLAMPING PLATE M6
BSD-2608040014.A280
2608040014
|
-
|
|
|
|
754/60 - WING SCREW M6x20 MM
BSD-1613480008.A71
1613480008
|
£1.84
|
£2.21
|
|
|
755 - DEPTH-GAUGE SW 6x210 MM
BSD-1613001005.A33
1613001005
|
-
|
|
|
|
756 - CHUCK dia1.5-13 MM. 1/2
BSD-1608571069.A176
1608571069
|
£25.05
|
£30.06
|
|
|
756/800 - CHUCK WRENCH SG2
BSD-2607950007.A1138
2607950007
|
£6.85
|
£8.22
|
|
|
805 - POWER SUPPLY CORD EU 230V 4.15m 2 x 1.0mm H05 RN-F
BSD-1607000386.A56
1607000386
|
£22.60
|
£27.12
|
|
|
813 - NEEDLE BEARING
BSD-2600917902.A142
2600917902
|
-
|
|
|
|
816/20 - RATCHET CAP
BSD-2601322013.A184
2601322013
|
£1.84
|
£2.21
|
|
|
816/40 - CARBON-BRUSH SET
BSD-2604321905.A320
2604321905
|
£11.87
|
£14.24
|
|
|
826 - TAPPING SCREW DIN 7981-3.9x19-C-Z-ST
BSD-2912401020.A616
2912401020
|
£2.16
|
£2.59
|
|
|
838 - BEARING BRACKET
BSD-2605807915.A32
2605807915
|
-
|
|
|
|
888 - NAMEPLATE
BSD-160111A3H3.A2671
160111A3H3
|
£2.74
|
£3.29
|
|
