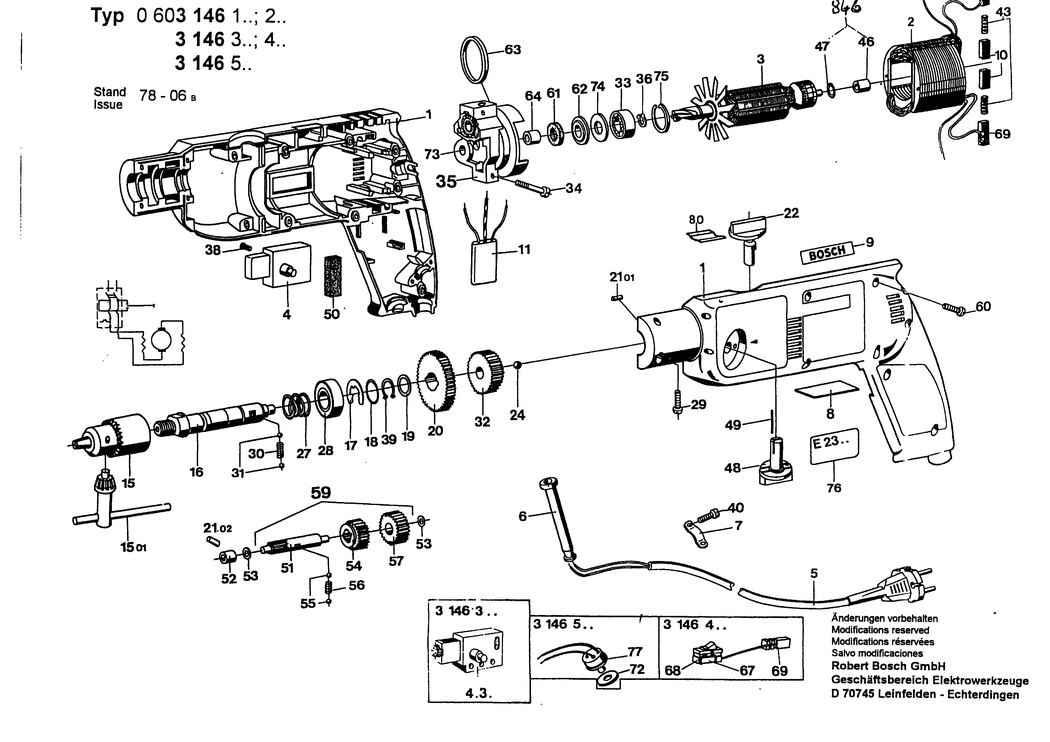

1 - HOUSING SECTION
BSD-2605104936.A6
2605104936
|
-
|
|
|
|
1 - HOUSING SECTION
BSD-2605104958.A18
2605104958
|
-
|
|
|
|
2 - POLE SHOE 220-240V
BSD-2604220347.A2
2604220347
|
-
|
|
|
|
2 - POLE SHOE 220V
BSD-2604220351.A0
2604220351
|
-
|
|
|
|
2 - POLE SHOE 220V
BSD-2604220359.A11
2604220359
|
-
|
|
|
|
3 - ARMATURE WITH FAN 220-240V
BSD-2604010493.A1
2604010493
|
-
|
|
|
|
4 - ON-OFF SWITCH
BSD-2607200060.A2
2607200060
|
-
|
|
|
|
4 - ON-OFF SWITCH
BSD-1607200056.A2
1607200056
|
-
|
|
|
|
5 - POWER SUPPLY CORD
BSD-2604460075.A10
2604460075
|
-
|
|
|
|
6 - GROMMET dia6.4-dia7.5x75 MM
BSD-1600703016.A23
1600703016
|
£1.75
|
£2.10
|
|
|
6 - GROMMET dia9.5 MM
BSD-2600703006.A183
2600703006
|
-
|
|
|
|
7 - FASTENING CLAMP
BSD-1601302014.A164
1601302014
|
£2.74
|
£3.29
|
|
|
8 - NAMEPLATE
BSD-2601105052.A12
2601105052
|
-
|
|
|
|
9 - MANUFACTURER'S NAMEPLATE
BSD-1601110013.A180
1601110013
|
-
|
|
|
|
10 - CARBON BRUSH
BSD-1604321900.A16
1604321900
|
-
|
|
|
|
11 - SUPPRESSION CAPACITOR
BSD-2607329069.A38
2607329069
|
-
|
|
|
|
15 - KEY CHUCK dia0.8-10 MM. 1/2
BSD-1608571005.A27
1608571005
|
-
|
|
|
|
15/01 - CHUCK WRENCH SG2
BSD-2607950007.A904
2607950007
|
£6.85
|
£8.22
|
|
|
16 - DRILLING SPINDLE
BSD-2603122024.A5
2603122024
|
-
|
|
|
|
17 - LOCKING WASHER 1.0 MM
BSD-2600118003.A34
2600118003
|
-
|
|
|
|
17 - LOCKING WASHER 0.8 MM
BSD-2600118002.A86
2600118002
|
£1.84
|
£2.21
|
|
|
17 - LOCKING WASHER 0.6 MM
BSD-2600118001.A151
2600118001
|
£1.75
|
£2.10
|
|
|
17 - LOCKING WASHER 0.3 MM
BSD-2600118006.A212
2600118006
|
-
|
|
|
|
18 - O-RING 15x2 MM
BSD-1900210012.A9
1900210012
|
£1.84
|
£2.21
|
|
|
19 - SHIM 1.0 MM
BSD-2600101515.A185
2600101515
|
£2.05
|
£2.46
|
|
|
20 - CYLINDRICAL GEAR Z=48
BSD-2606317014.A13
2606317014
|
-
|
|
|
|
22 - CONTROL SHAFT
BSD-2603120004.A1
2603120004
|
-
|
|
|
|
24 - BALL DIN 5401-5 G28
BSD-1903230009.A387
1903230009
|
£1.84
|
£2.21
|
|
|
27 - COMPRESSION SPRING
BSD-2604617000.A94
2604617000
|
£2.61
|
£3.13
|
|
|
28 - GROOVE BALL BEARING 6002-Z DIN 625
BSD-1900905102.A11
1900905102
|
-
|
|
|
|
29 - TAPPING SCREW DIN 7971-BZ2.9x16
BSD-2910211007.A217
2910211007
|
£1.75
|
£2.10
|
|
|
29 - TORX OVAL-HEAD SCREW 3x18
BSD-2603490018.A793
2603490018
|
£1.75
|
£2.10
|
|
|
30 - COMPRESSION SPRING
BSD-2604610007.A46
2604610007
|
-
|
|
|
|
31 - BALL DIN 5401-4 MM-III-ST
BSD-1903230007.A399
1903230007
|
£1.84
|
£2.21
|
|
|
32 - CYLINDRICAL GEAR Z=35
BSD-2606317015.A19
2606317015
|
-
|
|
|
|
33 - GROOVE BALL BEARING dia9 MM
BSD-2600905003.A27
2600905003
|
-
|
|
|
|
34 - SOCKET HEAD CAP SCREW
BSD-2603410031.A14
2603410031
|
-
|
|
|
|
35 - BEARING BRACKET
BSD-2605807902.A20
2605807902
|
-
|
|
|
|
36 - SPRING RETAINING RING DIN 471 9x1MM
BSD-2916640006.A44
2916640006
|
£1.84
|
£2.21
|
|
|
38 - SOCKET HEAD CAP SCREW M3x10 MM
BSD-2603410023.A160
2603410023
|
-
|
|
|
|
39 - RETAINING CLIP DIN 471-15x1-FSt
BSD-2916650006.A8
2916650006
|
£1.75
|
£2.10
|
|
|
40 - TAPPING SCREW DIN 7971-BZ3.9x9.5
BSD-2910211017.A102
2910211017
|
-
|
|
|
|
43 - COMPRESSION SPRING
BSD-2604610009.A55
2604610009
|
-
|
|
|
|
46 - NEEDLE BEARING
BSD-1600910012.A34
1600910012
|
£2.80
|
£3.36
|
|
|
47 - O-RING 8.0x2.5 MM
BSD-1610210014.A86
1610210014
|
-
|
|
|
|
48 - ROTARY KNOB
BSD-2603120008.A19
2603120008
|
-
|
|
|
|
49 - STRAIGHT PIN
BSD-2603101002.A16
2603101002
|
-
|
|
|
|
50 - INSULATING STRIP 33x10x6 MM
BSD-1602381001.A124
1602381001
|
-
|
|
|
|
51 - TOOTHED SHAFT Z= 9
BSD-2606309003.A7
2606309003
|
-
|
|
|
|
52 - NEEDLE-ROLLER BEARING dia6 MM
BSD-2600914010.A317
2600914010
|
£2.94
|
£3.53
|
|
|
53 - SHIM 0.3 MM
BSD-2600100570.A144
2600100570
|
£1.84
|
£2.21
|
|
|
54 - TOOTHED GEAR Z=22
BSD-2606320009.A5
2606320009
|
-
|
|
|
|
55 - BALL DIN 5401-3.5 MM-III-ST
BSD-1903230006.A246
1903230006
|
£2.27
|
£2.72
|
|
|
56 - COMPRESSION SPRING
BSD-2604611002.A5
2604611002
|
-
|
|
|
|
57 - CYLINDRICAL GEAR Z=21
BSD-2606320006.A21
2606320006
|
-
|
|
|
|
59 - TOOTHED SHAFT Z= 21/22/9
BSD-2606309900.A9
2606309900
|
-
|
|
|
|
60 - TAPPING SCREW DIN 7971-ST3.9x16-F
BSD-2910211019.A456
2910211019
|
£1.84
|
£2.21
|
|
|
61 - FELT WASHER
BSD-2600108002.A106
2600108002
|
£2.27
|
£2.72
|
|
|
62 - CUPPED WASHER
BSD-2600500002.A421
2600500002
|
£1.75
|
£2.10
|
|
|
63 - O-RING 35.0x2.0 MM
BSD-2600210026.A37
2600210026
|
£2.27
|
£2.72
|
|
|
64 - RECEPTACLE
BSD-2600400008.A747
2600400008
|
£1.75
|
£2.10
|
|
|
67 - SILICON DIODE
BSD-2607320008.A132
2607320008
|
-
|
|
|
|
68 - ON-OFF SWITCH
BSD-2607200904.A2
2607200904
|
-
|
|
|
|
69 - BRUSH HOLDER
BSD-2604337000.A10
2604337000
|
-
|
|
|
|
72 - SEALING DISK
BSD-1600109006.A23
1600109006
|
-
|
|
|
|
74 - SHIM
BSD-2600150005.A20
2600150005
|
£1.75
|
£2.10
|
|
|
75 - SPRING RETAINING RING DIN 472-24x1.2 MM
BSD-2916660008.A37
2916660008
|
£2.16
|
£2.59
|
|
|
76 - REFERENCE PLATE
BSD-2601110122.A0
2601110122
|
-
|
|
|
|
77 - THERMOSWITCH
BSD-1607202900.A8
1607202900
|
-
|
|
|
|
80 - LEAF SPRING
BSD-2601302008.A0
2601302008
|
-
|
|
|
