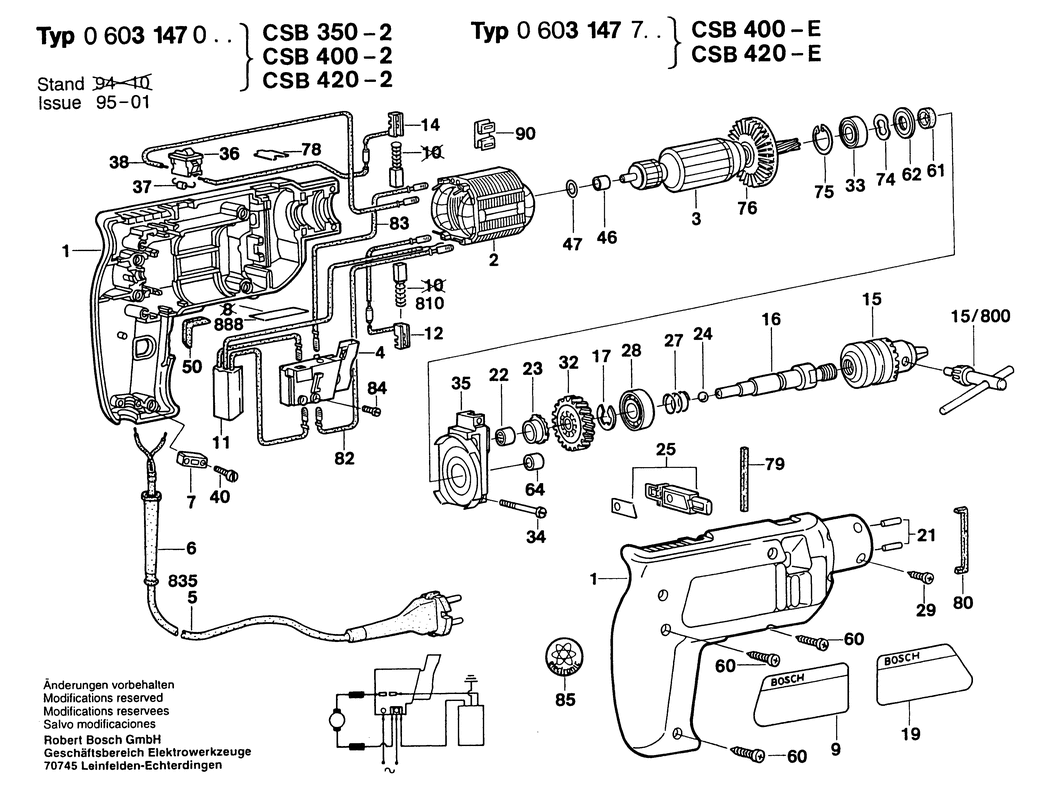

1 - HOUSING SECTION
BSD-2605104945.A2
2605104945
|
-
|
|
|
|
1 - HOUSING SECTION
BSD-2605104946.A3
2605104946
|
-
|
|
|
|
2 - FIELD 230V
BSD-2604220392.A1
2604220392
|
£23.86
|
£28.63
|
|
|
3 - ARMATURE 230V
BSD-2604010520.A4
2604010520
|
-
|
|
|
|
4 - SWITCH
BSD-2607200084.A33
2607200084
|
£10.10
|
£12.12
|
|
|
4 - SWITCH
BSD-2607200260.A44
2607200260
|
£11.30
|
£13.56
|
|
|
5 - ELEC. CABLE W/CONNECTION CH 2.65m 2 x 1.0mm H05 VV-F
BSD-2604460053.A12
2604460053
|
-
|
|
|
|
6 - GROMMET dia6.4-dia7.5x75 MM
BSD-1600703016.A220
1600703016
|
£1.75
|
£2.10
|
|
|
6 - GROMMET dia9.5 MM
BSD-2600703006.A194
2600703006
|
-
|
|
|
|
7 - CABLE CLIP
BSD-2601035001.A558
2601035001
|
£1.75
|
£2.10
|
|
|
9 - MANUFACTURER'S NAMEPLATE
BSD-2601110223.A4
2601110223
|
-
|
|
|
|
9 - MANUFACTURER'S NAMEPLATE
BSD-2601110219.A7
2601110219
|
-
|
|
|
|
9 - STICKER
BSD-2601110257.A5
2601110257
|
-
|
|
|
|
9 - MANUFACTURER'S NAMEPLATE
BSD-2601110623.A2
2601110623
|
-
|
|
|
|
11 - SUPPRESSION CAPACITOR
BSD-2607329095.A69
2607329095
|
-
|
|
|
|
12 - SUPPRESSOR BOX
BSD-2604465099.A6
2604465099
|
-
|
|
|
|
14 - SUPPRESSOR BOX
BSD-2604465024.A3
2604465024
|
-
|
|
|
|
15 - KEY CHUCK dia0.8-10 MM. 1/2
BSD-1608571005.A109
1608571005
|
-
|
|
|
|
15 - KEY CHUCK dia1.5-13 MM. 1/2
BSD-1608571055.A35
1608571055
|
-
|
|
|
|
15 - CHUCK dia1.5-13 MM. 1/2
BSD-1608571069.A19
1608571069
|
£23.86
|
£28.63
|
|
|
15/800 - CHUCK WRENCH SG2
BSD-2607950007.A1517
2607950007
|
£6.52
|
£7.83
|
|
|
16 - DRILLING SPINDLE 1/2-UNF-2
BSD-2606135000.A7
2606135000
|
-
|
|
|
|
17 - LOCKING WASHER 0.6 MM
BSD-2600118001.A9
2600118001
|
£1.75
|
£2.10
|
|
|
17 - LOCKING WASHER 0.3 MM
BSD-2600118006.A38
2600118006
|
-
|
|
|
|
17 - LOCKING WASHER 0.8 MM
BSD-2600118002.A182
2600118002
|
£1.75
|
£2.10
|
|
|
17 - LOCKING WASHER 1.0 MM
BSD-2600118003.A4
2600118003
|
-
|
|
|
|
19 - REFERENCE PLATE
BSD-2601110618.A2
2601110618
|
-
|
|
|
|
19 - REFERENCE PLATE
BSD-2601110200.A10
2601110200
|
-
|
|
|
|
19 - REFERENCE PLATE
BSD-2601110622.A2
2601110622
|
-
|
|
|
|
19 - STICKER
BSD-2601110256.A1
2601110256
|
-
|
|
|
|
21 - O-RING 28x3 MM
BSD-1900210129.A13
1900210129
|
£2.61
|
£3.13
|
|
|
22 - NEEDLE-ROLLER BEARING dia8x8 MM
BSD-2600917003.A660
2600917003
|
£2.80
|
£3.36
|
|
|
23 - LOCATING WASHER
BSD-2606490031.A13
2606490031
|
-
|
|
|
|
24 - BALL DIN 5401-5.5MM-III-ST
BSD-1903230010.A485
1903230010
|
£1.75
|
£2.10
|
|
|
25 - MODIFICATION SET
BSD-2607001039.A2
2607001039
|
-
|
|
|
|
26 - PROTECTIVE CAP
BSD-2600522026.A9
2600522026
|
-
|
|
|
|
27 - COMPRESSION SPRING
BSD-2604617000.A116
2604617000
|
£2.61
|
£3.13
|
|
|
28 - GROOVE BALL BEARING 15x32x9
BSD-1900905122.A22
1900905122
|
£10.10
|
£12.12
|
|
|
29 - TORX OVAL-HEAD SCREW 3x10
BSD-2603490017.A1124
2603490017
|
£2.16
|
£2.59
|
|
|
32 - CYLINDRICAL GEAR Z=31
BSD-2606320019.A1
2606320019
|
-
|
|
|
|
33 - GROOVE BALL BEARING dia9 MM
BSD-2600905003.A40
2600905003
|
-
|
|
|
|
34 - SOCKET HEAD CAP SCREW DIN 84-BM4x30-8.8
BSD-2910021134.A84
2910021134
|
£1.75
|
£2.10
|
|
|
35 - BEARING BRACKET
BSD-2605807903.A3
2605807903
|
-
|
|
|
|
36 - CHANGE-OVER SWITCH
BSD-2607200039.A14
2607200039
|
-
|
|
|
|
37 - SILICON DIODE
BSD-2607320008.A5
2607320008
|
-
|
|
|
|
38 - CABLE
BSD-2604448002.A17
2604448002
|
-
|
|
|
|
40 - TAPPING SCREW DIN 7971-ST3.9x16-F
BSD-2910211019.A2037
2910211019
|
£1.75
|
£2.10
|
|
|
46 - NEEDLE BEARING
BSD-2600910005.A73
2600910005
|
-
|
|
|
|
47 - O-RING 8.0x2.5 MM
BSD-1610210014.A305
1610210014
|
-
|
|
|
|
50 - DAMPING PLATE
BSD-2601022000.A603
2601022000
|
£1.75
|
£2.10
|
|
|
60 - TAPPING SCREW DIN 7981-3.9x19-C-Z-ST
BSD-2912401020.A867
2912401020
|
£2.16
|
£2.59
|
|
|
61 - FELT WASHER
BSD-2600108002.A54
2600108002
|
£2.16
|
£2.59
|
|
|
62 - CUPPED WASHER
BSD-2600500002.A354
2600500002
|
£1.75
|
£2.10
|
|
|
64 - RECEPTACLE
BSD-2600400008.A153
2600400008
|
£1.75
|
£2.10
|
|
|
74 - SHIM
BSD-2600150005.A47
2600150005
|
£1.75
|
£2.10
|
|
|
75 - SPRING RETAINING RING DIN 472-24x1.2 MM
BSD-2916660008.A641
2916660008
|
£2.16
|
£2.59
|
|
|
76 - FAN
BSD-2606610047.A16
2606610047
|
-
|
|
|
|
78 - REFERENCE PLATE
BSD-2601105060.A7
2601105060
|
-
|
|
|
|
79 - FELT STRIP 51 MM
BSD-2601005006.A26
2601005006
|
-
|
|
|
|
80 - FELT STRIP 68 MM
BSD-2601005007.A1
2601005007
|
-
|
|
|
|
82 - CONNECTING CABLE L=154 MM
BSD-2604448000.A62
2604448000
|
-
|
|
|
|
83 - CONNECTING CABLE L=184 MM
BSD-2604448001.A77
2604448001
|
£1.95
|
£2.34
|
|
|
84 - SOCKET HEAD CAP SCREW M3x6.5-4.8
BSD-2603410001.A540
2603410001
|
£1.75
|
£2.10
|
|
|
85 - STICKER
BSD-2601110041.A115
2601110041
|
-
|
|
|
|
90 - HOLDING SPRING
BSD-1619P09928.A74
1619P09928
|
£1.75
|
£2.10
|
|
|
654 - AUXILIARY HANDLE dia43 MM
BSD-2602025032.A129
2602025032
|
-
|
|
|
|
810 - CARBON-BRUSH SET
BSD-2604321904.A19
2604321904
|
£10.10
|
£12.12
|
|
|
888 - NAMEPLATE
BSD-160111A3H3.A1553
160111A3H3
|
£2.61
|
£3.13
|
|
