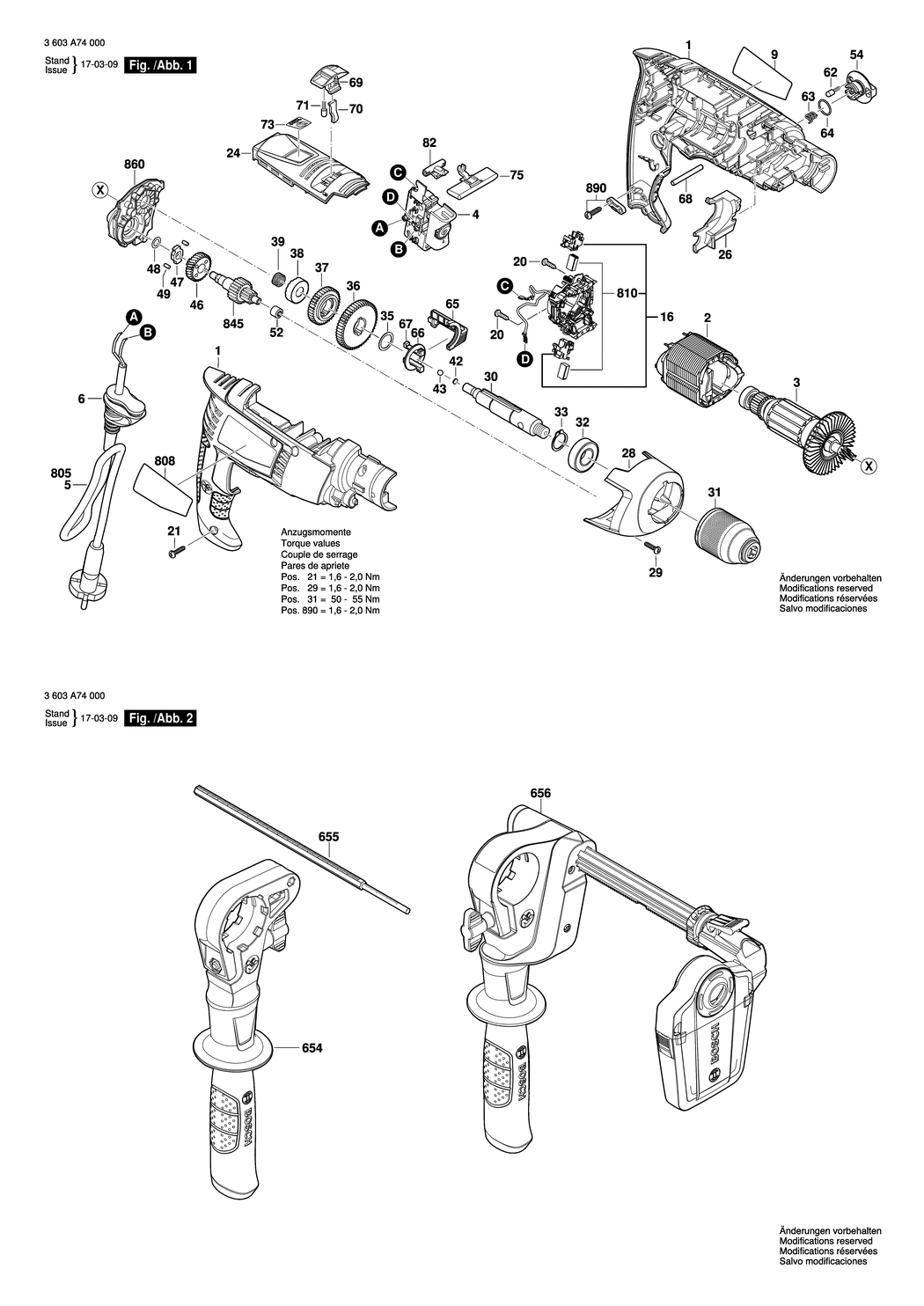

1 - HOUSING SECTION
BSD-16051082CD.A2
16051082CD
|
£21.68
|
£26.01
|
|
|
2 - FIELD 230V
BSD-2609007822.A2
2609007822
|
£21.52
|
£25.83
|
|
|
3 - ARMATURE 230V
BSD-2609007821.A0
2609007821
|
£33.74
|
£40.49
|
|
|
4 - SWITCH
BSD-160720032Z.A2
160720032Z
|
£33.74
|
£40.49
|
|
|
6 - GROMMET dia6.4-dia7.2x76 MM
BSD-2609006376.A46
2609006376
|
£1.66
|
£1.99
|
|
|
9 - MANUFACTURER'S NAMEPLATE AdvancedImpact 900
BSD-160111C0JA.A2
160111C0JA
|
£2.33
|
£2.80
|
|
|
9 - MANUFACTURER'S NAMEPLATE AdvancedImpact 9000
BSD-160111C28J.A2
160111C28J
|
£2.33
|
£2.80
|
|
|
16 - BRUSH HOLDER
BSD-1600A00B68.A2
1600A00B68
|
£14.91
|
£17.89
|
|
|
20 - TAPPING SCREW DIN 7981-ST2.2x9.5-C-H
BSD-2910611002.A273
2910611002
|
£1.66
|
£1.99
|
|
|
21 - SCREW 4x16
BSD-2603490022.A818
2603490022
|
£1.66
|
£1.99
|
|
|
24 - COVER PANEL
BSD-1600A0092N.A1
1600A0092N
|
£3.72
|
£4.47
|
|
|
26 - PLASTIC INSERT
BSD-1600A009B0.A1
1600A009B0
|
£1.66
|
£1.99
|
|
|
28 - COVER
BSD-16055002A9.A2
16055002A9
|
£14.91
|
£17.89
|
|
|
29 - SCREW 4x16
BSD-2603490022.A821
2603490022
|
£1.66
|
£1.99
|
|
|
30 - DRILLING SPINDLE
BSD-2606135130.A46
2606135130
|
£21.68
|
£26.01
|
|
|
31 - KEYLESS CHUCK
BSD-1600A00F24.A2
1600A00F24
|
£21.68
|
£26.01
|
|
|
32 - GROOVE BALL BEARING 17x35x10
BSD-1900905163.A496
1900905163
|
£11.30
|
£13.56
|
|
|
33 - SPRING RETAINING RING DIN 471 17x1 MM
BSD-2916650008.A446
2916650008
|
£1.66
|
£1.99
|
|
|
35 - SHIM 0.5 MM
BSD-2600100695.A240
2600100695
|
£1.66
|
£1.99
|
|
|
36 - CYLINDRICAL GEAR
BSD-2606317084.A13
2606317084
|
£13.12
|
£15.75
|
|
|
37 - CYLINDRICAL GEAR
BSD-2606317085.A6
2606317085
|
£10.10
|
£12.12
|
|
|
38 - CATCH DISK
BSD-1600A00RX5.A0
1600A00RX5
|
£1.95
|
£2.34
|
|
|
39 - COMPRESSION SPRING
BSD-2604616013.A103
2604616013
|
£1.95
|
£2.34
|
|
|
42 - SHIM WASHER 1.0 MM
BSD-2600000021.A8
2600000021
|
£1.66
|
£1.99
|
|
|
42 - SHIM WASHER 1.35 MM
BSD-2600000030.A124
2600000030
|
£1.66
|
£1.99
|
|
|
42 - SHIM WASHER 1.7 MM
BSD-2600000031.A10
2600000031
|
£1.66
|
£1.99
|
|
|
43 - BALL DIN 5401-5 G28
BSD-1903230009.A365
1903230009
|
£1.66
|
£1.99
|
|
|
43 - BALL DIN 5401-5.5MM-III-ST
BSD-1903230010.A452
1903230010
|
£1.66
|
£1.99
|
|
|
43 - BALL 5.25 MM
BSD-2603230007.A26
2603230007
|
£1.66
|
£1.99
|
|
|
46 - CARRIER
BSD-160312304U.A10
160312304U
|
£13.12
|
£15.75
|
|
|
47 - ECCENTRIC
BSD-2602210043.A26
2602210043
|
£2.80
|
£3.36
|
|
|
48 - SHIM 0.2 MM
BSD-1600100632.A110
1600100632
|
£1.66
|
£1.99
|
|
|
49 - ROLLER BODY
BSD-2609007376.A11
2609007376
|
£1.66
|
£1.99
|
|
|
52 - NEEDLE-ROLLER BEARING dia6 MM
BSD-2600914010.A830
2600914010
|
£2.80
|
£3.36
|
|
|
54 - ROTARY KNOB
BSD-1600A0092D.A2
1600A0092D
|
£2.33
|
£2.80
|
|
|
62 - RATCHET CAP
BSD-2600590006.A989
2600590006
|
£1.66
|
£1.99
|
|
|
63 - TORSION SPRING
BSD-2609004109.A8
2609004109
|
£1.66
|
£1.99
|
|
|
64 - O-RING 14.0x1.3 MM
BSD-3600210014.A18
3600210014
|
£1.66
|
£1.99
|
|
|
65 - FORK LEVER
BSD-2609002961.A9
2609002961
|
£1.95
|
£2.34
|
|
|
66 - RETAINING WASHER
BSD-2600101671.A293
2600101671
|
£1.66
|
£1.99
|
|
|
67 - FLAT KEY
BSD-2602300032.A104
2602300032
|
£3.72
|
£4.47
|
|
|
68 - ROLLER BODY
BSD-1600A00997.A2
1600A00997
|
£1.66
|
£1.99
|
|
|
69 - CHANGEOVER LEVER
BSD-1600A0092G.A2
1600A0092G
|
£1.66
|
£1.99
|
|
|
70 - GUIDING PLATE
BSD-2601990044.A20
2601990044
|
£1.66
|
£1.99
|
|
|
71 - RATCHET CAP
BSD-2600590006.A990
2600590006
|
£1.66
|
£1.99
|
|
|
73 - REFERENCE PLATE
BSD-160111C0TV.A1
160111C0TV
|
£2.33
|
£2.80
|
|
|
75 - CHANGE-OVER SWITCH
BSD-1600A0092H.A0
1600A0092H
|
£3.72
|
£4.47
|
|
|
82 - RETAINER
BSD-1600A00941.A0
1600A00941
|
£2.33
|
£2.80
|
|
|
654 - AUXILIARY HANDLE
BSD-160202508L.A0
160202508L
|
£13.12
|
£15.75
|
|
|
655 - DEPTH-GAUGE
BSD-2609005615.A4
2609005615
|
£4.26
|
£5.11
|
|
|
656 - DRILL ASSISTANT
BSD-1600A00AR9.A1
1600A00AR9
|
-
|
|
|
|
805 - POWER SUPPLY CORD EU 2.65m 2 x 1.0mm H05 RN-F
BSD-1607000388.A106
1607000388
|
£12.04
|
£14.45
|
|
|
808 - NAMEPLATE
BSD-160111A516.A0
160111A516
|
£2.33
|
£2.80
|
|
|
810 - CARBON-BRUSH SET
BSD-1607014184.A0
1607014184
|
£8.67
|
£10.41
|
|
|
845 - TRANSMISSION
BSD-2606309940.A9
2606309940
|
£21.52
|
£25.83
|
|
|
860 - BEARING BRACKET
BSD-1600A0092E.A0
1600A0092E
|
£40.80
|
£48.96
|
|
|
890 - FASTENING PARTS KIT
BSD-2607001305.A37
2607001305
|
£4.26
|
£5.11
|
|
