Bosch PHG 630-2 LCE / 0603290732 / CH 230 Volt Spare Parts

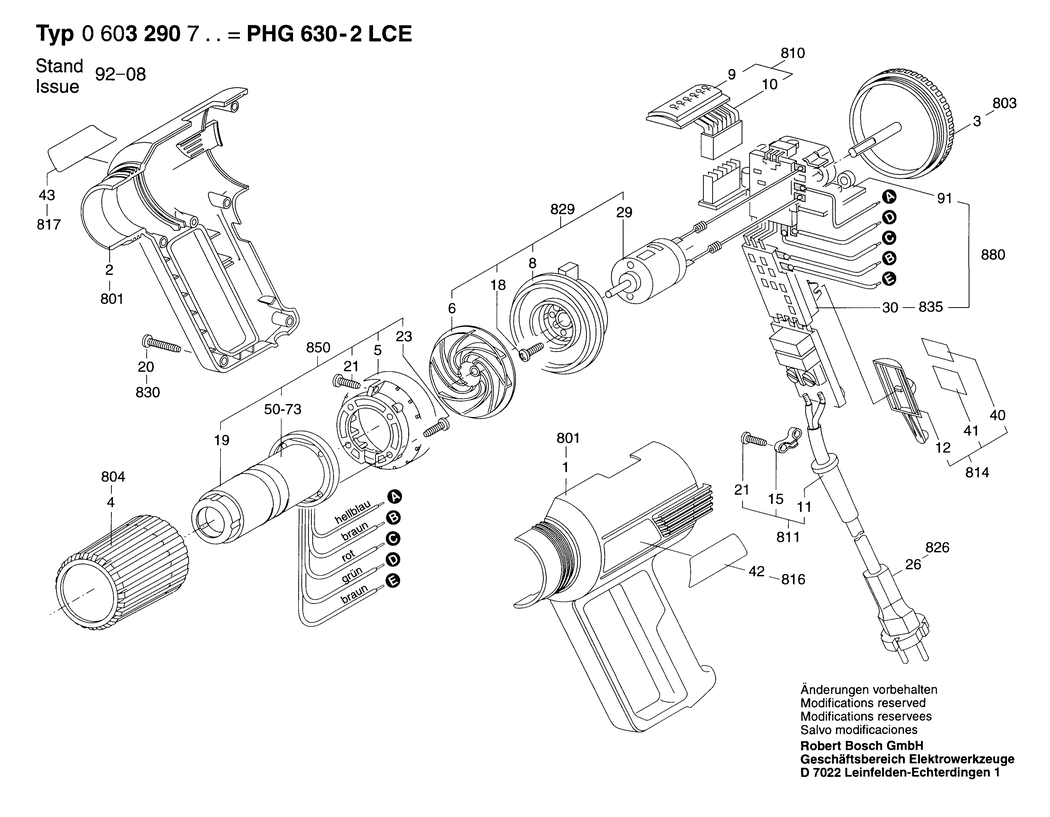

An exploded drawing and listing for the Bosch PHG 630-2 LCE / 0603290732 / CH 230 Volt

	Ex VAT	Inc VAT
801 - HOUSING SECTION BSD-1609202619.A1 1609202619	£33.74	£40.49
803 - THUMBWHEEL BSD-1609202603.A5 1609202603	-
804 - PROTECTIVE TUBE BSD-1609202604.A6 1609202604	£11.87	£14.24
810 - LIGHT CONDUCTOR BSD-1609202605.A4 1609202605	£5.57	£6.68
811 - GROMMET BSD-1609202606.A6 1609202606	£2.74	£3.29
814 - SWITCH BUTTON BSD-1609202607.A9 1609202607	-
816 - MANUFACTURER'S NAMEPLATE BSD-1601118064.A1 1601118064	£2.94	£3.53
817 - NAMEPLATE BSD-1601118087.A0 1601118087	-
826 - POWER SUPPLY CORD BSD-1604460104.A0 1604460104	-
829 - DC MOTOR 115-240V BSD-1609202611.A16 1609202611	£28.59	£34.31
830 - TAPPING SCREW DIN 7981-ST2.9x16-F-H BSD-2910615407.A28 2910615407	£1.75	£2.10
835 - ON-OFF SWITCH BSD-1609202612.A1 1609202612	£15.65	£18.78
850 - CYLINDRICAL HEATING ELEM 230V BSD-1609202613.A6 1609202613	£62.51	£75.01
880 - CONNECTING BLOCK 230-240V BSD-1609202688.A2 1609202688	-

Attribute Name	Value
Brand	Bosch
