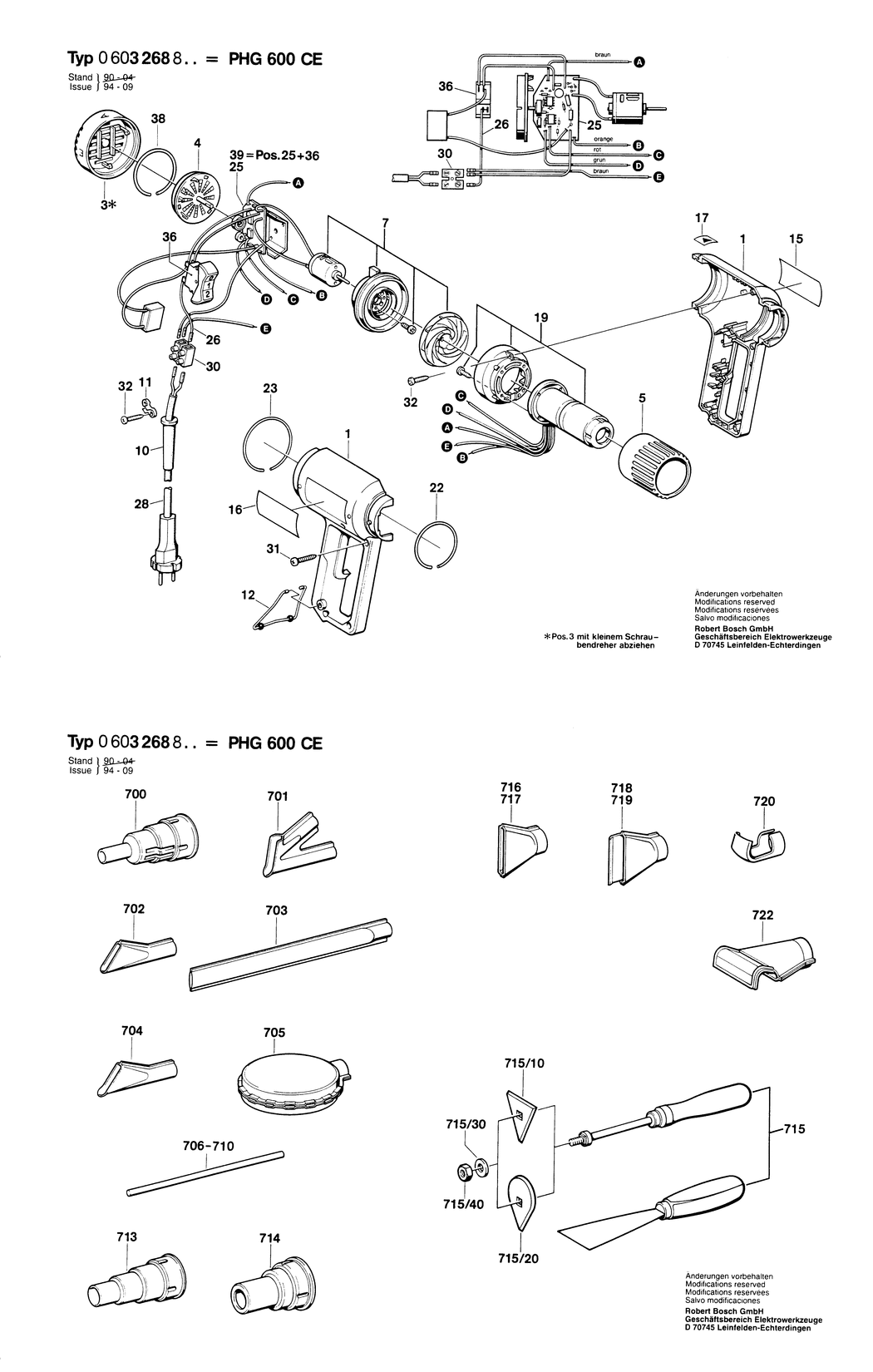

1 - MOTOR HOUSING
BSD-1609201481.A11
1609201481
|
-
|
|
|
|
3 - SEALING CAP
BSD-1609201571.A5
1609201571
|
-
|
|
|
|
4 - SLOTTED DISC
BSD-1609201483.A13
1609201483
|
-
|
|
|
|
5 - PROTECTIVE TUBE
BSD-1609201484.A1
1609201484
|
£10.10
|
£12.12
|
|
|
7 - DC MOTOR 220V
BSD-1609202256.A2
1609202256
|
-
|
|
|
|
10 - GROMMET
BSD-1609202793.A25
1609202793
|
£2.33
|
£2.80
|
|
|
11 - FASTENING CLAMP
BSD-1609201487.A24
1609201487
|
-
|
|
|
|
12 - TRANSPORT BRACKET
BSD-1609202794.A2
1609202794
|
£2.52
|
£3.02
|
|
|
15 - MANUFACTURER'S NAMEPLATE
BSD-1601110585.A2
1601110585
|
-
|
|
|
|
16 - NAMEPLATE
BSD-1601110586.A0
1601110586
|
-
|
|
|
|
17 - STICKER
BSD-1601110369.A6
1601110369
|
-
|
|
|
|
19 - CYLINDRICAL HEATING ELEM 230-240V
BSD-1609203100.A4
1609203100
|
£68.42
|
£82.10
|
|
|
22 - RETAINING RING CA.dia2.3xdia47 MM
BSD-1609201490.A17
1609201490
|
£1.95
|
£2.34
|
|
|
23 - RETAINING RING CA.dia2.5xdia62 MM
BSD-1609201491.A3
1609201491
|
-
|
|
|
|
25 - PRINTED-BOARD ASSEMBLY 220V
BSD-1609202257.A0
1609202257
|
-
|
|
|
|
26 - CABLE
BSD-1609201492.A23
1609201492
|
-
|
|
|
|
28 - POWER SUPPLY CORD
BSD-1609201493.A0
1609201493
|
-
|
|
|
|
30 - CONNECTING TERMINAL
BSD-1609390042.A47
1609390042
|
£3.34
|
£4.01
|
|
|
31 - TAPPING SCREW DIN 7983-B2.9x16
BSD-2910615507.A0
2910615507
|
£1.32
|
£1.58
|
|
|
32 - TAPPING SCREW DIN 7981-ST 2.9x13-F-H
BSD-2910614406.A27
2910614406
|
£1.66
|
£1.99
|
|
|
36 - ON-OFF SWITCH
BSD-1609201500.A5
1609201500
|
£11.30
|
£13.56
|
|
|
38 - CLAMPING RING dia1.5xdia47 MM
BSD-1609201723.A10
1609201723
|
-
|
|
|
|
39 - PRINTED-BOARD ASSEMBLY 220V
BSD-1609202257.A1
1609202257
|
-
|
|
|
|
700 - REDUCTION NOZZLE dia 22/9 MM
BSD-1609201797.A0
1609201797
|
£10.38
|
£12.46
|
|
|
701 - WELDING NOZZLE dia 9 MM
BSD-1609201798.A7
1609201798
|
£17.44
|
£20.93
|
|
|
702 - FLAT SUCTION NOZZLE dia 9 MM
BSD-1609201799.A0
1609201799
|
£10.38
|
£12.46
|
|
|
703 - CUTTING NOZZLE dia 9 MM
BSD-1609201800.A7
1609201800
|
£27.79
|
£33.35
|
|
|
704 - WELDING NOZZLE dia 9 MM
BSD-1609201801.A0
1609201801
|
£24.94
|
£29.93
|
|
|
705 - NOZZLE
BSD-1609201802.A7
1609201802
|
-
|
|
|
|
706 - WELDING ROD dia 4 MM
BSD-1609201807.A0
1609201807
|
£27.17
|
£32.60
|
|
|
707 - WELDING ROD dia 4 MM
BSD-1609201808.A7
1609201808
|
£27.17
|
£32.60
|
|
|
708 - WELDING ROD dia 4 MM
BSD-1609201809.A0
1609201809
|
£11.34
|
£13.61
|
|
|
709 - WELDING ROD dia 4 MM
BSD-1609201810.A7
1609201810
|
-
|
|
|
|
710 - WELDING ROD dia 4 MM
BSD-1609201811.A0
1609201811
|
-
|
|
|
|
711 - SHRINKABLE TUBE 2.4-4.8 MM
BSD-1609201812.A7
1609201812
|
£9.49
|
£11.39
|
|
|
712 - SHRINKABLE TUBE 4.8-9.5 MM
BSD-1609201813.A0
1609201813
|
£9.98
|
£11.98
|
|
|
713 - REDUCTION SLEEVE dia22/dia14 MM
BSD-1609201647.A5
1609201647
|
£8.02
|
£9.63
|
|
|
714 - REDUCTION SLEEVE dia 22/20 MM
BSD-1609201648.A20
1609201648
|
£6.99
|
£8.39
|
|
|
715 - PARTS SET 75 MM
BSD-1609390450.A25
1609390450
|
-
|
|
|
|
715/10 - BLADE
BSD-1609201745.A20
1609201745
|
-
|
|
|
|
715/20 - SCRAPER
BSD-1609201746.A10
1609201746
|
-
|
|
|
|
715/30 - PLAIN WASHER 8.4 DIN 433-ST
BSD-2916011015.A68
2916011015
|
£1.66
|
£1.99
|
|
|
715/40 - HEX NUT DIN 934-M8-8-A
BSD-2915011009.A66
2915011009
|
£1.66
|
£1.99
|
|
|
716 - WIDE ANGLE NOZZLE 75 MM
BSD-1609390451.A5
1609390451
|
£10.49
|
£12.59
|
|
|
717 - FLAT SUCTION NOZZLE 50 MM
BSD-1609201795.A15
1609201795
|
£12.24
|
£14.69
|
|
|
718 - FLAT-SPRAY NOZZLE 75 MM
BSD-1609390452.A25
1609390452
|
£8.47
|
£10.16
|
|
|
719 - FLAT-SPRAY NOZZLE 50 MM
BSD-1609201796.A7
1609201796
|
£12.24
|
£14.69
|
|
|
720 - CYLINDRICAL-SPRAY NOZZLE
BSD-1609390453.A5
1609390453
|
£8.74
|
£10.49
|
|
|
721 - EXTENSION CABLE
BSD-1609201752.A5
1609201752
|
-
|
|
|
|
722 - ANGULAR JET NOZZLE
BSD-1609201751.A16
1609201751
|
£12.24
|
£14.69
|
|
