Bosch PHG 500-2 / 0603290142 / GB 230 Volt Spare Parts

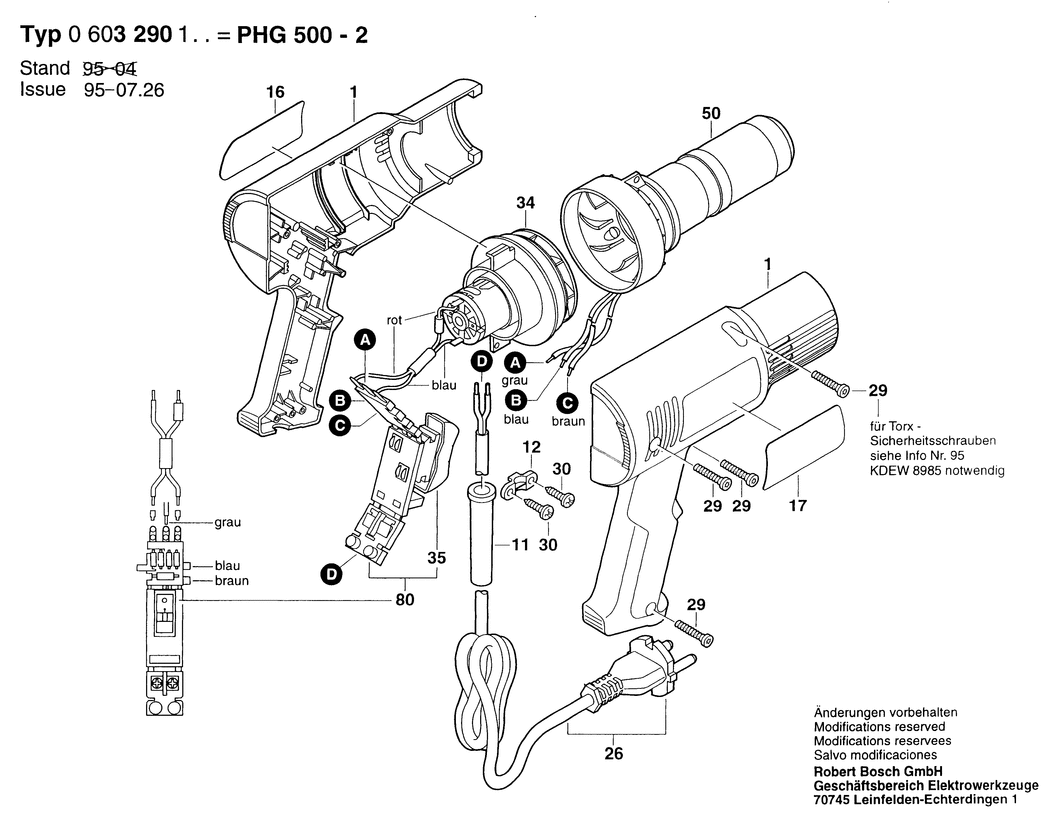

An exploded drawing and listing for the Bosch PHG 500-2 / 0603290142 / GB 230 Volt

	Ex VAT	Inc VAT
1 - HOUSING SECTION BSD-1609203485.A3 1609203485	-
11 - GROMMET BSD-1609202793.A34 1609202793	£2.61	£3.13
12 - FASTENING CLAMP BSD-1609203102.A17 1609203102	£1.75	£2.10
16 - MANUFACTURER'S NAMEPLATE BSD-1601118523.A0 1601118523	-
17 - NAMEPLATE BSD-1601118525.A0 1601118525	-
26 - POWER SUPPLY CORD BSD-1609203103.A4 1609203103	£33.74	£40.49
29 - TAPPING SCREW BZ 2.9x16. SW I-TORX T10 BSD-1609203349.A3 1609203349	-
30 - TAPPING SCREW DIN 7981-ST 2.9x13-F-H BSD-2910614406.A34 2910614406	£1.75	£2.10
34 - DC MOTOR 115-240V BSD-1609201572.A23 1609201572	£16.41	£19.69
35 - ON-OFF SWITCH BSD-1609202799.A4 1609202799	-
50 - CYLINDRICAL HEATING ELEM 240V BSD-1609203575.A0 1609203575	-
80 - CONNECTING BLOCK 100-240V BSD-1609203487.A2 1609203487	£18.96	£22.75
753 - TOOL CASE BSD-2605438391.A7 2605438391	-
