Bosch PKP 15 E / 0603264042 / GB 240 Volt Spare Parts

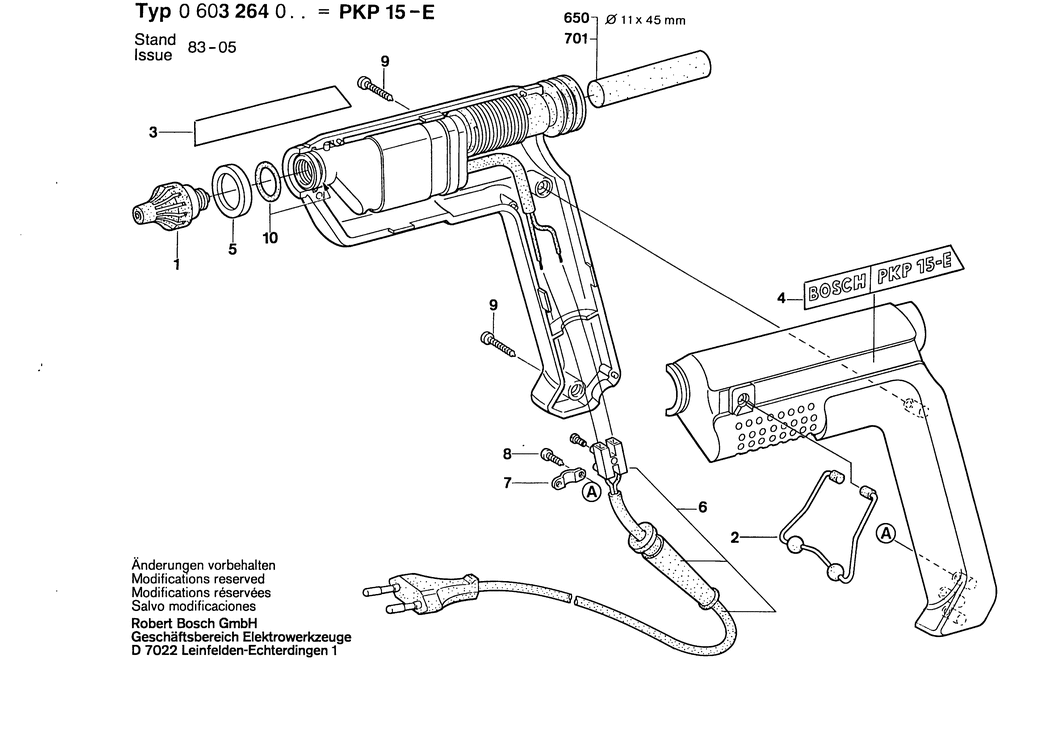

An exploded drawing and listing for the Bosch PKP 15 E / 0603264042 / GB 240 Volt

	Ex VAT	Inc VAT
1 - NOZZLE BODY BSD-1609201241.A8 1609201241	£11.30	£13.56
2 - TRANSPORT BRACKET BSD-1609201242.A4 1609201242	-
3 - NAMEPLATE BSD-1601110204.A0 1601110204	-
4 - STICKER BSD-1601110202.A1 1601110202	-
5 - CLAMPING SLEEVE BSD-1609201243.A5 1609201243	£1.75	£2.10
6 - CABLE BSD-1609201244.A2 1609201244	-
7 - FASTENING CLAMP BSD-1609201245.A3 1609201245	-
8 - TAPPING SCREW DIN 7971-BZ2.9x13 BSD-2910211006.A377 2910211006	£1.75	£2.10
9 - TAPPING SCREW DIN 7971-BZ2.9x16 BSD-2910211007.A157 2910211007	£1.75	£2.10
10 - O-RING BSD-1609201246.A1 1609201246	-
701 - THERMOPLASTIC ADHESIVE 125 G. dia 11x45 MM BSD-1609201217.A2 1609201217	-
702 - THERMOPLASTIC ADHESIVE 500 G. dia 11x45 MM BSD-1609201218.A4 1609201218	-
703 - THERMOPLASTIC ADHESIVE 125 G. dia 11x45 MM BSD-1609201219.A2 1609201219	£3.75	£4.50
704 - THERMOPLASTIC ADHESIVE 500 G. dia 11x45 MM BSD-1609201220.A4 1609201220	£13.65	£16.38
705 - THERMOPLASTIC ADHESIVE 125 G. dia 11x45 MM BSD-1609201221.A2 1609201221	£3.39	£4.07

Attribute Name	Value
Brand	Bosch
