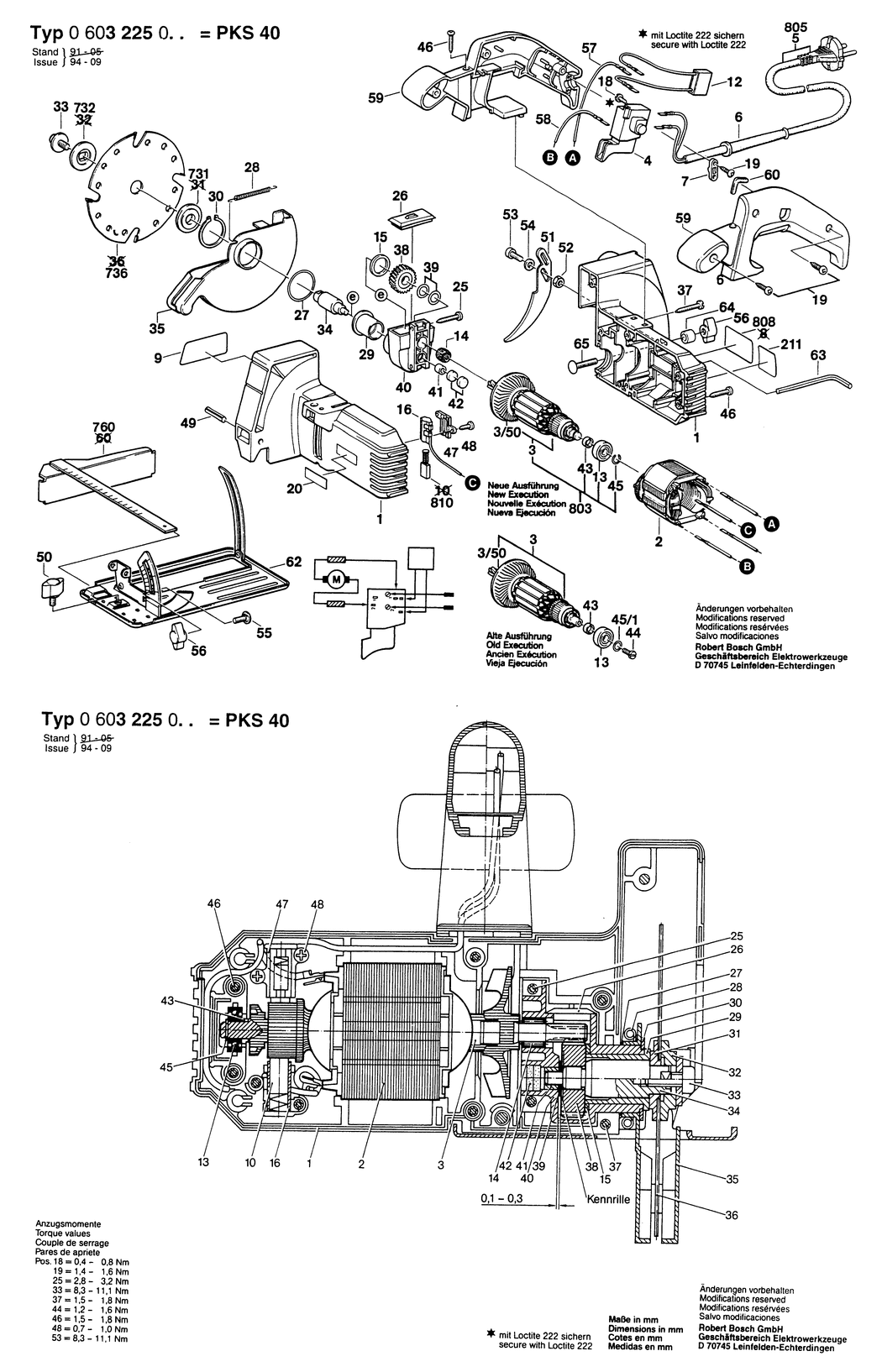

1 - HOUSING SECTION
BSD-2605190008.A3
2605190008
|
-
|
|
|
|
2 - FIELD 230V
BSD-2604220461.A6
2604220461
|
-
|
|
|
|
3/50 - FAN
BSD-2606610050.A24
2606610050
|
-
|
|
|
|
4 - SWITCH
BSD-2607200367.A10
2607200367
|
£7.78
|
£9.33
|
|
|
5 - POWER SUPPLY CORD I / BR 2.65m 2 x 1.0mm H05 VV-F
BSD-2604460282.A1
2604460282
|
£16.41
|
£19.69
|
|
|
6 - GROMMET dia8.3-dia9.4x95 MM
BSD-2600703011.A391
2600703011
|
£2.80
|
£3.36
|
|
|
6 - GROMMET dia6.5-dia6.9x95 MM
BSD-2600703012.A1023
2600703012
|
£2.80
|
£3.36
|
|
|
7 - CABLE CLIP
BSD-2601035001.A659
2601035001
|
£1.75
|
£2.10
|
|
|
9 - STICKER
BSD-2601110667.A4
2601110667
|
-
|
|
|
|
12 - SUPPRESSION FILTER
BSD-1607328028.A651
1607328028
|
£5.30
|
£6.36
|
|
|
13 - BALL BEARING 7x19x6
BSD-2600905032.A11
2600905032
|
£5.30
|
£6.36
|
|
|
14 - NEEDLE BEARING
BSD-2600917001.A7
2600917001
|
-
|
|
|
|
15 - SUPPORTING DISC
BSD-2600102019.A6
2600102019
|
-
|
|
|
|
16 - SUPPRESSION FILTER
BSD-2604465054.A13
2604465054
|
-
|
|
|
|
18 - SOCKET HEAD CAP SCREW M3x6.5-4.8
BSD-2603410001.A587
2603410001
|
£1.75
|
£2.10
|
|
|
19 - TAPPING SCREW DIN7981-ST3.9x16-C-Z
BSD-2912401019.A55
2912401019
|
£1.75
|
£2.10
|
|
|
20 - MANUFACTURER'S NAMEPLATE
BSD-2601110601.A51
2601110601
|
-
|
|
|
|
25 - TORX OVAL-HEAD SCREW 4x30
BSD-2603490025.A138
2603490025
|
£1.75
|
£2.10
|
|
|
26 - GEAR COVER
BSD-2605500082.A5
2605500082
|
-
|
|
|
|
27 - SHIM 0.2 MM
BSD-2600102017.A7
2600102017
|
-
|
|
|
|
27 - SHIM 0.5 MM
BSD-2600102018.A2
2600102018
|
-
|
|
|
|
28 - EXTENSION SPRING
BSD-1604650010.A63
1604650010
|
£1.75
|
£2.10
|
|
|
29 - SINTERED-METAL BUSHING
BSD-2600328002.A7
2600328002
|
-
|
|
|
|
30 - SPRING RETAINING RING DIN 471-26x1.2-FSt
BSD-2916650015.A4
2916650015
|
-
|
|
|
|
33 - HEX SOCKET HEAD CAP SCREW M6x14 MM
BSD-1603414007.A238
1603414007
|
£2.29
|
£2.75
|
|
|
34 - DRIVE SHAFT dia 16. M6 MM
BSD-2603124031.A6
2603124031
|
-
|
|
|
|
35 - PIVOTING BLADE GUARD
BSD-2605510009.A3
2605510009
|
-
|
|
|
|
37 - TAPPING SCREW DIN 7981-ST3.9x25-C-Z
BSD-2912401022.A142
2912401022
|
£1.75
|
£2.10
|
|
|
38 - CYLINDRICAL GEAR Z=31
BSD-2606320037.A3
2606320037
|
-
|
|
|
|
39 - SHIM 0.5 MM
BSD-2600100628.A165
2600100628
|
£1.75
|
£2.10
|
|
|
39 - SHIM 0.3 MM
BSD-2600100627.A107
2600100627
|
-
|
|
|
|
39 - SHIM 0.2 MM
BSD-2600100626.A129
2600100626
|
-
|
|
|
|
40 - GEAR HOUSING
BSD-2605806389.A2
2605806389
|
-
|
|
|
|
41 - SINTERED-METAL BUSHING J6G7x10r6x8DIN1850
BSD-1900301008.A12
1900301008
|
£2.61
|
£3.13
|
|
|
42 - LUBRICATING FELT dia10x3 MM
BSD-1600005001.A3
1600005001
|
-
|
|
|
|
43 - SPACER RING
BSD-2600200026.A1
2600200026
|
-
|
|
|
|
44 - PAN HEAD SCREW DIN 85-AM4x8-4.8
BSD-2910091118.A429
2910091118
|
£1.75
|
£2.10
|
|
|
45 - RETAINING RING DIN 7993-A7
BSD-2916540004.A6
2916540004
|
£1.75
|
£2.10
|
|
|
45 - PLAIN WASHER 4.3 DIN 433-ST
BSD-2916011009.A26
2916011009
|
-
|
|
|
|
46 - TAPPING SCREW DIN 7981-3.9x19-C-Z-ST
BSD-2912401020.A860
2912401020
|
£2.16
|
£2.59
|
|
|
47 - BRUSH PLATE
BSD-2601015054.A29
2601015054
|
-
|
|
|
|
48 - TAPPING SCREW DIN7981-ST2.9x13-C-Z
BSD-2912401006.A13
2912401006
|
£1.75
|
£2.10
|
|
|
49 - SLOTTED SPRING PIN DIN 7346-6x32
BSD-2917780156.A5
2917780156
|
-
|
|
|
|
50 - WING SCREW M6
BSD-1603480018.A54
1603480018
|
£2.16
|
£2.59
|
|
|
51 - RIVING KNIFE
BSD-2600025004.A7
2600025004
|
-
|
|
|
|
52 - HEX NUT DIN 934-M6-8-A
BSD-2915011007.A1317
2915011007
|
-
|
|
|
|
53 - HEX SOCKET HEAD CAP SCREW DIN 912-M6x15-8.8
BSD-2910141196.A36
2910141196
|
-
|
|
|
|
54 - PLAIN WASHER DIN 433-6.4-ST 50
BSD-2916011013.A104
2916011013
|
£1.75
|
£2.10
|
|
|
55 - ROUND-HEAD BOLT M6x15 DIN 603
BSD-2910281196.A245
2910281196
|
-
|
|
|
|
56 - WING NUT M6
BSD-1603339006.A71
1603339006
|
£2.52
|
£3.02
|
|
|
57 - CONNECTING CABLE L=410 MM
BSD-1604438018.A54
1604438018
|
£1.75
|
£2.10
|
|
|
58 - CABLE L=233 MM
BSD-1614431010.A129
1614431010
|
£3.72
|
£4.47
|
|
|
59 - HANDLE
BSD-2605133004.A5
2605133004
|
-
|
|
|
|
62 - BASE PLATE
BSD-2608000024.A3
2608000024
|
-
|
|
|
|
63 - OFFSET SCREWDRIVER DIN 911-SW5
BSD-1907950006.A327
1907950006
|
£4.26
|
£5.11
|
|
|
64 - SPACER BUSHING
BSD-1600309010.A23
1600309010
|
£2.61
|
£3.13
|
|
|
65 - ROUND-HEAD BOLT DIN 603-M6x25
BSD-2910281203.A83
2910281203
|
£2.61
|
£3.13
|
|
|
701 - DUST BAG
BSD-1605411028.A18
1605411028
|
£15.74
|
£18.89
|
|
|
702 - FITTING dia 25x35 MM
BSD-1600499005.A82
1600499005
|
£3.49
|
£4.19
|
|
|
702 - SUCTION PIPE dia 49/35 MM
BSD-1609200976.A151
1609200976
|
£3.61
|
£4.33
|
|
|
731 - CONICAL SPRING WASHER dia 12x16x33 MM
BSD-1605703083.A1
1605703083
|
-
|
|
|
|
732 - CONICAL SPRING WASHER dia 12x33 MM. SW22
BSD-1605703082.A13
1605703082
|
-
|
|
|
|
760 - PARALLEL-GUIDE
BSD-2608005036.A87
2608005036
|
£8.67
|
£10.41
|
|
|
803 - ARMATURE WITH FAN 220-230V
BSD-1604010646.A0
1604010646
|
-
|
|
|
|
808 - NAMEPLATE
BSD-160111A3H3.A1442
160111A3H3
|
£2.61
|
£3.13
|
|
|
810 - CARBON-BRUSH SET
BSD-2604321905.A621
2604321905
|
£11.30
|
£13.56
|
|
|
840 - GEAR HOUSING
BSD-2607033000.A4
2607033000
|
-
|
|
|
